Bobcat
/
CT445
/

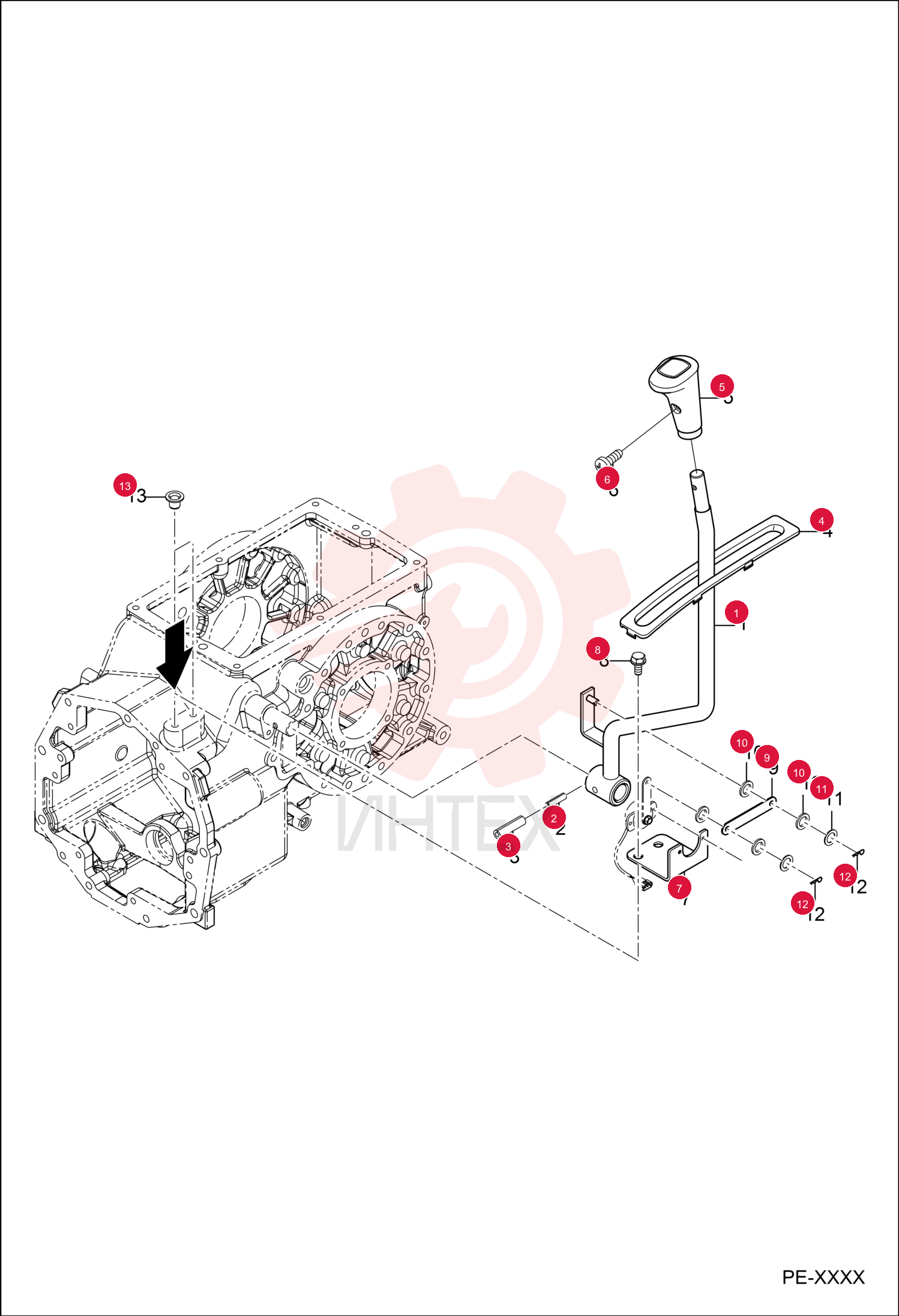

LEVER, AUX SPEED 7003419

LEVER, AUX SPEED 7003419

LEVER, AUX SPEED 7003419

1 7003419

  • 7003419 - LEVER
  • AUX SPEED
  • Was 7003101

2 7000217

  • 7000217 - PIN
  • SPRING

3 6697490

  • 6697490 - PIN SPRING

4 7003417

  • 7003417 - COVER

5 7002208

  • 7002208 - HANDLE
  • GRIP

6 7002644

  • 7002644 - SCREW

7 7002420

  • 7002420 - BRACKET
  • SWITCH

8 7002485

  • 7002485 - BOLT

9 7002165

  • 7002165 - ARM
  • FEEDBACK

10 6696902

  • 6696902 - WASHER
  • PLAIN

11 6694078

  • 6694078 - WASHER PLAIN

12 7002384

  • 7002384 - PIN
  • SNAP

13 6696447

  • 6696447 - PLUG
