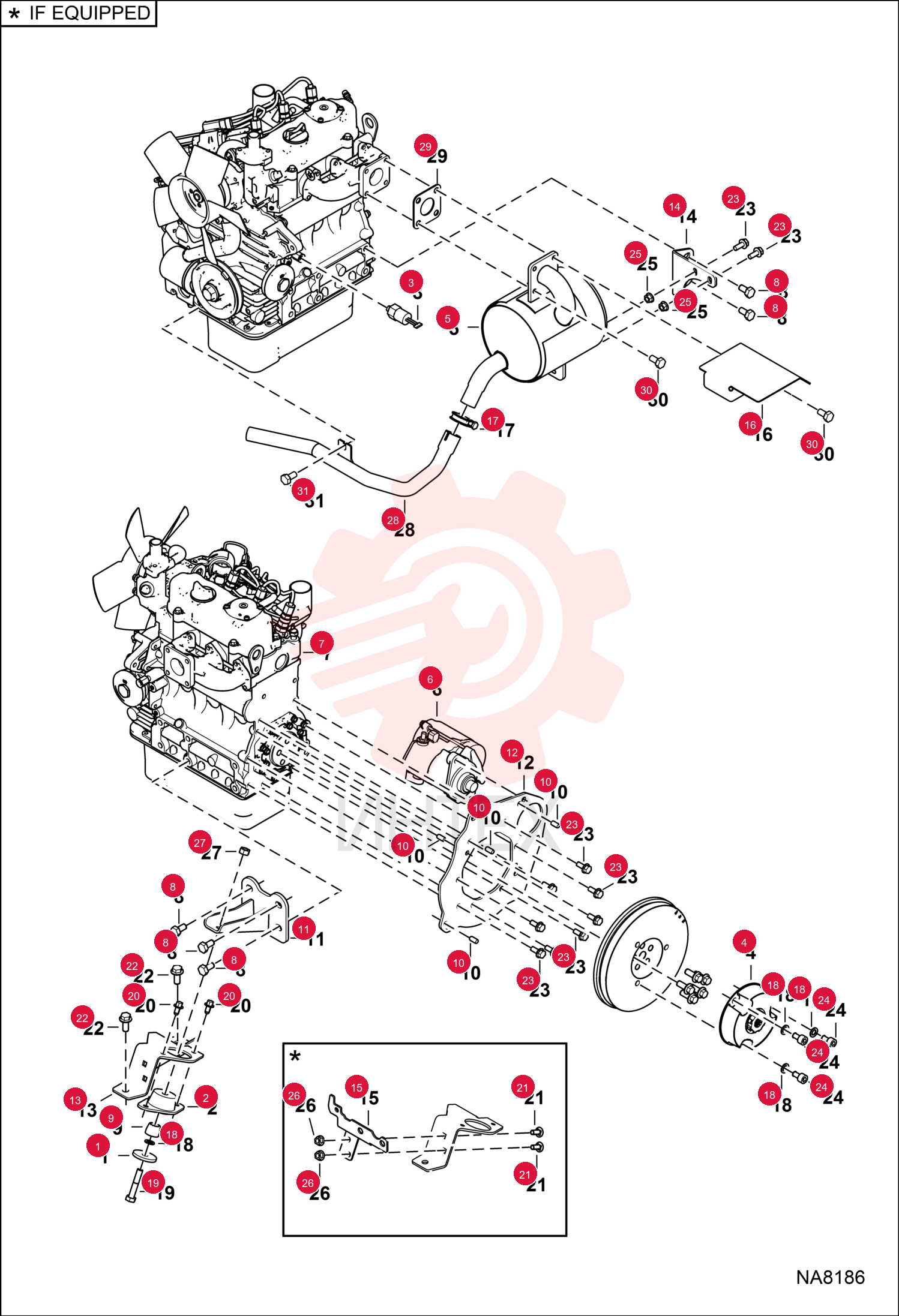

WASHER 872229 (4)

WASHER 872229 (4)

WASHER 872229 (4)

1 872229

  • 872229 - WASHER

2 6653764

  • 6653764 - MOUNT

3 6676053

  • 6676053 - SWITCH

4 6691068

  • 6691068 - COUPLER PUMP

5 6691283

  • 6691283 - MUFFLER SPARK ARSR

6 7241677

  • 7241677 - MUFFLER
  • if equipped

7 6691621

  • 6691621 - STARTER

8 6733378

  • 6733378 - SCREW FL THD CAP

9 6804522

  • 6804522 - SPACER

10 7101341

  • 7101341 - PIN

11 7116317

  • 7116317 - MOUNT ASSY
  • ENGINE
  • Was 71163117

12 7133178

  • 7133178 - BASE HOUSING

13 7134687

  • 7134687 - BRACKET ENGINE

14 7135293

  • 7135293 - SUPPORT MUFFLER

15 7144187

  • 7144187 - MOUNT VALVE
  • if equipped

16 7148327

  • 7148327 - SHIELD

17 7152905

  • 7152905 - CLAMP EXHAUST

18 15EM100

  • 15EM100 - WASHER

19 1CM1055

  • 1CM1055 - BOLT

20 26GM8016

  • 26GM8016 - SCREW SELF TAPPING

21 28CM820

  • 28CM820 - BOLT CARRIAGE 8.8
  • if equipped

22 29CM1025

  • 29CM1025 - SCREW FLGD HEX CAP
  • - Was 29CM1020

23 29CM820

  • 29CM820 - SCREW FLNGE HEX CAP

24 3GM1016

  • 3GM1016 - SCREW HEX SOCKT 12.9

25 43DM8

  • 43DM8 - NUT FLANGED HEX

26 51DM8

  • 51DM8 - NUT HX THDLK PREAPPL
  • if equipped

27 53DM10

  • 53DM10 - NUT HX THDLK PREAPPL

28 6693359

  • 6693359 - PIPE TAIL

29 6960259

  • 6960259 - SEAL

30 4CM822

  • 4CM822 - BOLT

31 6657414

  • 6657414 - BOLT
