E14
/
KIT, AUXILIARY HYDRAULICS 7117160

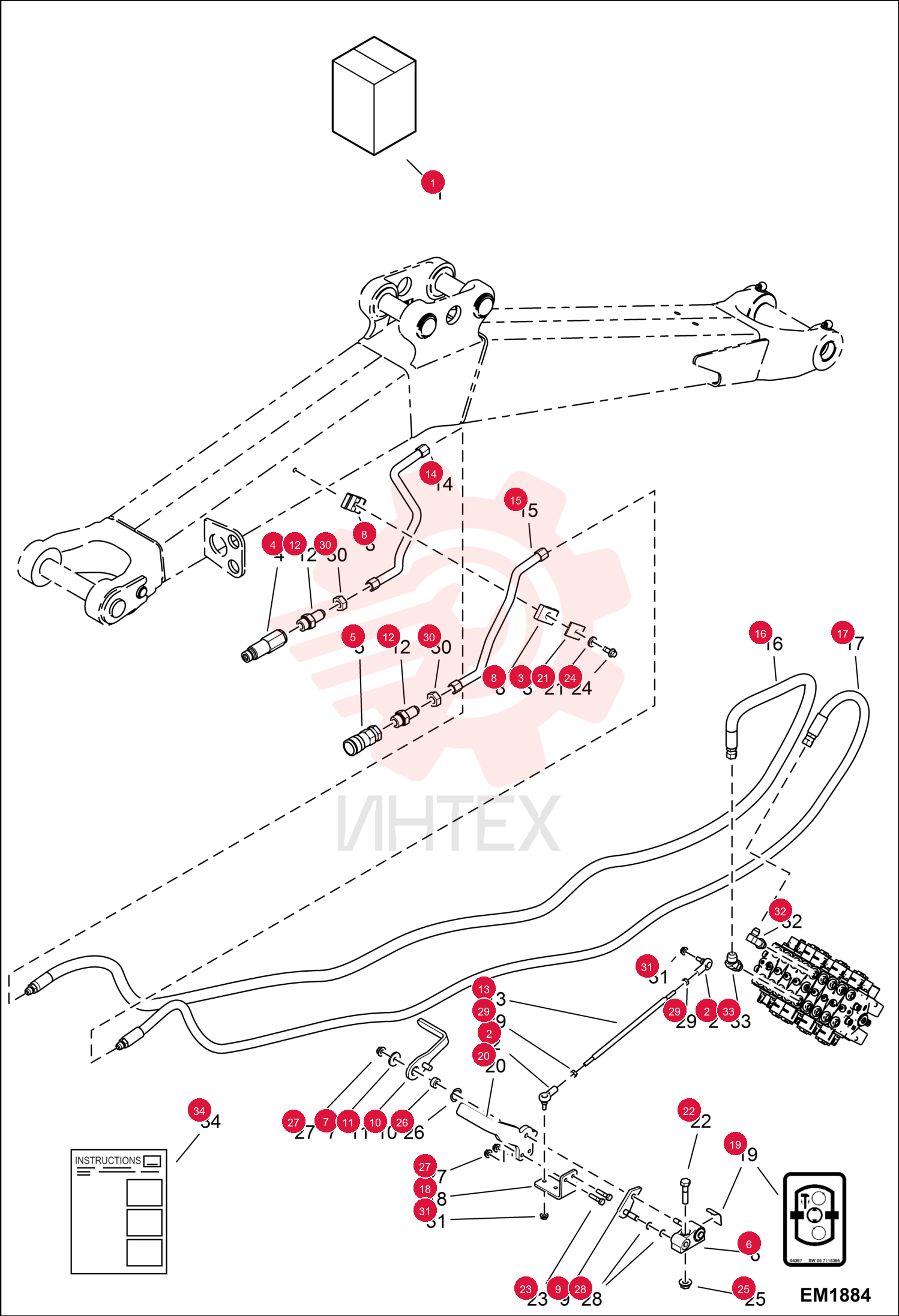

KIT, AUXILIARY HYDRAULICS 7117160

KIT, AUXILIARY HYDRAULICS 7117160

1 7117160

  • 7117160 - KIT
  • AUXILIARY HYDRAULICS
  • Ref. 2-34

2 6631036

  • 6631036 - BALLJOINT

3 6652521

  • 6652521 - PLATE

4 7246791EF

  • 7246791EF - COUPLER FF MALE 1/2 BODY 3/4 SAE THREAD

5 7246791

  • 7246791 - COUPLER FF MALE 1/2
  • - Was 7246777

6 7246790EF

  • 7246790EF - COUPLER FF FEMALE 1/2 BDY 3/4 SAE THREAD

7 7246790

  • 7246790 - COUPLER FF FEM 1/2
  • - Was 6672960

8 6677904

  • 6677904 - BEARING

9 6701174

  • 6701174 - WASHER FLAT

10 6701893

  • 6701893 - CLAMP

11 6808930

  • 6808930 - LOCK

12 6810303

  • 6810303 - SPACER

13 6810511

  • 6810511 - PEDAL

14 6812816

  • 6812816 - ADAPTER

15 7108966

  • 7108966 - ROD THREADED

16 7113234

  • 7113234 - TUBELINE

17 7113235

  • 7113235 - TUBELINE

18 7113236

  • 7113236 - TUBELINE

19 7113237

  • 7113237 - HOSE ASSY

20 7172666

  • 7172666 - LINK
  • PEDAL
  • Was 7114499

21 7115386

  • 7115386 - DECAL VALVE

22 7116275

  • 7116275 - PEDAL LH

23 15EM80

  • 15EM80 - WASHER

24 1CM1040

  • 1CM1040 - BOLT

25 4CM825

  • 4CM825 - BOLT HEX HEAD
  • Was 1CM825

26 29CM845

  • 29CM845 - SCREW HEX FLANGE

27 51DM10

  • 51DM10 - NUT HX THDLK PREAPPL

28 6536803

  • 6536803 - WASHER

29 51DM8

  • 51DM8 - NUT HX THDLK PREAPPL

30 54K20008

  • 54K20008 - O-RING

31 62D4

  • 62D4 - NUT HEX FINISHED GR5

32 86F7

  • 86F7 - NUT 5
  • Was 86F000007B

33 98D4

  • 98D4 - NUT

34 6812820

  • 6812820 - FITTING
  • ELBOW

35 18KB0808

  • 18KB0808 - FITTING
  • HYD ELBOW
  • 45 degrees

36 6904250ENUS

  • 6904250ENUS - INSTRUCTIONS
