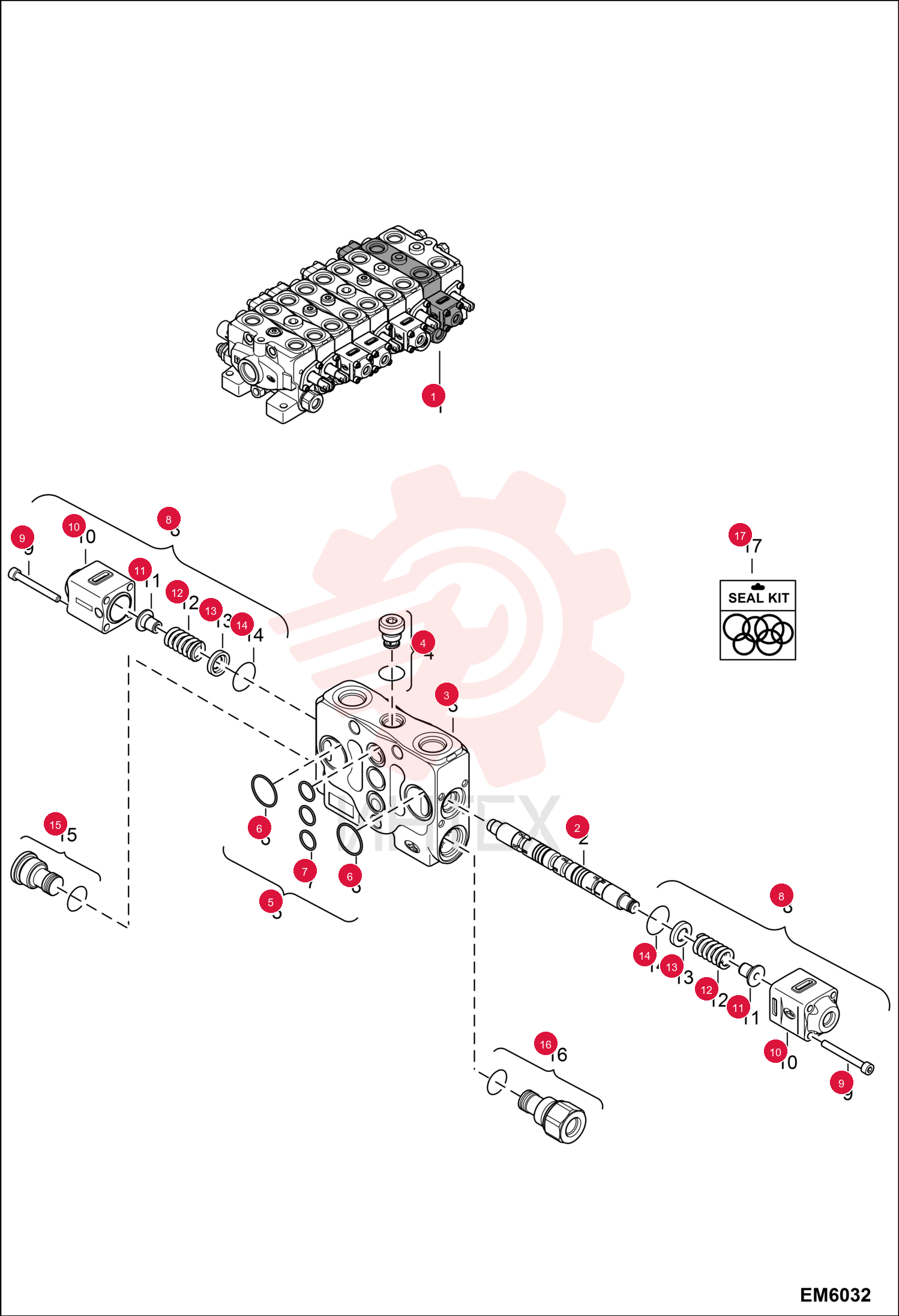

VALVE 7015353

VALVE 7015353

VALVE 7015353

1 7015353

  • 7015353 - VALVE
  • Ref. 2-16

2 6693125

  • 6693125 - I124/SDS100 319 SLEW SPOOL

3 6693130

  • 6693130 - KIT
  • W/Ref. 4-7

4 6680092

  • 6680092 - VALVE
  • LOCK LOAD

5 6680066

  • 6680066 - KIT
  • SEAL
  • between sections - Ref. 6-7

6 6688427

  • 6688427 - KIT
  • Ref. 9-14

7 6682248

  • 6682248 - SCREW

8 7015360

  • 7015360 - CAP

9 7015361

  • 7015361 - BUSHING

10 7015362

  • 7015362 - SPRING

11 7015363

  • 7015363 - BUSHING

12 6680057

  • 6680057 - PLUG ASSEMBLY

13 6693139

  • 6693139 - GF/SDS100-SAE6 INLET JOINT

14 6679444

  • 6679444 - SEAL KIT
