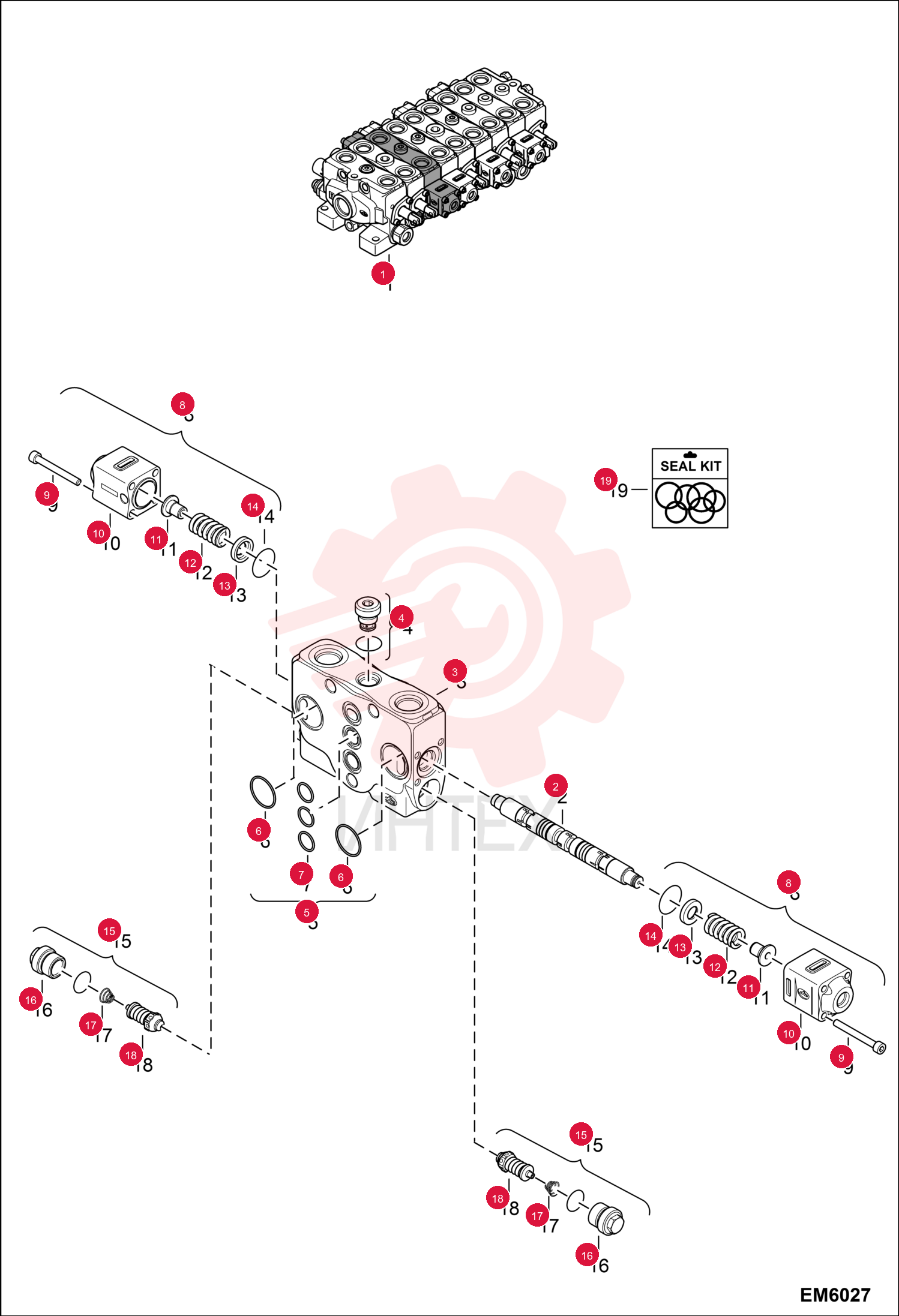

VALVE 7015349 (2)

VALVE 7015349 (2)

VALVE 7015349 (2)

1 7015349

  • 7015349 - VALVE
  • Ref. 2-19

2 6693124

  • 6693124 - I122/SDS100 319 ARM BUCKET SPOOL

3 6693128

  • 6693128 - KIT
  • W/Ref. 4-7

4 6680092

  • 6680092 - VALVE
  • LOCK LOAD

5 6680066

  • 6680066 - KIT
  • SEAL
  • between sections - Ref. 6-7

6 6688427

  • 6688427 - KIT
  • Ref. 9-14

7 6682248

  • 6682248 - SCREW

8 7015360

  • 7015360 - CAP

9 7015361

  • 7015361 - BUSHING

10 7015362

  • 7015362 - SPRING

11 7015363

  • 7015363 - BUSHING

12 6693137

  • 6693137 - KIT
  • VALVE
  • Ref. 16-18

13 6686241

  • 6686241 - PLUG

14 7015357

  • 7015357 - SPRING

15 7015364

  • 7015364 - SPOOL

16 6979440

  • 6979440 - SEAL KIT
