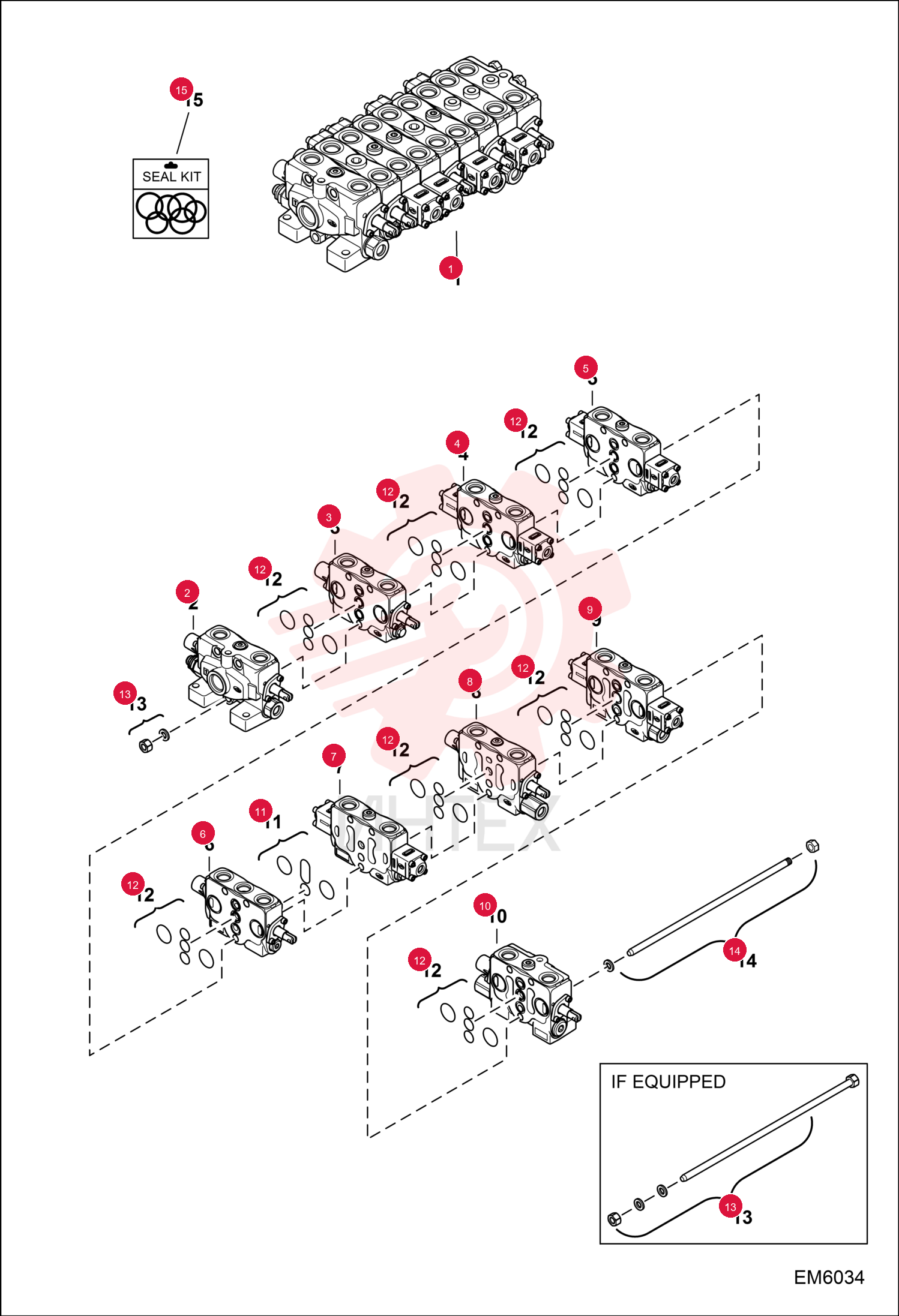

VALVE, CONTROL 7022046

VALVE, CONTROL 7022046

VALVE, CONTROL 7022046

1 7022046

  • 7022046 - VALVE
  • CONTROL
  • Ref. 2-10 - Was 7181978

2 7015347

  • 7015347 - VALVE
  • R.H. travel

3 7015374

  • 7015374 - VALVE
  • offset - W/Ref. 12 - Was 7015348

4 7015349

  • 7015349 - VALVE
  • arm -W/Ref. 12

5 7015349

  • 7015349 - VALVE
  • bucket - W/Ref. 12

6 7015350

  • 7015350 - VALVE
  • auxiliary - W/Ref. 11-12

7 7023074

  • 7023074 - SECTION
  • VALVE
  • boom - W/Ref. 12 - Was 7015351

8 7015352

  • 7015352 - VALVE
  • L.H. travel

9 7015353

  • 7015353 - VALVE
  • slew - W/Ref. 12

10 7015354

  • 7015354 - VALVE
  • blade - W/Ref. 12

11 6680064

  • 6680064 - KIT
  • SEAL
  • between sections

12 6680066

  • 6680066 - KIT
  • SEAL
  • between sections

13 7259726

  • 7259726 - ROD
  • TIE

14 7012493

  • 7012493 - SEAL KIT
