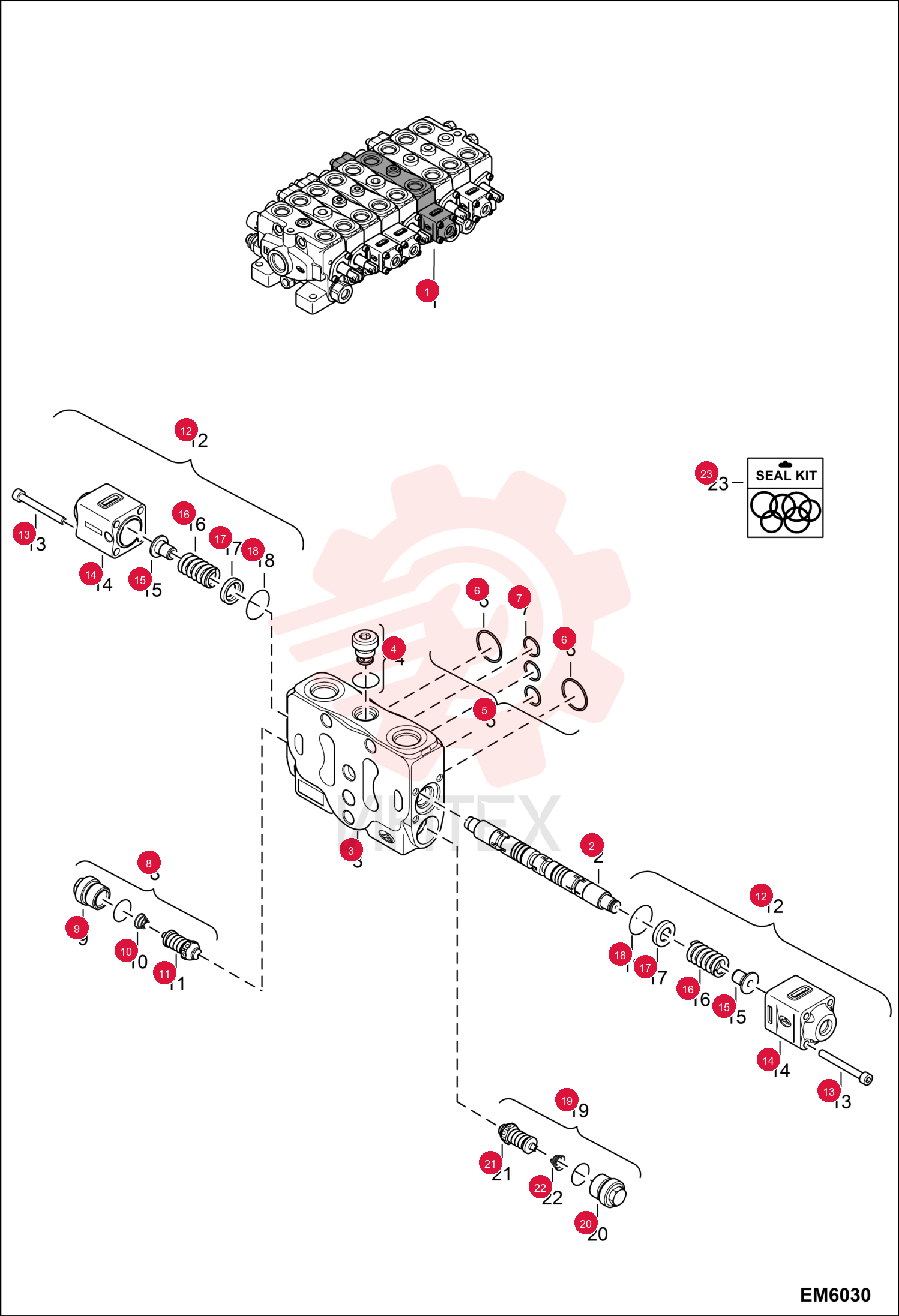

SECTION, VALVE 7023074

SECTION, VALVE 7023074

SECTION, VALVE 7023074

1 7023074

  • 7023074 - SECTION
  • VALVE
  • Ref. 2-22 - Was 7015351

2 7023075

  • 7023075 - SPOOL
  • Was 7015368

3 6693132

  • 6693132 - KIT
  • W/Ref. 4-7

4 6680092

  • 6680092 - VALVE
  • LOCK LOAD

5 6680066

  • 6680066 - KIT
  • SEAL
  • between sections - Ref. 6-7

6 6693137

  • 6693137 - KIT
  • VALVE
  • Ref. 9-11

7 6686241

  • 6686241 - PLUG

8 7015357

  • 7015357 - SPRING

9 7015364

  • 7015364 - SPOOL

10 6688427

  • 6688427 - KIT
  • Ref. 13-18

11 6682248

  • 6682248 - SCREW

12 7015360

  • 7015360 - CAP

13 7015361

  • 7015361 - BUSHING

14 7015362

  • 7015362 - SPRING

15 7015363

  • 7015363 - BUSHING

16 6693136

  • 6693136 - KIT
  • VALVE
  • Ref. 20-22

17 6686241

  • 6686241 - PLUG

18 7015369

  • 7015369 - SPOOL

19 7015357

  • 7015357 - SPRING

20 7015370

  • 7015370 - KIT
  • SEAL
