KIT DRAIN LINE OFFSET 7306738 (1)

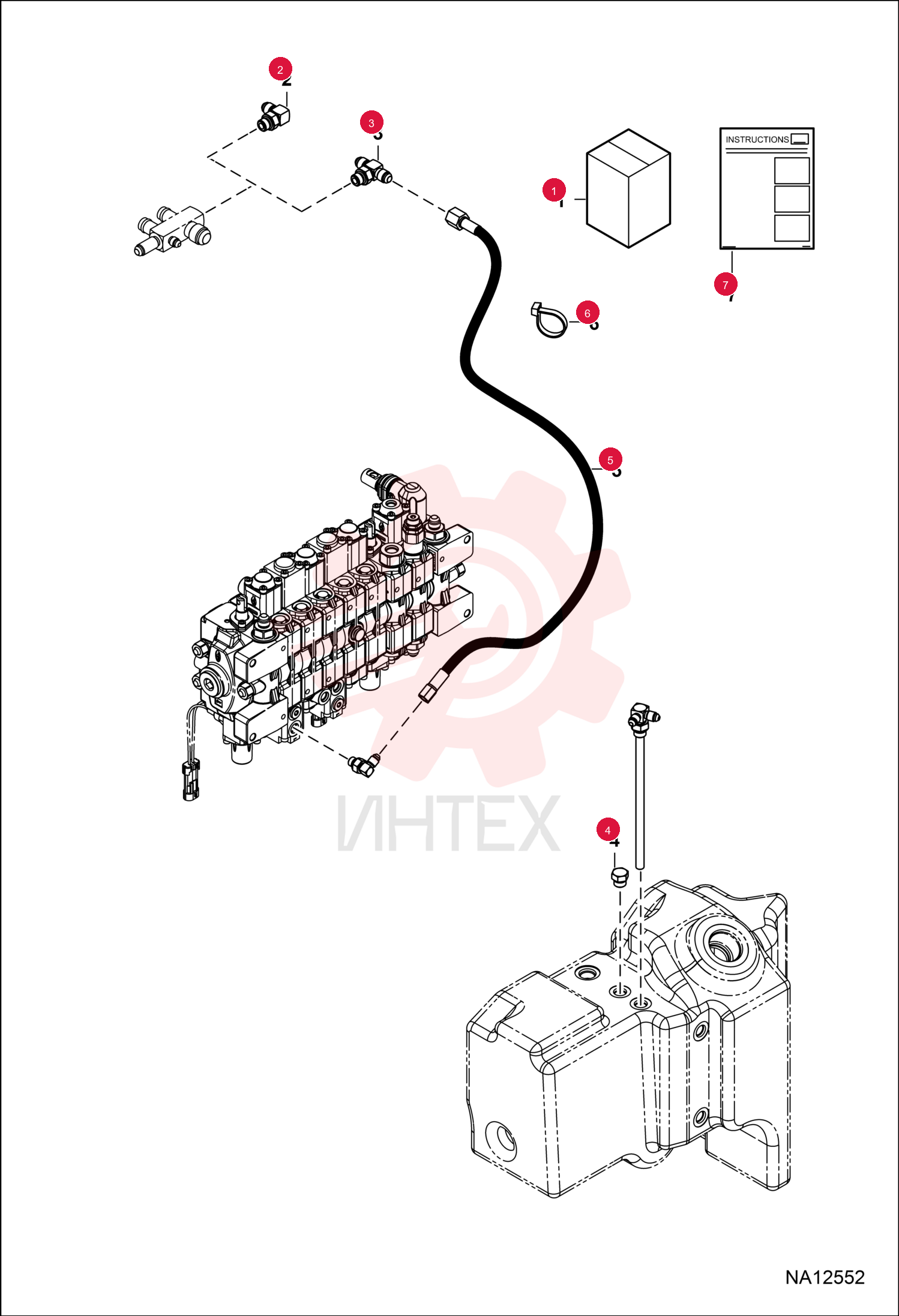

KIT DRAIN LINE OFFSET 7306738 (1)

KIT DRAIN LINE OFFSET 7306738 (1)

1 7306738

  • 7306738 - KIT DRAIN LINE OFFSET
  • Ref. 2-7

2 17KB0606

  • 17KB0606 - FTG HYD 90 ELBOW
  • Use W/O boom or boom & arm load hold value

3 19KB0606

  • 19KB0606 - FITTING
  • HYD TEE
  • Use W/boom or boom & arm load hold valve

4 24K5

  • 24K5 - PLUG

5 7306739

  • 7306739 - HOSE HYDRAULIC ASSY

6 6624289

  • 6624289 - STRAP
  • TIE

7 7306907

  • 7306907 - INSTRUCTIONS
