Bobcat
/
E19
/

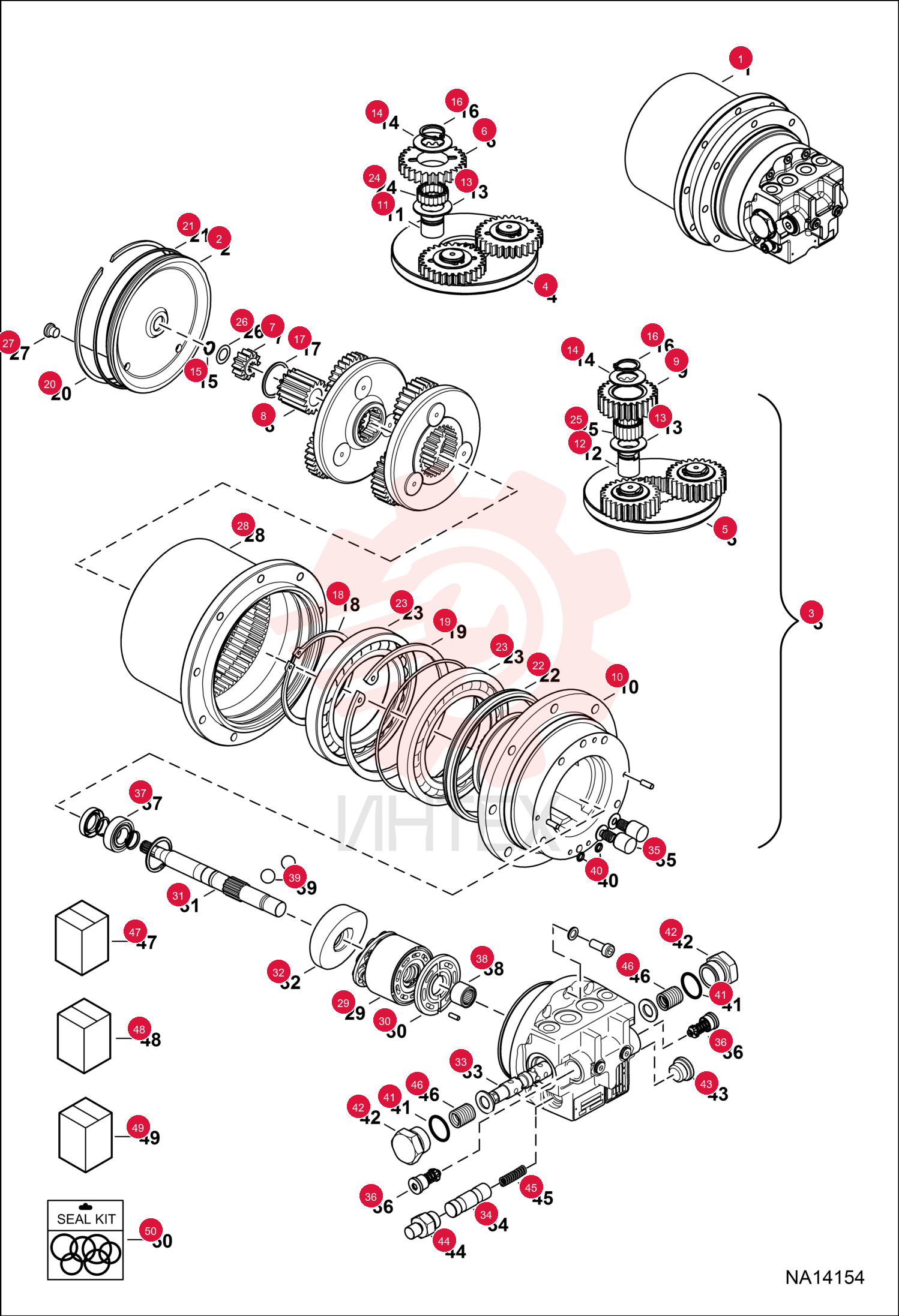

MOTOR DRIVE 2SPD

MOTOR DRIVE 2SPD

MOTOR DRIVE 2SPD

1 7312645

  • 7312645 - MOTOR DRIVE 2SPD
  • Ref. 2-46

2 7329763

  • 7329763 - COVER MOTOR

3 7329742

  • 7329742 - MOTOR TRAVEL

4 7329743

  • 7329743 - CARRIER MOTOR

5 7329744

  • 7329744 - CARRIER MOTOR

6 7329745

  • 7329745 - HOUSING PLANETARY

7 7329746

  • 7329746 - GEAR PLANETARY

8 6667753

  • 6667753 - GEAR

9 6667755

  • 6667755 - GEAR

10 6667754

  • 6667754 - BEARING

11 7329747

  • 7329747 - PIN GROOVED

12 7329748

  • 7329748 - PIN GROOVED

13 6667757

  • 6667757 - WASHER

14 6667758

  • 6667758 - WASHER

15 6688118

  • 6688118 - RING

16 7329749

  • 7329749 - RING SNAP

17 6667764

  • 6667764 - SNAP RING

18 6667765

  • 6667765 - SNAP RING

19 6667767

  • 6667767 - SNAP RING

20 6667768

  • 6667768 - O-RING

21 6667769

  • 6667769 - O-RING

22 6667770

  • 6667770 - BEARING

23 6667763

  • 6667763 - BEARING

24 6667760

  • 6667760 - BEARING

25 7329750

  • 7329750 - BEARING MOTOR TRAVEL

26 6676161

  • 6676161 - PLUG

27 6667748

  • 6667748 - HOUSING

28 7329752

  • 7329752 - VALVE PLATE

29 7329753

  • 7329753 - SHAFT MOTOR

30 7329754

  • 7329754 - SWASHPLATE

31 7329755

  • 7329755 - SPOOL MOTOR

32 7329756

  • 7329756 - KIT SPOOL

33 7329757

  • 7329757 - PISTON MOTOR TRAVEL

34 7329758

  • 7329758 - VALVE RELIEF

35 7329759

  • 7329759 - BEARING ROLLER

36 6667781

  • 6667781 - BEARING

37 7329761

  • 7329761 - KIT SPRING
  • Ref. 45 & 46

38 7329762

  • 7329762 - KIT SPRING

39 7308583

  • 7308583 - KIT UNIVERSAL PLUG
  • Ref. 42 & 43

40 7329760

  • 7329760 - KIT SEAL
  • Ref. 40-43
