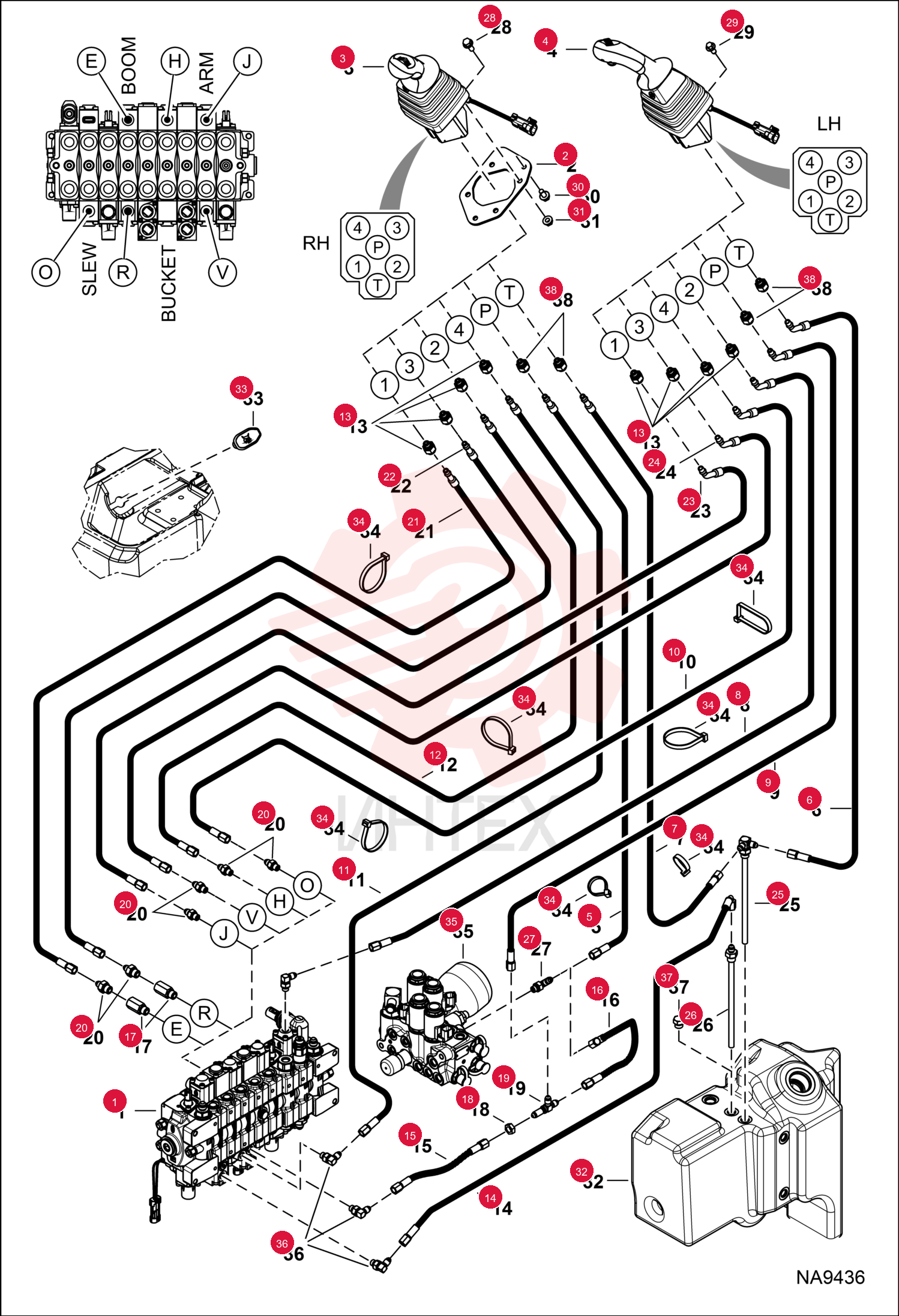

VALVE CONTROL 7354140 (6)

VALVE CONTROL 7354140 (6)

VALVE CONTROL 7354140 (6)

1 7354140

  • 7354140 - VALVE CONTROL

2 7218028

  • 7218028 - PLATE

3 7024441

  • 7024441 - JOYSTICK
  • RH ASSY
  • - EH controls

4 7024440

  • 7024440 - JOYSTICK
  • LH ASSY
  • - EH controls

5 7221986

  • 7221986 - HOSE
  • HYD

6 7221987

  • 7221987 - HOSE
  • HYD ASSY

7 7222467

  • 7222467 - HOSE
  • HYD ASSY

8 7222468

  • 7222468 - HOSE
  • HYD ASSY

9 7222469

  • 7222469 - HOSE
  • HYD ASSY

10 7222475

  • 7222475 - HOSE
  • HYD

11 7222476

  • 7222476 - HOSE
  • HYD

12 7222477

  • 7222477 - HOSE
  • HYD

13 10L0604

  • 10L0604 - FITTING
  • HYD CONNECTOR

14 78K4

  • 78K4 - O'RING

15 7011053

  • 7011053 - CLIP

16 7344615

  • 7344615 - CAP PLASTIC

17 7238571

  • 7238571 - HOSE
  • HYD ASSY

18 7238576

  • 7238576 - HOSE
  • HYD ASSY

19 7012494

  • 7012494 - ORIFICE

20 86F3

  • 86F3 - NUT 10

21 91K3

  • 91K3 - TEE

22 15KB0404

  • 15KB0404 - FTG HYD S CONNECTOR

23 7222972

  • 7222972 - HOSE
  • HYD ASSY

24 7222973

  • 7222973 - HOSE
  • HYD

25 7228138

  • 7228138 - HOSE
  • HYD

26 7228137

  • 7228137 - HOSE
  • HYD

27 7240072

  • 7240072 - FITTING
  • CROSS

28 7223890

  • 7223890 - FITTING
  • HYD CONNECTOR
  • Use W/Ref. 14 (7240017 hose) - if equipped

29 21KB0404

  • 21KB0404 - FITTING
  • HYD TEE

30 29CM820

  • 29CM820 - SCREW FLNGE HEX CAP

31 26GM8020

  • 26GM8020 - SCREW SELF TAPPING

32 29CM816

  • 29CM816 - SCREW FLGD HEX CAP

33 51DM8

  • 51DM8 - NUT HX THDLK PREAPPL

34 7221862

  • 7221862 - TANK
  • HYD

35 7224269

  • 7224269 - BOOT
  • RUBBER

36 6624289

  • 6624289 - STRAP
  • TIE

37 7222969

  • 7222969 - MANIFOLD
  • HYD ASSY

38 17KB0404

  • 17KB0404 - FTG HYD ELBOW 90

39 24K5

  • 24K5 - PLUG
  • if equipped

40 10L0604

  • 10L0604 - FITTING
  • HYD CONNECTOR

41 78K4

  • 78K4 - O'RING

42 7011053

  • 7011053 - CLIP

43 7344615

  • 7344615 - CAP PLASTIC

44 7319693

  • 7319693 - FITTING HYDRAULIC STRAIGHT
  • EMEA only
