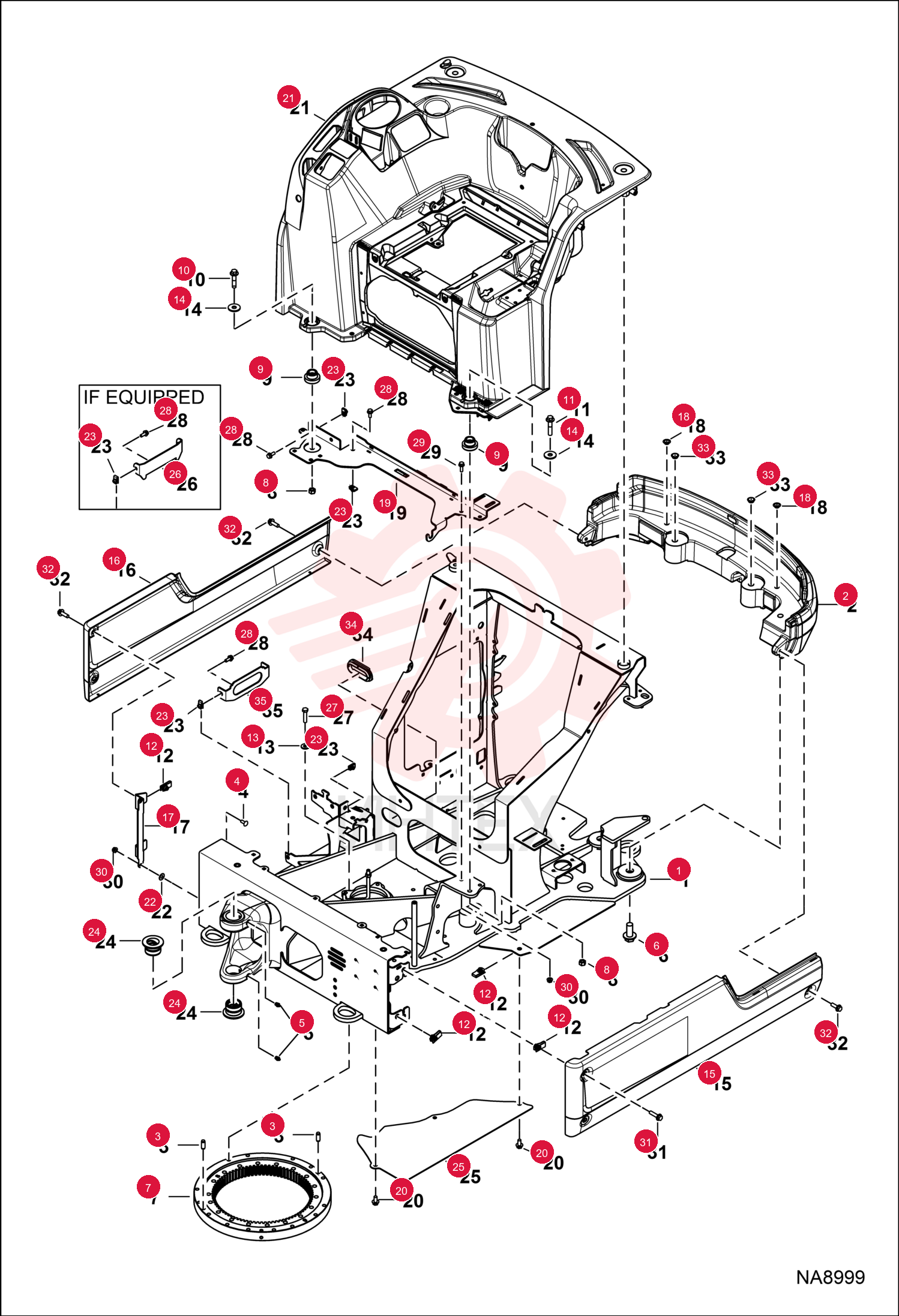

UPPERSTRUCTURE 7307754

UPPERSTRUCTURE 7307754

UPPERSTRUCTURE 7307754

1 7307754

  • 7307754 - UPPERSTRUCTURE

2 7243675

  • 7243675 - COUNTERWEIGHT

3 23JM1232

  • 23JM1232 - PIN PARALLEL

4 28CM820

  • 28CM820 - BOLT CARRIAGE 8.8

5 10H25

  • 10H25 - FTG GREASE STRAIGHT

6 29CM2045

  • 29CM2045 - BOLT

7 7222567

  • 7222567 - BEARING SLEW

8 51DM12

  • 51DM12 - NUT

9 7001052

  • 7001052 - MOUNT
  • ENG

10 29CM1250

  • 29CM1250 - BOLT

11 29CM1255

  • 29CM1255 - BOLT

12 6675722

  • 6675722 - NUT

13 27E6

  • 27E6 - WASHER HARDEN PLAIN

14 17EM120

  • 17EM120 - WASHER

15 7301017

  • 7301017 - CHANNEL LH
  • Was 7224421

16 7301018

  • 7301018 - CHANNEL RH
  • Was 7224422

17 7215474

  • 7215474 - MOUNT
  • CHANNEL

18 7010676

  • 7010676 - PLUG

19 29CM1020

  • 29CM1020 - SCREW HEX 10MMX20MM

20 7215968

  • 7215968 - PANEL
  • ENG

21 6675859

  • 6675859 - RETAINER

22 6676169

  • 6676169 - NUT

23 7182633

  • 7182633 - INSERT SWING

24 7225548

  • 7225548 - PLATE
  • VALVE

25 7222372

  • 7222372 - BRACKET
  • BATTERY

26 56CM1045

  • 56CM1045 - SCREW

27 29CM820

  • 29CM820 - SCREW FLNGE HEX CAP

28 29CM825

  • 29CM825 - SCREW HEX HD W/F 8.8

29 43DM8

  • 43DM8 - NUT FLANGED HEX

30 29CM1040

  • 29CM1040 - SCREW

31 29CM1030

  • 29CM1030 - SCREW FLGD HEX CAP

32 7010917

  • 7010917 - PLUG

33 7245552

  • 7245552 - GROMMET

34 7270246

  • 7270246 - PLATE BATTERY
