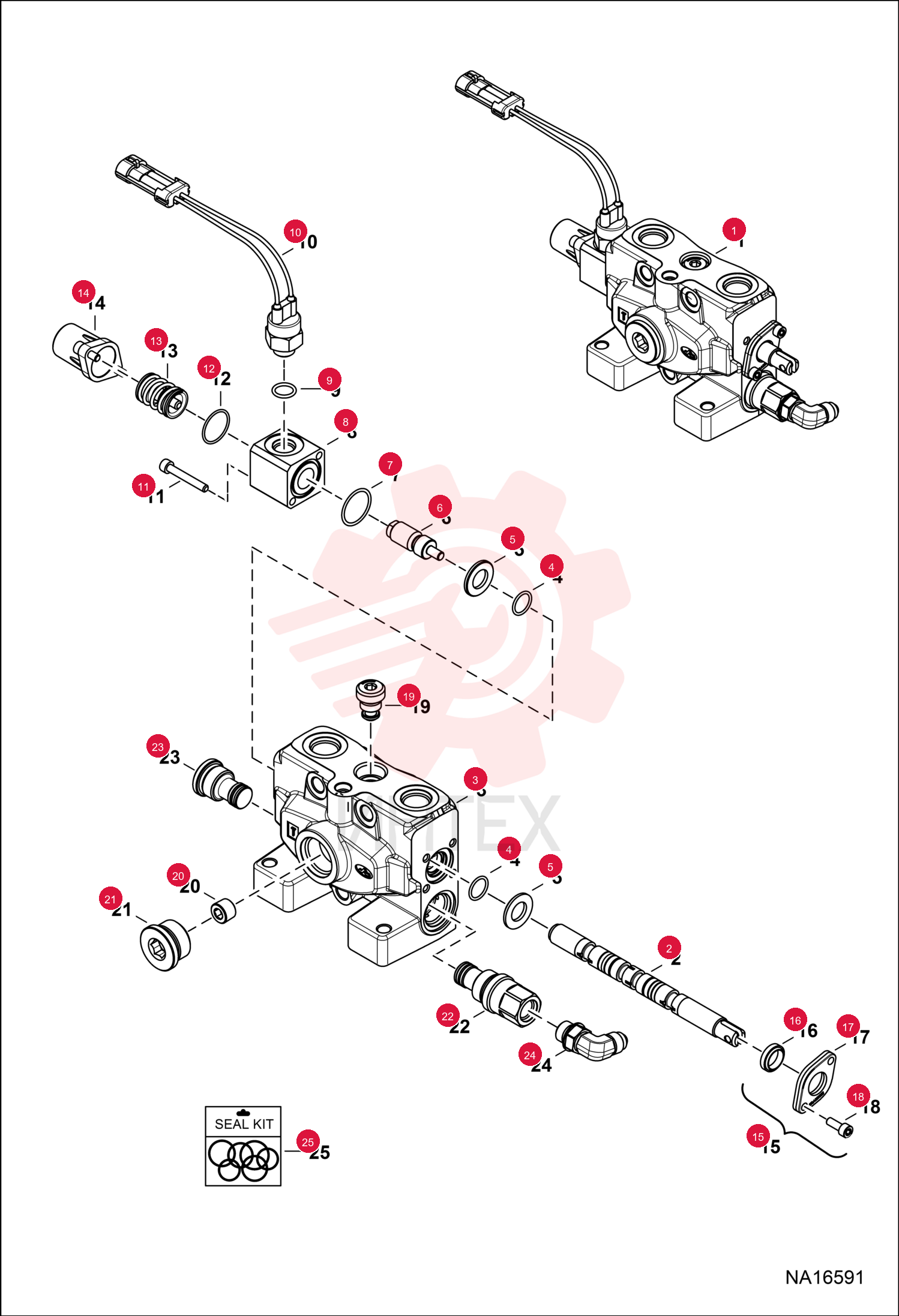

SECTION VALVE CONTROL 7362816

SECTION VALVE CONTROL 7362816

SECTION VALVE CONTROL 7362816

1 7362816

  • 7362816 - SECTION VALVE CONTROL
  • Ref. 2-22

2 7015382

  • 7015382 - SPOOL

3 7259718

  • 7259718 - SECTION
  • VALVE INLET

4 6680094

  • 6680094 - O-RING

5 6680095

  • 6680095 - WASHER

6 6685780

  • 6685780 - CONTROL ASSEMBLY

7 6679604

  • 6679604 - O-RING

8 7015381

  • 7015381 - BLOCK
  • VALVE
  • Was 6679910

9 6679605

  • 6679605 - O-RING

10 7259667

  • 7259667 - SENSOR
  • MAGNETIC

11 6679501

  • 6679501 - SCREW

12 7015578

  • 7015578 - O-RING

13 7259656

  • 7259656 - KIT
  • SPOOL

14 6679496

  • 6679496 - END CAP

15 6680097

  • 6680097 - COVER
  • END

16 6679912

  • 6679912 - SEAL

17 6679911

  • 6679911 - FLANGE

18 6680071

  • 6680071 - SCREW

19 6680093

  • 6680093 - PLUG ASSEMBLY

20 7015355

  • 7015355 - PLUG

21 6680058

  • 6680058 - PLUG ASSEMBLY

22 7364020

  • 7364020 - VALVE RELIEF PORT

23 6680057

  • 6680057 - PLUG ASSEMBLY

24 7364021

  • 7364021 - FITTING ELBOW

25 7362815

  • 7362815 - KIT SEAL
