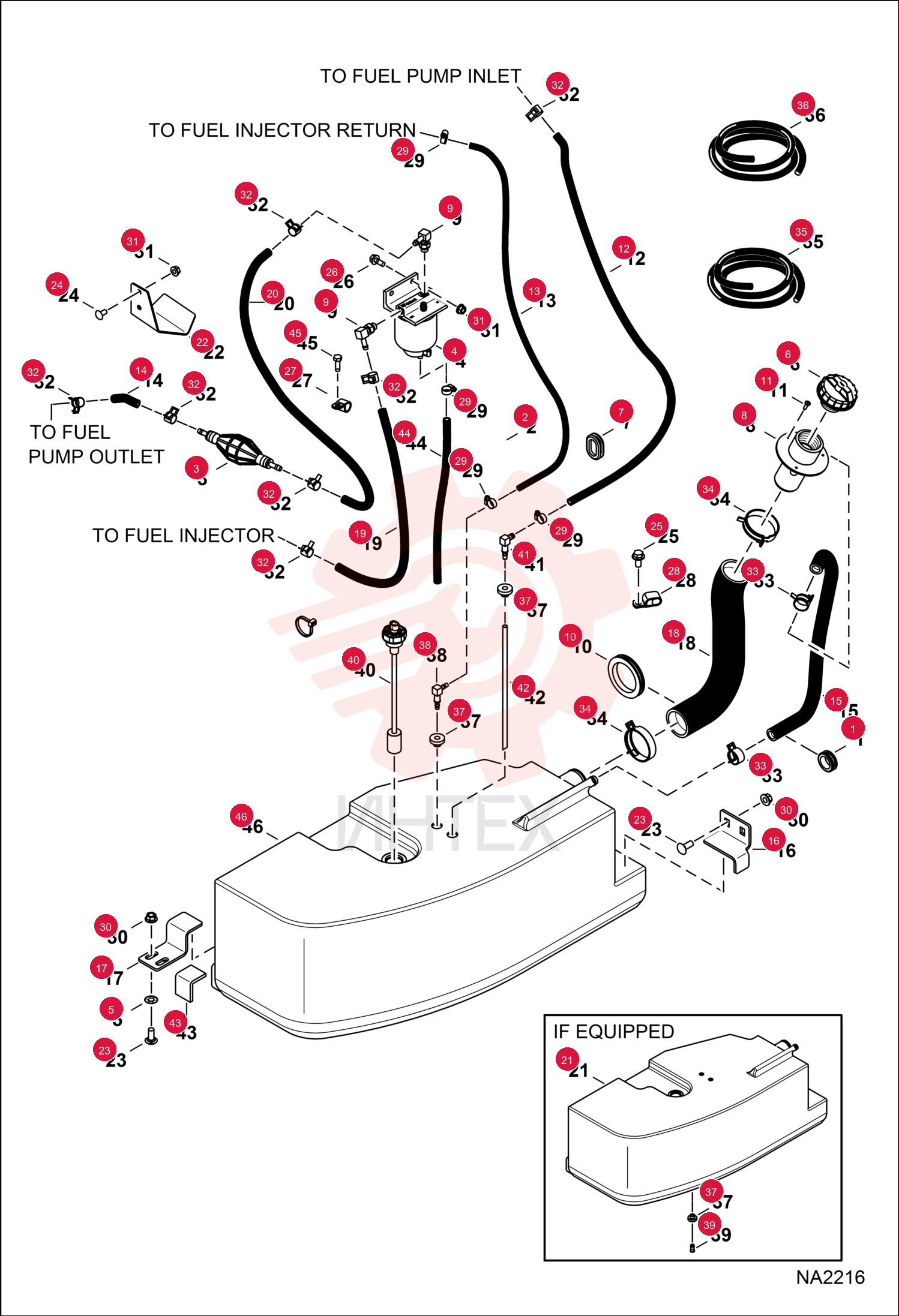

GROMMET 6515603 (1)

GROMMET 6515603 (1)

GROMMET 6515603 (1)

1 6515603

  • 6515603 - GROMMET

2 6624289

  • 6624289 - STRAP
  • TIE

3 6667170

  • 6667170 - PUMP
  • PRIMER HAND

4 6667170

  • 6667170 - PUMP
  • PRIMER HAND

5 6667352

  • 6667352 - FILTER
  • FUEL W/SEPARATOR 12

6 6667353

  • 6667353 - FILTER
  • FUEL ASSY

7 6674264

  • 6674264 - RETAINER BOLT

8 7023550

  • 7023550 - CAP
  • DIESEL LOCKING
  • black - key same as ignition

9 7019288

  • 7019288 - CAP
  • FUEL LOCKING
  • green - key same as ignition - Was 6680151

10 6681886

  • 6681886 - GROMMET

11 6701449

  • 6701449 - FLR.TUBE

12 79K5

  • 79K5 - O RING 10

13 6715183

  • 6715183 - ELBOW 90 STRTHD TUBE

14 6807283

  • 6807283 - GROMMET

15 7106279

  • 7106279 - SCREW

16 7148493

  • 7148493 - HOSE
  • FUEL

17 7163720

  • 7163720 - BRACKET
  • TANK FUEL

18 7163721

  • 7163721 - BRACKET
  • TANK FUEL

19 7164301

  • 7164301 - HOSE
  • FUEL FORMED

20 7175608

  • 7175608 - BRACKET
  • DRAIN

21 28CM1025

  • 28CM1025 - BOLT CARRIAGE 8.8

22 28CM816

  • 28CM816 - BOLT CARRIAGE 8.8

23 29CM1020

  • 29CM1020 - SCREW HEX 10MMX20MM

24 29CM820

  • 29CM820 - SCREW FLNGE HEX CAP

25 30H34

  • 30H34 - CLAMP
  • .562" ID - if equipped

26 30H37

  • 30H37 - CLIP INSULATED
  • .625" ID - if equipped

27 31H27

  • 31H27 - CLIP

28 42HS04

  • 42HS04 - CLAMP HOSE TYPE M

29 43DM10

  • 43DM10 - NUT FLANGED HEX

30 43DM8

  • 43DM8 - NUT FLANGED HEX

31 5HM14

  • 5HM14 - HOSE CLMP CONST TENS

32 5HM23

  • 5HM23 - HOSE CLMP CONST TENS

33 5HM58

  • 5HM58 - CLAMP

34 6578169

  • 6578169 - HOSE BULK
  • sold per foot - 0.19" ID

35 6577822

  • 6577822 - HOSE BULK
  • sold per foot

36 7273691

  • 7273691 - GROMMET
  • Use W/ 19
  • 05 mm (0.75") dia hole

37 6553411

  • 6553411 - BUSHING
  • PRESS FIT 5
  • Use W/ 13mm (.51") dia hole

38 6598908

  • 6598908 - ELBOW BARBED

39 6599645

  • 6599645 - PLUG
  • STEEL
  • if equipped

40 7286464

  • 7286464 - SENSOR
  • FUEL
  • Was 7179839

41 7297322

  • 7297322 - SENSOR
  • FUEL
  • W/Gasket - Was 7216451

42 6666302

  • 6666302 - ELBOW BARBED
  • Was 7126672

43 6683892

  • 6683892 - TUBE
  • FUEL

44 6578278

  • 6578278 - BUMP.PAD

45 4CM825

  • 4CM825 - BOLT HEX HEAD
  • if equipped - Was 1CM825

46 7345450

  • 7345450 - TANK FUEL
  • Was 7320369
