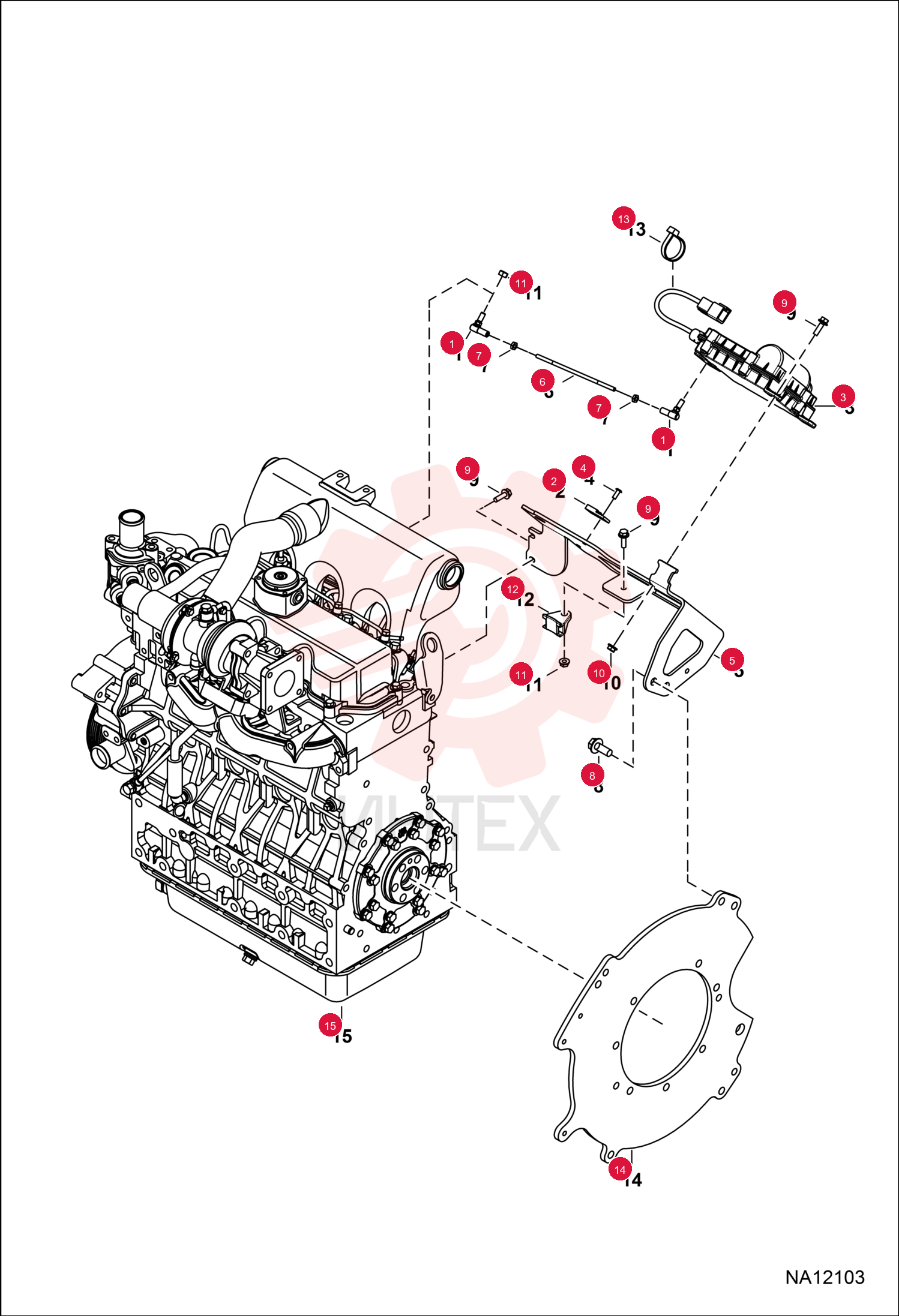

BALL JOINT 6644965 (3)

BALL JOINT 6644965 (3)

BALL JOINT 6644965 (3)

1 6644965

  • 6644965 - BALL JOINT

2 6665000

  • 6665000 - BRACKET MOUNTING

3 7307186

  • 7307186 - ACTUATOR THROTTLE
  • Was 7234210

4 6814428

  • 6814428 - RIVET

5 7233277

  • 7233277 - BRACKET
  • THROTTLE

6 7241552

  • 7241552 - LINK
  • THROTTLE

7 14D10

  • 14D10 - NUT HEX MACH SCREW

8 29CM1025

  • 29CM1025 - SCREW FLGD HEX CAP

9 29CM620

  • 29CM620 - SCREW FLGD HEX CAP

10 51DM6

  • 51DM6 - NUT HX THDLK PREAPPL

11 62D4

  • 62D4 - NUT HEX FINISHED GR5

12 6678818

  • 6678818 - MOUNT

13 6624289

  • 6624289 - STRAP
  • TIE
