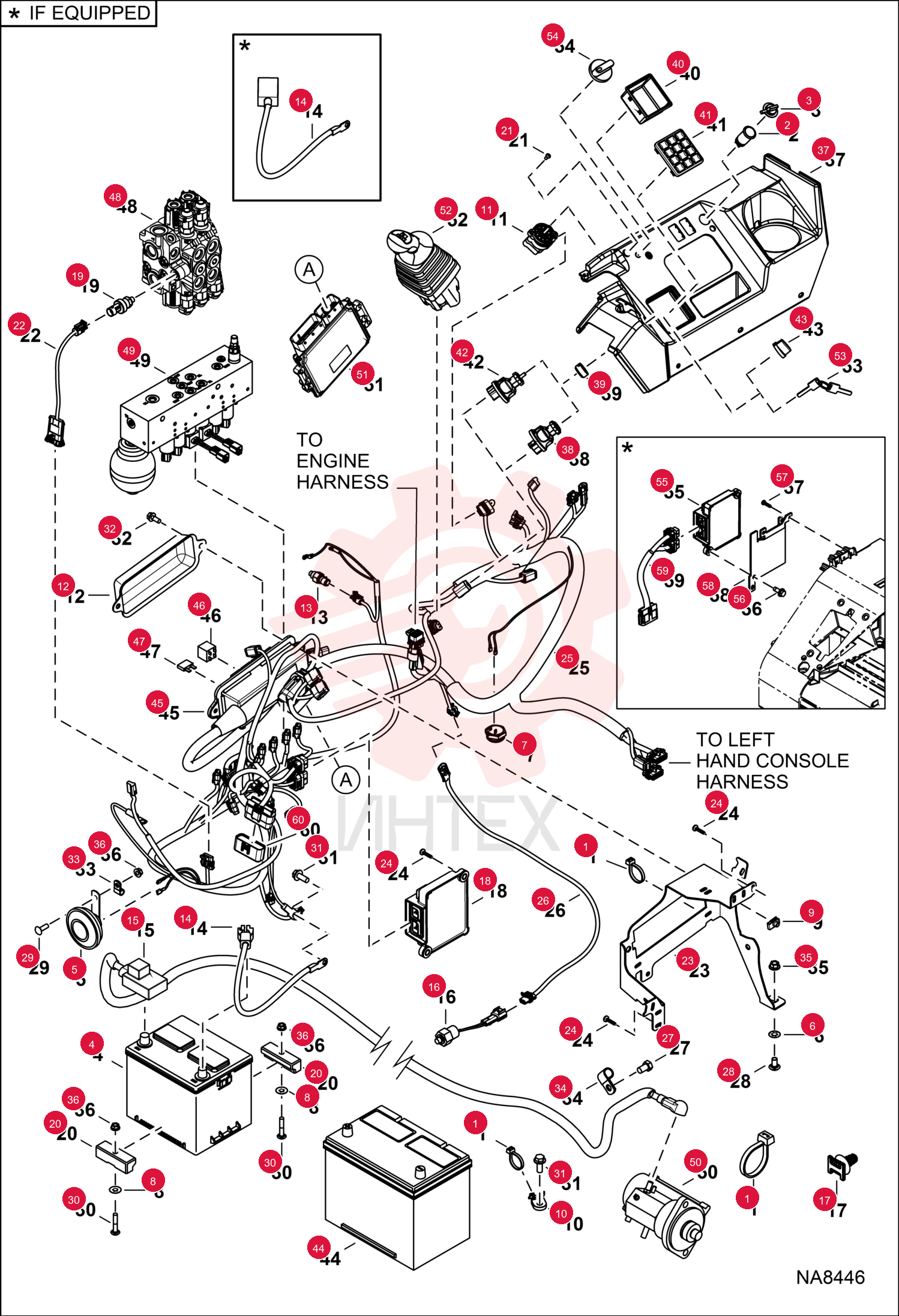

STRAP, TIE 6624289 (16)

STRAP, TIE 6624289 (16)

STRAP, TIE 6624289 (16)

1 6624289

  • 6624289 - STRAP
  • TIE

2 6664223

  • 6664223 - OUTLET ELECTRICAL

3 6664224

  • 6664224 - CAP

4 7269858

  • 7269858 - BATTERY WET 540 CCA
  • - Was 6670251

5 6671106

  • 6671106 - ALARM

6 6674264

  • 6674264 - RETAINER BOLT

7 6675705

  • 6675705 - ALARM

8 6675859

  • 6675859 - RETAINER

9 6676169

  • 6676169 - NUT

10 6679034

  • 6679034 - MOUNT

11 7281258

  • 7281258 - CONTROL THROTTLE
  • Was 6698640

12 6716621

  • 6716621 - COVER
  • FUSE

13 6727869

  • 6727869 - SENDER
  • HYD TEMP

14 6807431

  • 6807431 - CABLE
  • NEGATIVE

15 6809043

  • 6809043 - CABLE
  • POSITIVE

16 7008933

  • 7008933 - SWITCH
  • PRESS OIL HYD

17 7015668

  • 7015668 - MOUNT
  • STRAP TIE

18 7260940

  • 7260940 - CONTROLLER GATEWAY
  • Was 7024906

19 7320663

  • 7320663 - SENSOR PRESS
  • Was 7025582

20 7120672

  • 7120672 - TIE DOWN

21 7135909

  • 7135909 - SCREW

22 7217775

  • 7217775 - HARNESS
  • JUMPER
  • Use W/ 7241864 harness rh and 7210416 harness rh

23 7220330

  • 7220330 - BRACKET
  • RELAY CENTER

24 7223129

  • 7223129 - SCREW

25 7225889

  • 7225889 - HARNESS
  • CONSOLE RH

26 7322844

  • 7322844 - HARNESS CONSOLE RH

27 7234118

  • 7234118 - HARNESS
  • TRAVEL

28 1CM1220

  • 1CM1220 - BOLT

29 28CM1020

  • 28CM1020 - BOLT CARRIAGE 8.8

30 28CM825

  • 28CM825 - BOLT CARRIAGE 8.8

31 28CM845

  • 28CM845 - BOLT

32 29CM1025

  • 29CM1025 - SCREW FLGD HEX CAP

33 29CM820

  • 29CM820 - SCREW FLNGE HEX CAP

34 30H22

  • 30H22 - CLIP INSULATED

35 30H44

  • 30H44 - CLAMP

36 43DM10

  • 43DM10 - NUT FLANGED HEX

37 43DM8

  • 43DM8 - NUT FLANGED HEX

38 6693245

  • 6693245 - SWITCH
  • IGN

39 7000328

  • 7000328 - ADAPTER SWITCH

40 7211550

  • 7211550 - CONTAINER
  • STORAGE

41 6693712

  • 6693712 - KEYPAD
  • PANEL

42 7023022

  • 7023022 - SWITCH ROTARY

43 7023588

  • 7023588 - KNOB

44 7312552

  • 7312552 - BATTERY 650 CCA DRY
  • - Was 6674687

45 6718659

  • 6718659 - HOUSING FUSE RELAY

46 6679820

  • 6679820 - SWITCH
  • RELAY MAGNETIC

47 7029550

  • 7029550 - FUSE
  • 35A

48 6654803

  • 6654803 - FUSE 5A

49 6654805

  • 6654805 - FUSE 10A

50 6654806

  • 6654806 - FUSE
  • 15A

51 6625575

  • 6625575 - FUSE
  • 20A

52 6702444

  • 6702444 - FUSE 25A 5

53 6673201

  • 6673201 - LOCK

54 7030329

  • 7030329 - ECU
  • programming by dealer required

55 7024441

  • 7024441 - JOYSTICK
  • RH ASSY

56 6693241

  • 6693241 - KEY (2)
  • ignition - single key W/O ring

57 7022367

  • 7022367 - KNOB

58 7260941

  • 7260941 - CONTROLLER
  • SECONDARY
  • - Was 7024907

59 7168429

  • 7168429 - BOLT
  • CONTROLLER

60 7223129

  • 7223129 - SCREW

61 7228167

  • 7228167 - MOUNT
  • CONTROLLER

62 7236409

  • 7236409 - HARNESS
  • CONTROLLER SECONDARY

63 6684126

  • 6684126 - COVER
