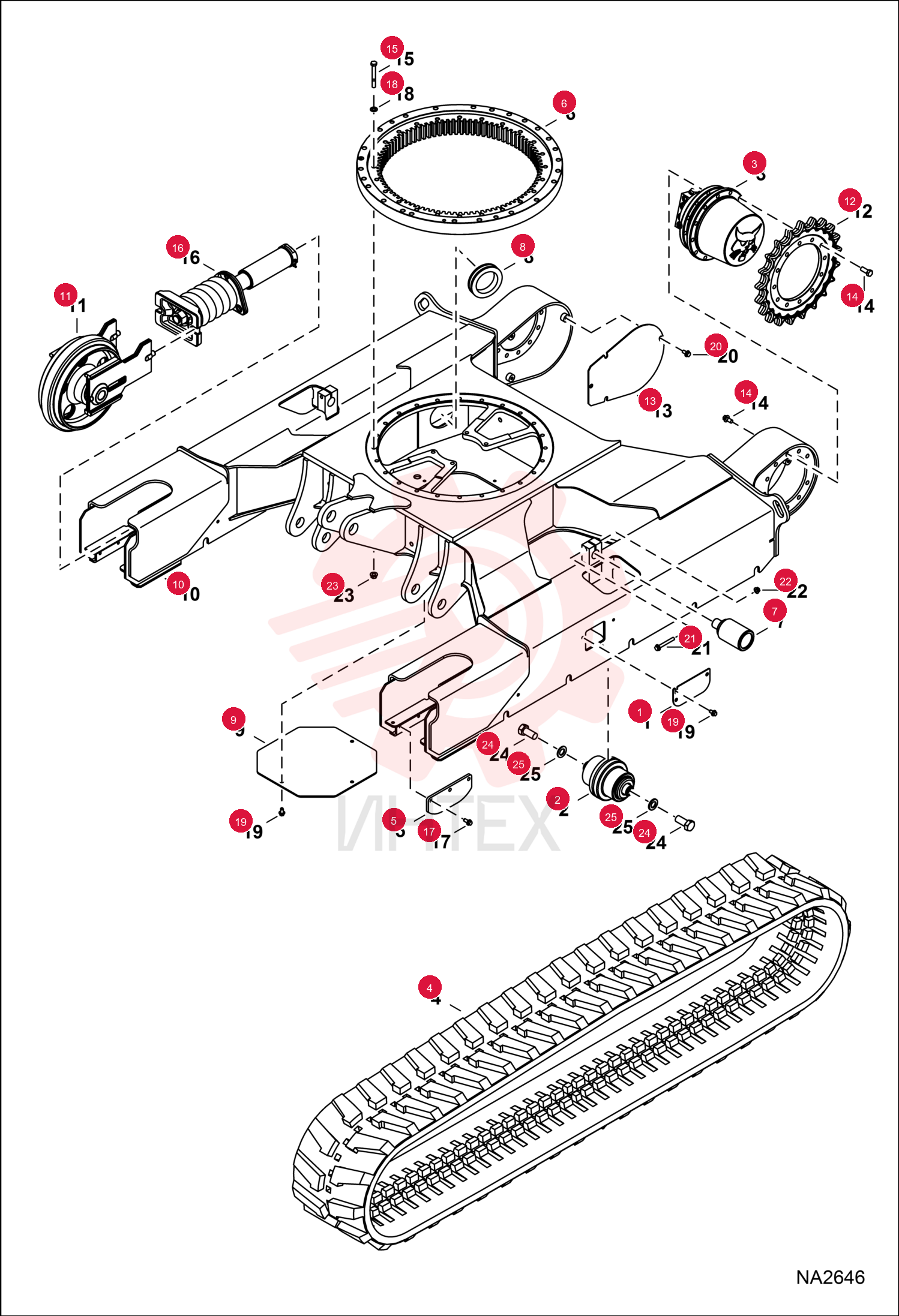

COVER 6596723 (1)

COVER 6596723 (1)

COVER 6596723 (1)

1 6596723

  • 6596723 - COVER

2 7013578

  • 7013578 - ROLLER
  • TRACK
  • for steel tracks

3 7013577

  • 7013577 - ROLLER
  • TRACK
  • for rubber tracks

4 7178853

  • 7178853 - PLATE
  • GUIDE

5 6692966

  • 6692966 - ROLLER
  • TRACK

6 7127210

  • 7127210 - GROMMET

7 7328146

  • 7328146 - COVER ACCESS
  • Was 7142236

8 7142448

  • 7142448 - UNDERCARRIAGE

9 7199008

  • 7199008 - SPROCKET
  • MACHINED

10 7142456

  • 7142456 - COVER
  • MOTOR

11 55CM1435

  • 55CM1435 - SCREW

12 7CM12100

  • 7CM12100 - BOLT

13 26GM10025

  • 26GM10025 - SCREW HEX THRDRLG

14 18EM1224

  • 18EM1224 - WASHER HARDENED PLN

15 26GM10020

  • 26GM10020 - SCREW HEX THRDRLG

16 29CM1020

  • 29CM1020 - SCREW HEX 10MMX20MM

17 29CM1080

  • 29CM1080 - SCREW

18 51DM10

  • 51DM10 - NUT HX THDLK PREAPPL

19 7334195

  • 7334195 - NUT HEX
  • Was 51DM12

20 7015398

  • 7015398 - BOLT

21 7015399

  • 7015399 - WASHER
