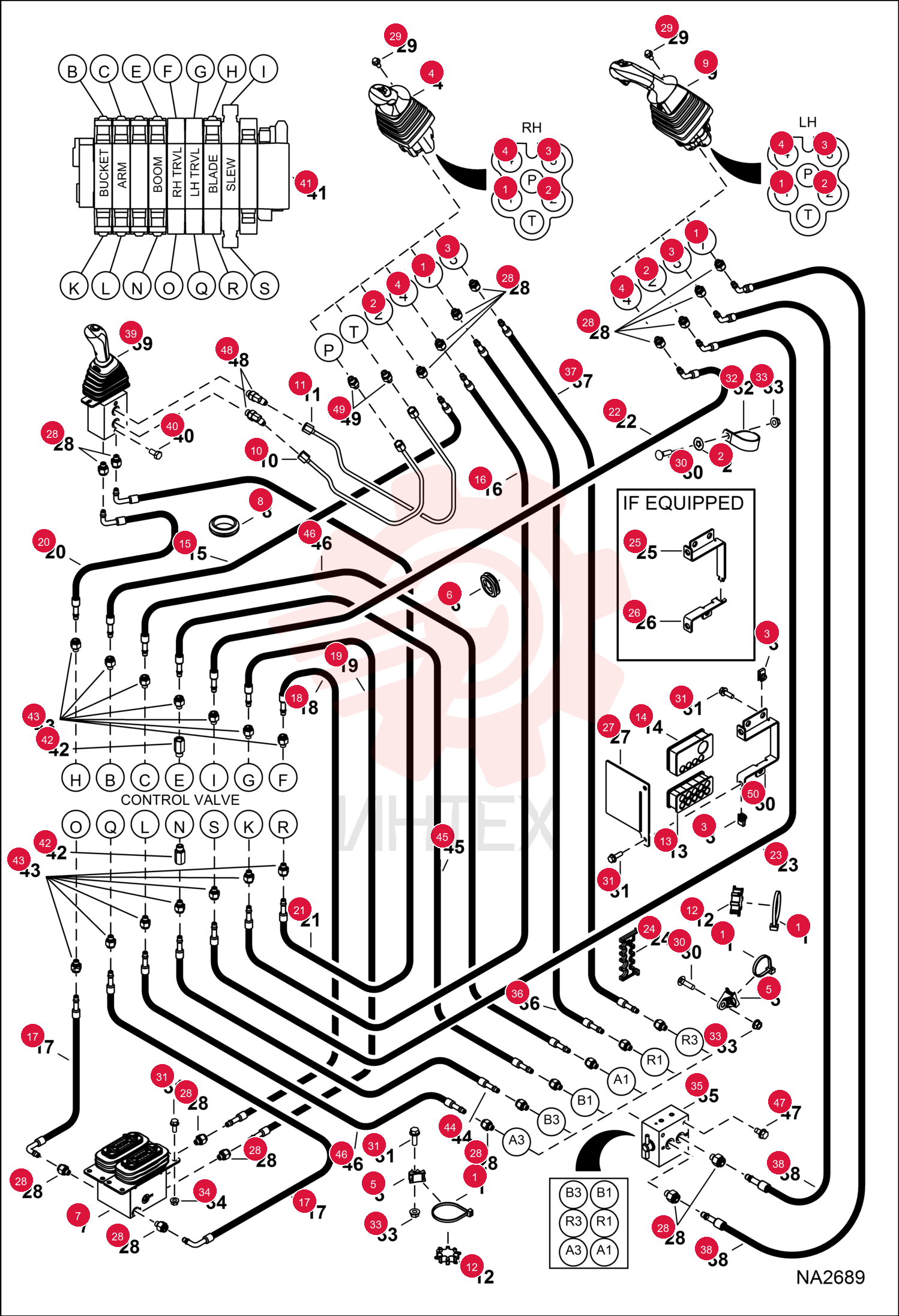

STRAP, TIE 6624289 (12)

STRAP, TIE 6624289 (12)

STRAP, TIE 6624289 (12)

1 6624289

  • 6624289 - STRAP
  • TIE

2 6675859

  • 6675859 - RETAINER

3 6676169

  • 6676169 - NUT

4 7024441

  • 7024441 - JOYSTICK
  • RH ASSY

5 6678818

  • 6678818 - MOUNT

6 6681886

  • 6681886 - GROMMET

7 6697935

  • 6697935 - VALVE
  • PEDAL DUAL

8 6806443

  • 6806443 - GROMMET

9 7024440

  • 7024440 - JOYSTICK
  • LH ASSY

10 7191228

  • 7191228 - TUBELINE
  • HYD

11 7191229

  • 7191229 - TUBELINE
  • HYD

12 7175013

  • 7175013 - GUIDE
  • HOSE

13 7223146

  • 7223146 - GUIDE
  • HOSE
  • Was 7175014

14 7175214

  • 7175214 - HOSE
  • HYD
  • Was 7175183

15 7175184

  • 7175184 - HOSE
  • HYD

16 7175186

  • 7175186 - HOSE
  • HYD

17 7175191

  • 7175191 - HOSE
  • HYD

18 7175192

  • 7175192 - HOSE
  • HYD

19 7175193

  • 7175193 - HOSE
  • HYD

20 7175194

  • 7175194 - HOSE
  • HYD

21 7175195

  • 7175195 - HOSE
  • HYD

22 7175196

  • 7175196 - HOSE
  • HYD

23 7178575

  • 7178575 - CLIP
  • HOSE

24 7178918

  • 7178918 - BRACKET

25 7178919

  • 7178919 - BRACKET

26 7178989

  • 7178989 - PLATE

27 10L0604

  • 10L0604 - FITTING
  • HYD CONNECTOR

28 78K4

  • 78K4 - O'RING

29 7011053

  • 7011053 - CLIP

30 7344615

  • 7344615 - CAP PLASTIC

31 26GM8020

  • 26GM8020 - SCREW SELF TAPPING

32 28CM830

  • 28CM830 - BOLT

33 29CM825

  • 29CM825 - SCREW HEX HD W/F 8.8

34 30H85

  • 30H85 - CLAMP

35 43DM8

  • 43DM8 - NUT FLANGED HEX

36 51DM8

  • 51DM8 - NUT HX THDLK PREAPPL

37 7193055

  • 7193055 - VALVE
  • JPS
  • Was 7008308

38 7164903

  • 7164903 - HOSE
  • HYD ASSY

39 7164904

  • 7164904 - HOSE
  • HYD ASSY

40 7169837

  • 7169837 - HOSE
  • HYD ASSY

41 7024442

  • 7024442 - JOYSTICK
  • BLADE
  • - W/ angle blade

42 7008581

  • 7008581 - JOYSTICK
  • BLADE
  • - W/O angle blade

43 4CM816

  • 4CM816 - SCREW HEX HD 8.8
  • Was 1CM816

44 7253209

  • 7253209 - VALVE
  • CONTROL
  • - 9 section - W/O angle blade - Was 7009975

45 7253208

  • 7253208 - VALVE
  • CONTROL
  • - 10 section - W/angle blade - Was 7001661

46 7012494

  • 7012494 - ORIFICE

47 79K6

  • 79K6 - O RING 10

48 10L0606

  • 10L0606 - FITTING
  • HYD CONNECTOR

49 78K6

  • 78K6 - O'RING

50 7011053

  • 7011053 - CLIP

51 7175207

  • 7175207 - HOSE
  • HYD

52 7175210

  • 7175210 - HOSE
  • HYD

53 7175212

  • 7175212 - HOSE
  • HYD

54 29CM816

  • 29CM816 - SCREW FLGD HEX CAP

55 18KB0404

  • 18KB0404 - FITTING
  • HYD ELBOW

56 79K4

  • 79K4 - O RING 10

57 15KB0404

  • 15KB0404 - FTG HYD S CONNECTOR

58 79K4

  • 79K4 - O RING 10

59 7261696

  • 7261696 - MOUNT
  • HOSE
