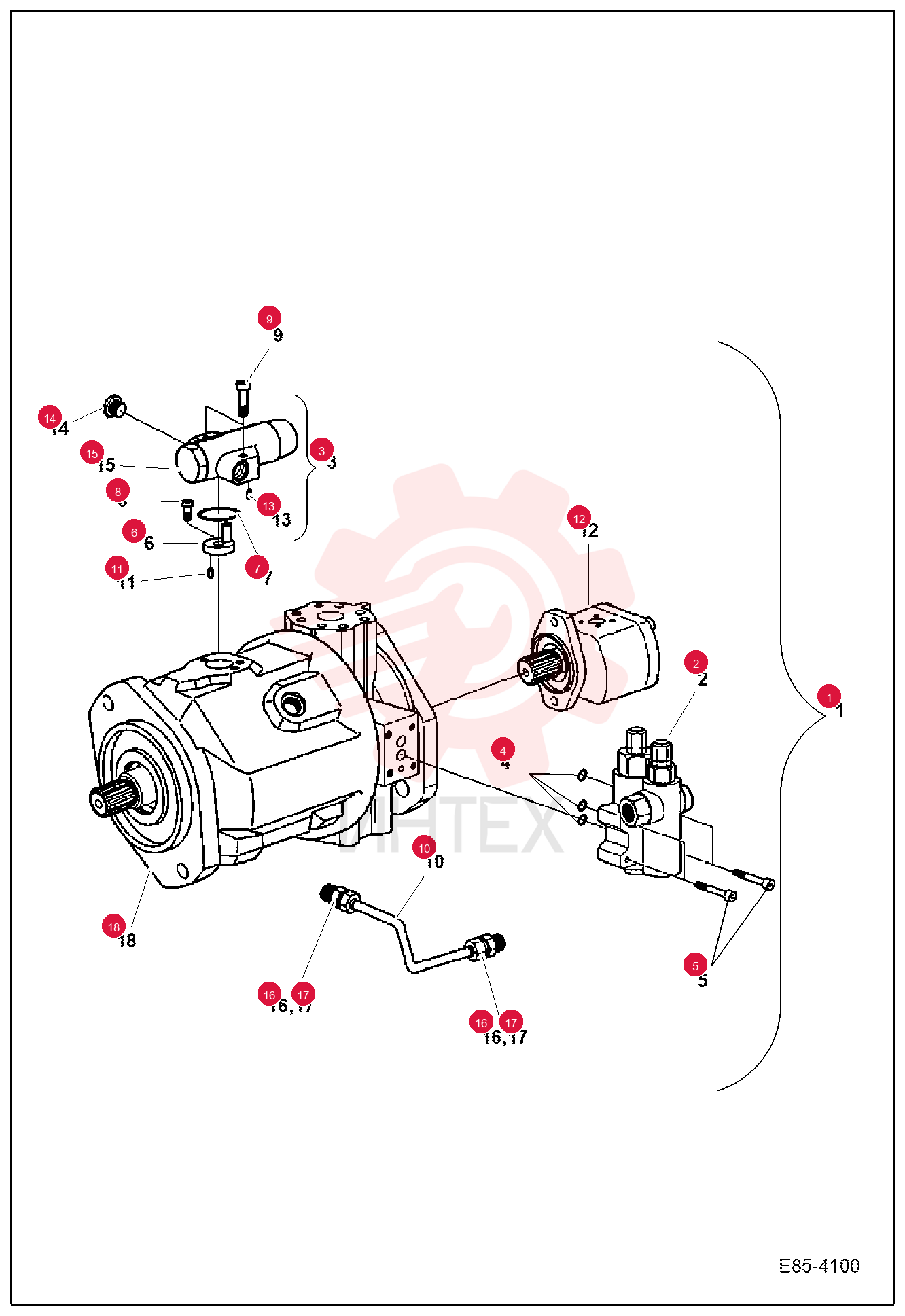

PUMP ASSEMBLY 7004963 (3)

PUMP ASSEMBLY 7004963 (3)

PUMP ASSEMBLY 7004963 (3)

1 7004963

  • 7004963 - PUMP ASSEMBLY

2 7007374

  • 7007374 - VALVE PILOT
  • W/Ref. 4
  • 5

3 7007373

  • 7007373 - VALVE PILOT
  • W/Ref. 6
  • 7
  • 8
  • 9
  • 11
  • 13
  • 15

4 7004654

  • 7004654 - O-RING

5 7007727

  • 7007727 - SCREW SOCKET

6 7007349

  • 7007349 - CARRIER LR

7 7004649

  • 7004649 - ORING

8 7007721

  • 7007721 - SCREW SOCKET

9 7007725

  • 7007725 - SCREW SOCKET

10 7007364

  • 7007364 - TUBELINE ASSY
  • W/Ref. 16
  • 17

11 7007855

  • 7007855 - PIN SELF LOCKING

12 7007375

  • 7007375 - PUMP
  • GEAR

13 7007857

  • 7007857 - PIN SELF LOCKING

14 7006848

  • 7006848 - PLUG

15 7007346

  • 7007346 - CAP INSULATION

16 7007361

  • 7007361 - FITTING GREASE

17 7007362

  • 7007362 - RING SPACER
