Bobcat
/
E85
/

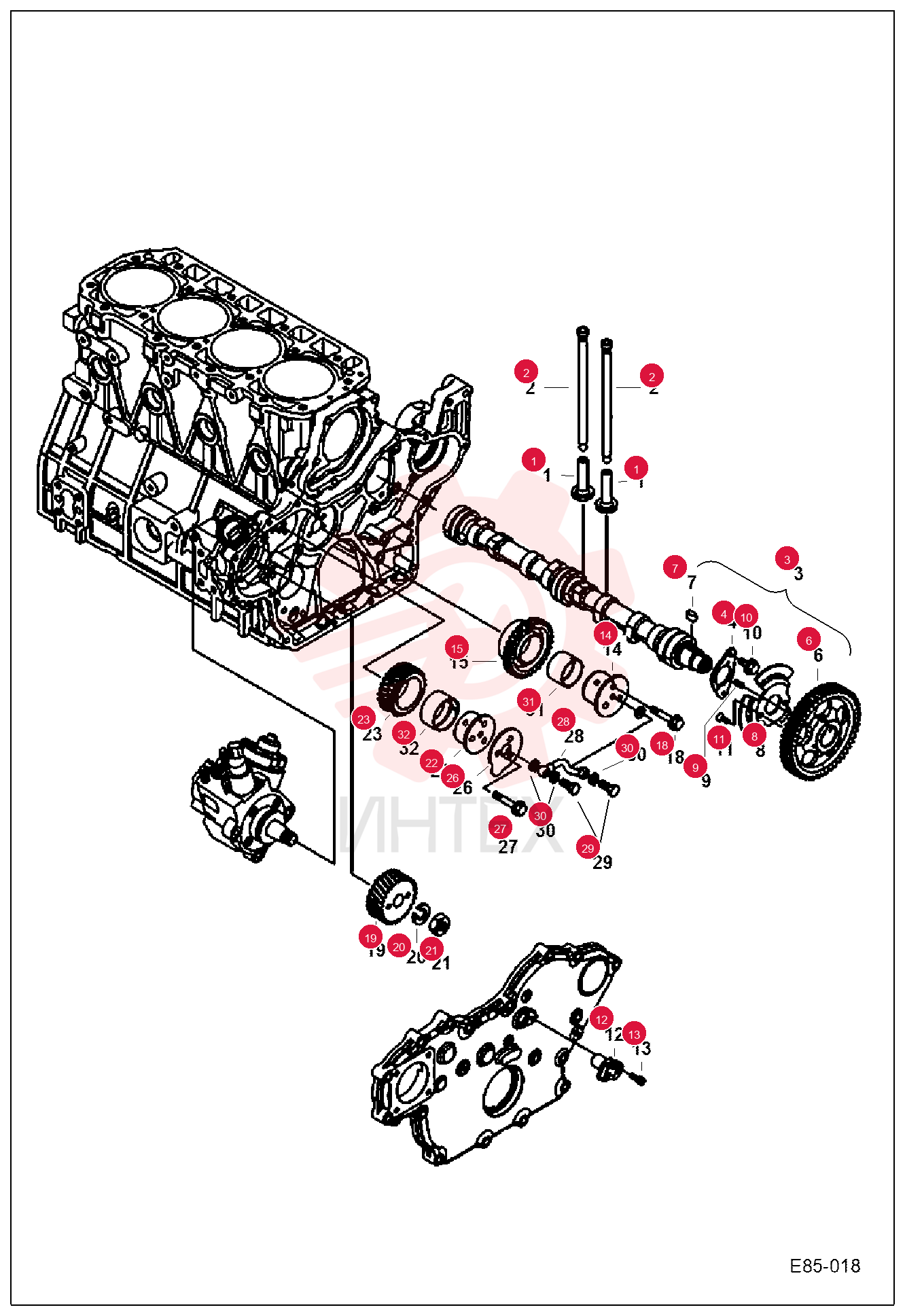

TAPPET 7004419 (2)

TAPPET 7004419 (2)

TAPPET 7004419 (2)

1 7004419

  • 7004419 - TAPPET

2 7029339

  • 7029339 - ROD

3 7028863

  • 7028863 - CAMSHAFT ASSY
  • W/Ref. 4-7

4 7004214

  • 7004214 - BEARING THRUST

5 7029055

  • 7029055 - GEAR
  • CAMSHAFT

6 7004003

  • 7004003 - KEY

7 7029293

  • 7029293 - PLATE
  • CAM

8 7007855

  • 7007855 - PIN SELF LOCKING

9 7004086

  • 7004086 - BOLT PLATED M8X16

10 7029351

  • 7029351 - SCREW

11 7029386

  • 7029386 - SENSOR
  • GEAR REV

12 7028702

  • 7028702 - BOLT

13 7029392

  • 7029392 - HUB

14 7029053

  • 7029053 - GEAR
  • IDLER

15 7029507

  • 7029507 - BOLT

16 7029057

  • 7029057 - GEAR
  • PUMP INJ

17 7006841

  • 7006841 - WASHER SPRING

18 7007053

  • 7007053 - NUT LOCK M18

19 7029393

  • 7029393 - HUB
  • W/Ref. 32

20 7029052

  • 7029052 - GEAR
  • IDLER

21 7029295

  • 7029295 - PLATE

22 7004080

  • 7004080 - BOLT PLATED M8X45

23 7029262

  • 7029262 - TUBE

24 7028718

  • 7028718 - BOLT

25 7004019

  • 7004019 - WASHER SEAL

26 7004371

  • 7004371 - BUSHING IDLE GEAR

27 7028774

  • 7028774 - BUSHING IDLE GEAR
