Главная
/
Бренды
/
Bobcat
/
E85
/

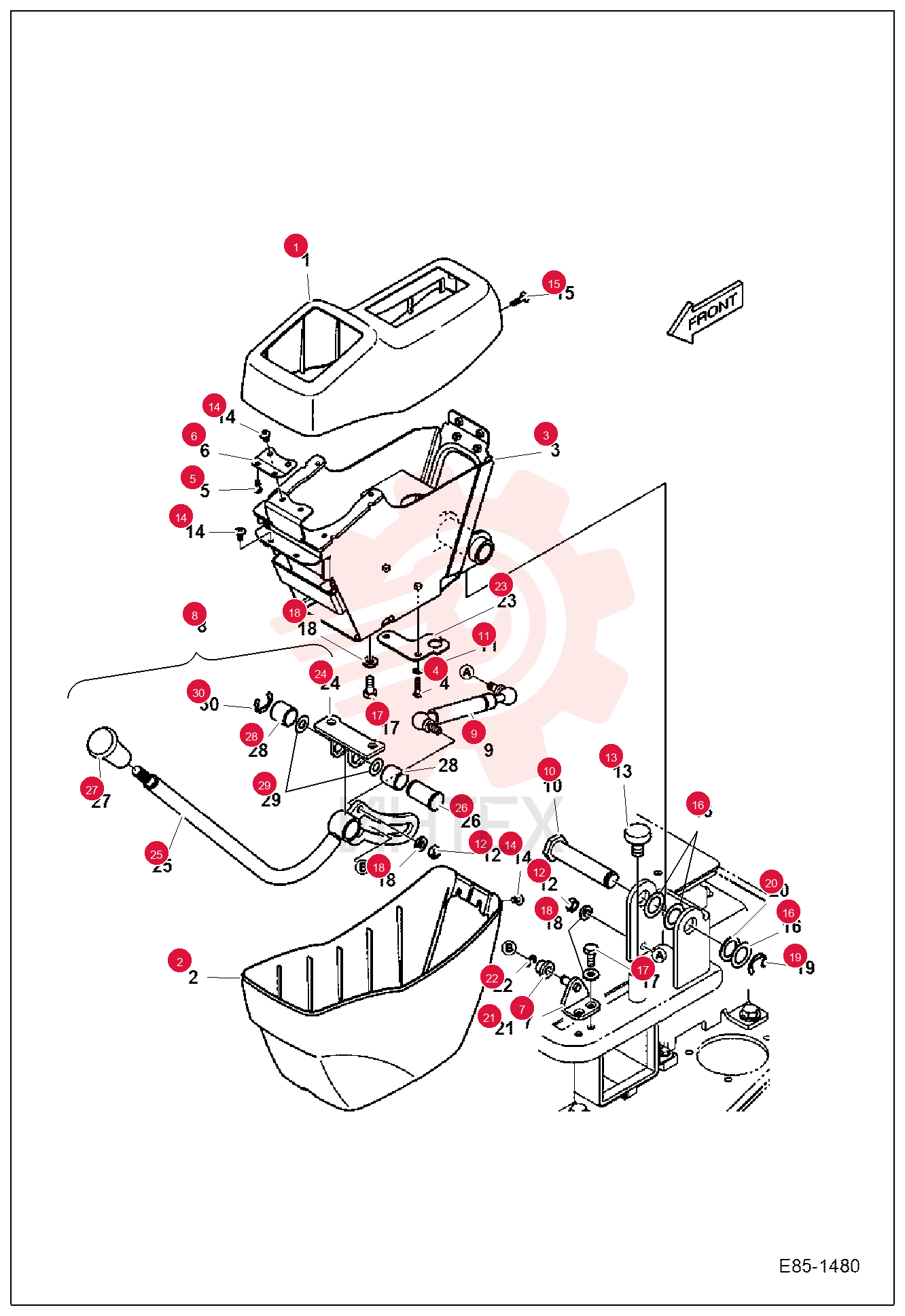

HOUSING UPPER LH 7006260 (1)

HOUSING UPPER LH 7006260 (1)

HOUSING UPPER LH 7006260 (1)

1 7006260

  • 7006260 - HOUSING UPPER LH

2 7006261

  • 7006261 - HOUSING LOWER

3 7028952

  • 7028952 - COVER
  • LH

4 7007601

  • 7007601 - BOLT

5 7007789

  • 7007789 - BOLT

6 7005893

  • 7005893 - PLATE

7 7006717

  • 7006717 - PLATE

8 7006328

  • 7006328 - LEVER ASSYSAFETY
  • W/Ref. 24-30

9 7005143

  • 7005143 - CYLINDER GAS

10 7006611

  • 7006611 - PIN

11 7007810

  • 7007810 - WASHER

12 7004562

  • 7004562 - NUT

13 7004625

  • 7004625 - STOP

14 7004548

  • 7004548 - BOLT

15 7004549

  • 7004549 - BOLT GREEN

16 7005659

  • 7005659 - SHIM

17 7004546

  • 7004546 - BOLT

18 7004515

  • 7004515 - WASHER

19 7007891

  • 7007891 - RING RETAINING

20 7004523

  • 7004523 - WASHER

21 7005661

  • 7005661 - ROLLER

22 7005663

  • 7005663 - RING

23 7013287

  • 7013287 - PLATE
  • STOPPER

24 7006325

  • 7006325 - PLATE

25 7006326

  • 7006326 - LEVER

26 7006324

  • 7006324 - PIN

27 7005674

  • 7005674 - HANDLE GRIP

28 7004460

  • 7004460 - BUSHING

29 7004479

  • 7004479 - SHIM

30 7007891

  • 7007891 - RING RETAINING
