Bobcat
/
E85
/

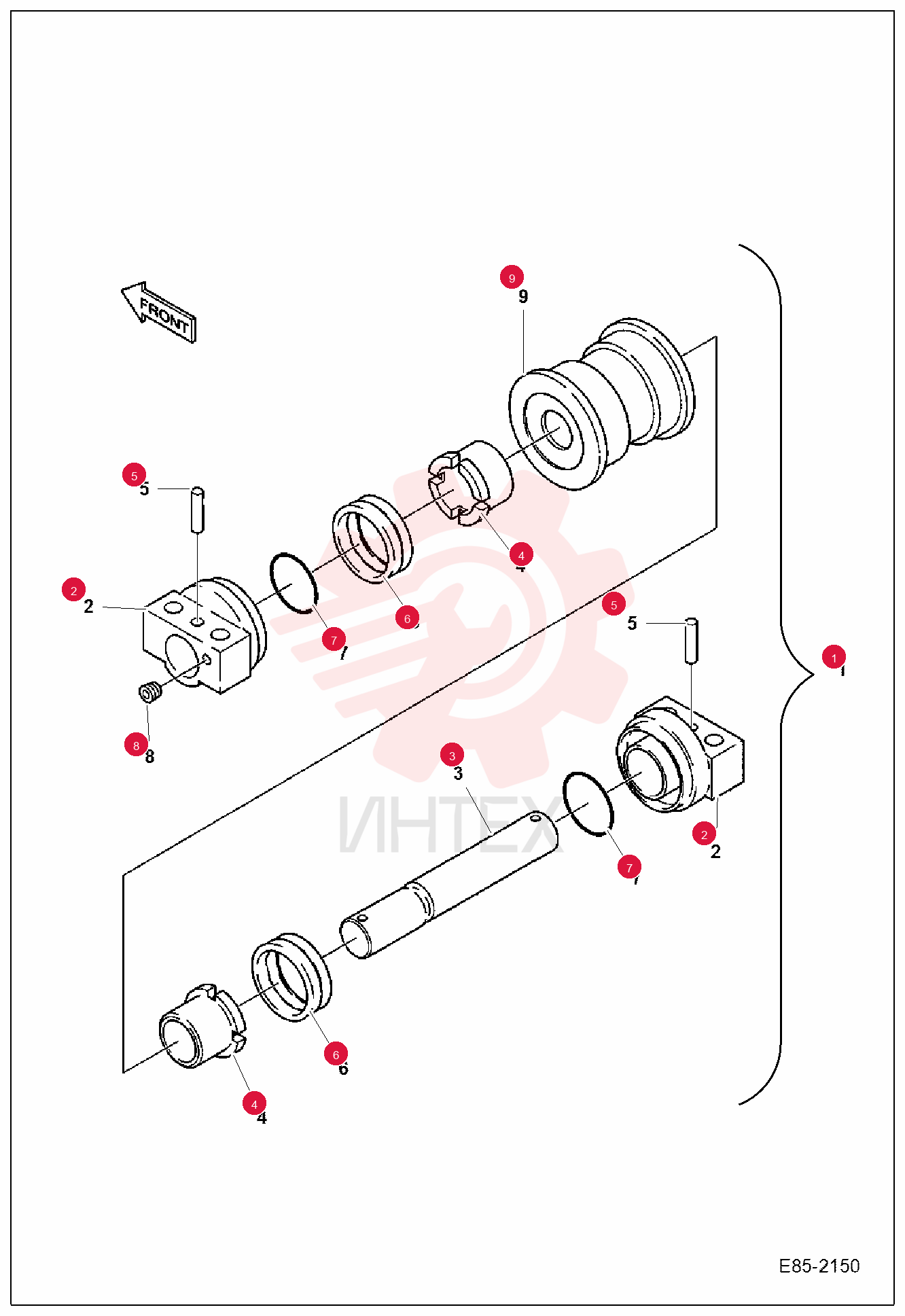

ROLLER LOWER 7004933 (2)

ROLLER LOWER 7004933 (2)

ROLLER LOWER 7004933 (2)

1 7004933

  • 7004933 - ROLLER LOWER

2 7003808

  • 7003808 - COLLAR

3 7003807

  • 7003807 - SHAFT

4 7003714

  • 7003714 - BUSHING

5 7003741

  • 7003741 - PIN

6 7004665

  • 7004665 - SEAL FLOATING

7 7007933

  • 7007933 - O-RING

8 7004673

  • 7004673 - PLUG
