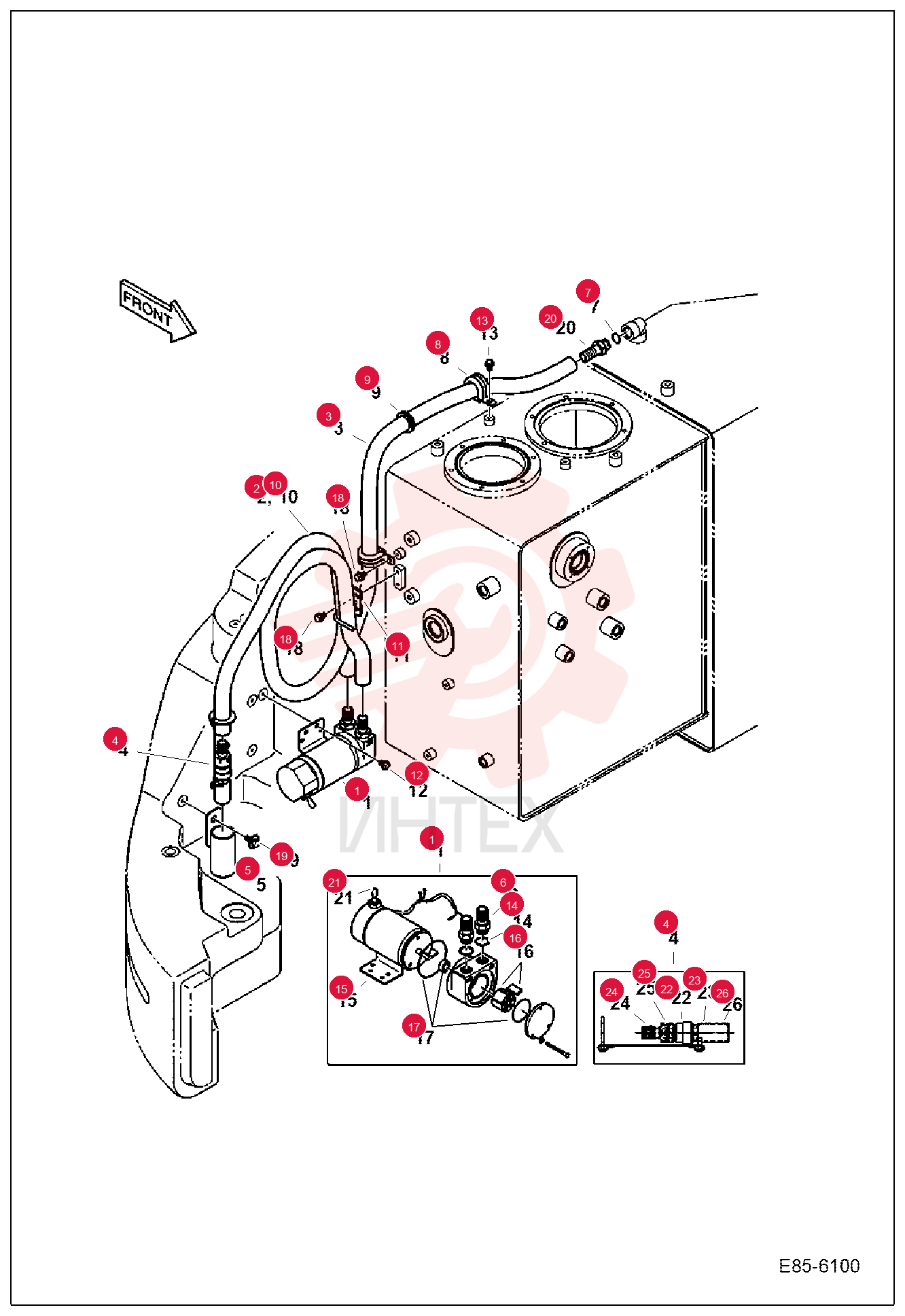

PUMP FUEL FILLER 7006285 (2)

PUMP FUEL FILLER 7006285 (2)

PUMP FUEL FILLER 7006285 (2)

1 7006285

  • 7006285 - PUMP FUEL FILLER

2 7008266

  • 7008266 - HOSE
  • FUEL

3 7029193

  • 7029193 - HOSE
  • FUEL

4 7008276

  • 7008276 - VALVE
  • CHECK

5 7029232

  • 7029232 - MOUNT

6 7004763

  • 7004763 - ADAPTER

7 7284557

  • 7284557 - O-RING
  • Was 7007911

8 7003897

  • 7003897 - CLIP

9 7004609

  • 7004609 - BUSHING RUBBER

10 7020693

  • 7020693 - PROTECTOR
  • SLEEVE

11 7028743

  • 7028743 - BRACKET

12 7005135

  • 7005135 - BOLT

13 7005629

  • 7005629 - BOLT

14 7007971

  • 7007971 - SEAL RING

15 7005007

  • 7005007 - MOTOR FUEL TRANSFER

16 7004967

  • 7004967 - KIT VANE

17 7004857

  • 7004857 - KIT
  • SEAL

18 7005135

  • 7005135 - BOLT

19 7005128

  • 7005128 - BOLT SET

20 7004748

  • 7004748 - ADAPTER

21 7008149

  • 7008149 - SWITCH
  • TOGGLE

22 7004860

  • 7004860 - VALVE CHECK

23 7004878

  • 7004878 - FILTER STRAINER

24 7004763

  • 7004763 - ADAPTER

25 7007971

  • 7007971 - SEAL RING

26 7004621

  • 7004621 - CAP STRAINER
