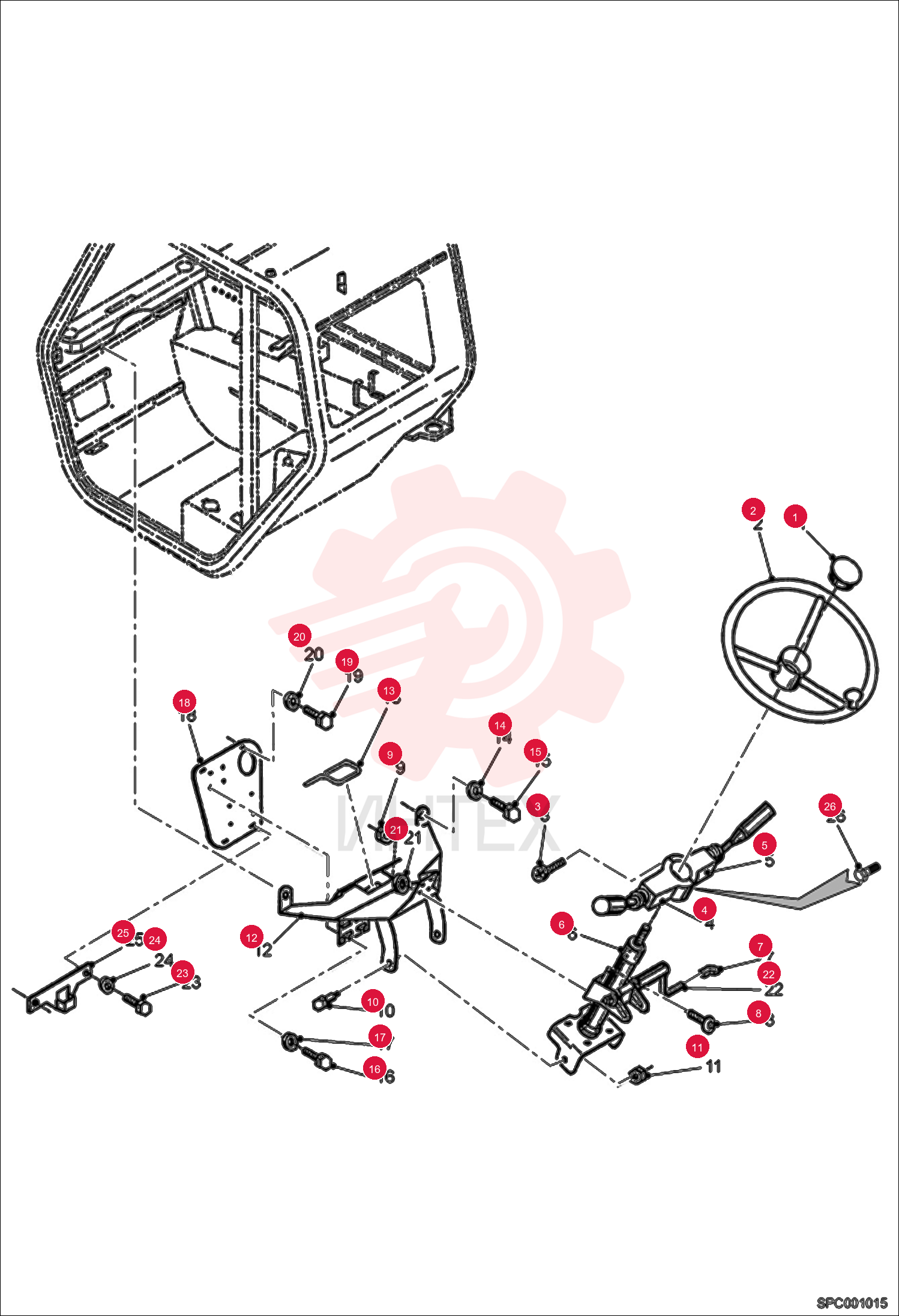

Steering wheel cap 94018.9 (2)

Steering wheel cap 94018.9 (2)

Steering wheel cap 94018.9 (2)

1 94018.9

  • 94018.9 - Steering wheel cap

2 6908477

  • 6908477 - STEERING WHEEL

3 6909993

  • 6909993 - SCREW TCB M5X40

4 98241.3

  • 98241.3 - Reverser

5 98242.9

  • 98242.9 - Drive/lighting control lever

6 6908476

  • 6908476 - STEERING SHAFT

7 97502.9

  • 97502.9 - Knob
  • steering column adjust

8 63359.4

  • 63359.4 - Screw

9 01681.6

  • 01681.6 - Nut

10 97210.9

  • 97210.9 - Pin

11 01681.6

  • 01681.6 - Nut

12 6915747

  • 6915747 - STEERING COLUMN SUPPORT

13 6909935

  • 6909935 - SEAL
  • CRIMPED L 390

14 01697.2

  • 01697.2 - Washer

15 4CM820

  • 4CM820 - SCREW HEX HD 8.8

16 4CM820

  • 4CM820 - SCREW HEX HD 8.8

17 01697.2

  • 01697.2 - Washer

18 6909977

  • 6909977 - BRACKET

19 4CM820

  • 4CM820 - SCREW HEX HD 8.8

20 01697.2

  • 01697.2 - Washer

21 01697.2

  • 01697.2 - Washer

22 4CM825

  • 4CM825 - BOLT HEX HEAD

23 01697.2

  • 01697.2 - Washer

24 6910649

  • 6910649 - PEDAL STOP

25 6909993

  • 6909993 - SCREW TCB M5X40
