Bobcat
/
T40140
/

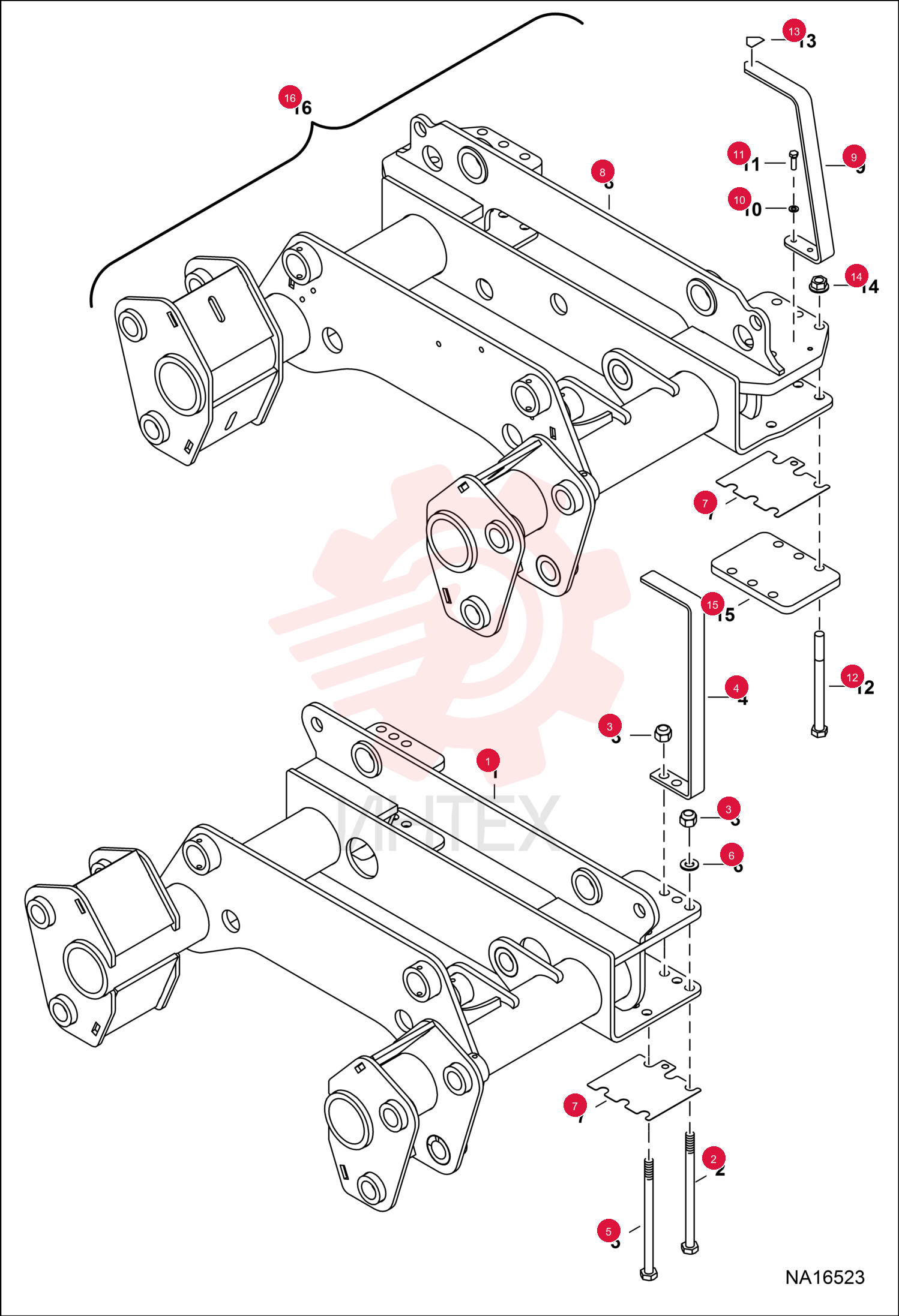

SCREW HEX HD 8.8 (11)

SCREW HEX HD 8.8 (11)

SCREW HEX HD 8.8 (11)

1 1CM20220

  • 1CM20220 - SCREW HEX HD 8.8

2 6923941

  • 6923941 - NUT

3 6925407

  • 6925407 - HORIZONTAL INDICATOR

4 76680.8

  • 76680.8 - SCREW

5 000350-08C

  • 000350-08C - WASHER

6 7225544

  • 7225544 - PLATE SUPPORT

7 7362649-B

  • 7362649-B - FRAME STABILIZER

8 7350086

  • 7350086 - PLATE INDICATOR

9 18EM1020

  • 18EM1020 - WASHER

10 4CM1035

  • 4CM1035 - SCREW

11 7CM20250

  • 7CM20250 - BOLT FLANGE

12 7233808

  • 7233808 - DECAL

13 43DM20

  • 43DM20 - NUT

14 7350087

  • 7350087 - PATCH STABILIZATION

15 7365659-B

  • 7365659-B - KIT FRAME LVL
