Bobcat
/
T40140
/

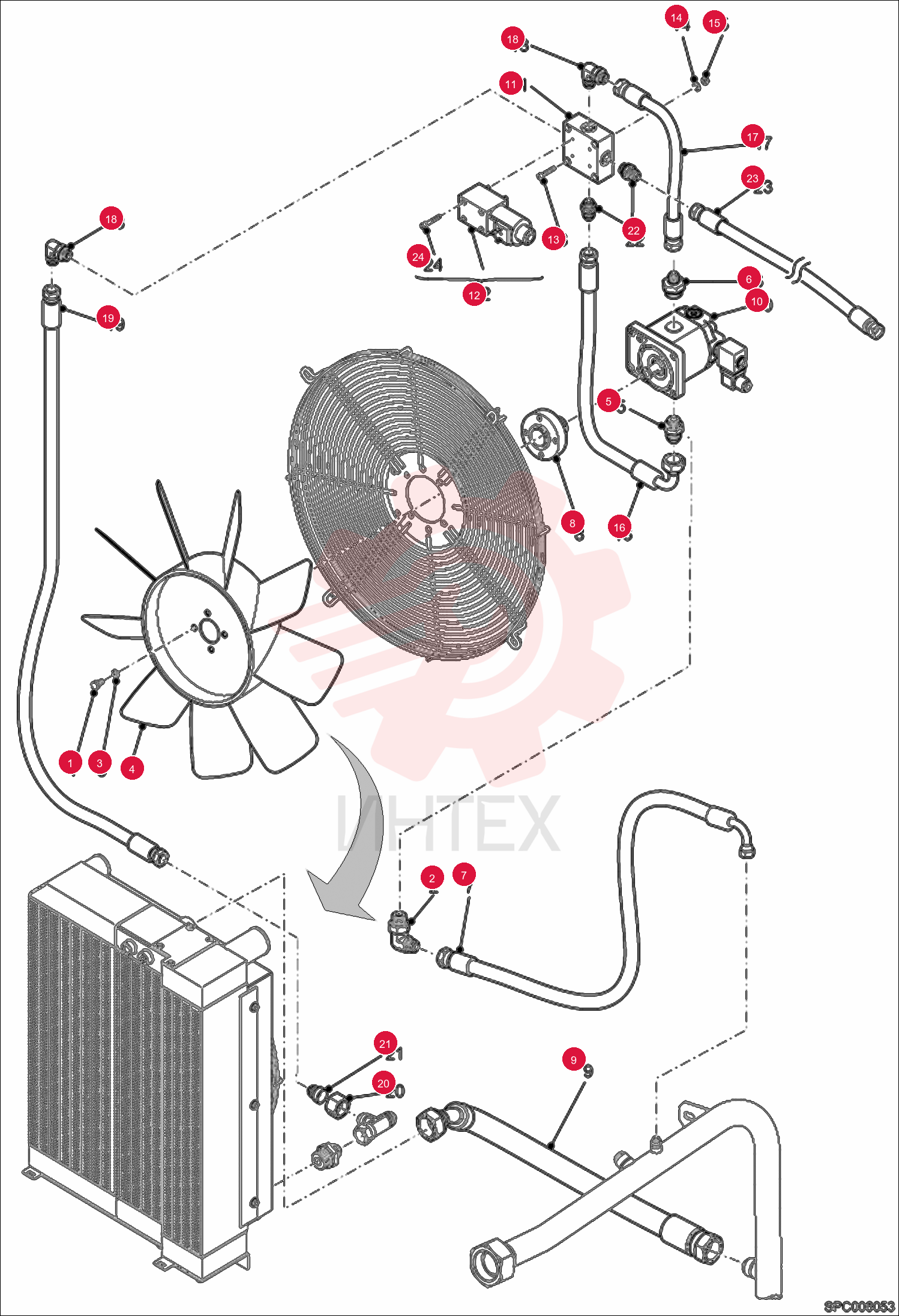

SCREW HEX HD 8.8 (5)

SCREW HEX HD 8.8 (5)

SCREW HEX HD 8.8 (5)

1 4CM816

  • 4CM816 - SCREW HEX HD 8.8

2 010370-93A

  • 010370-93A - ELBOW PIECE

3 89519.3

  • 89519.3 - Washer

4 7101769

  • 7101769 - FAN

5 100375-40U

  • 100375-40U - UNION

6 100375-59Q

  • 100375-59Q - UNION 3/4 JIC 3/4 BSP

7 6910622

  • 6910622 - HOSE TJ3/4 9.5 TJ90 9/16 L800

8 6911798

  • 6911798 - FLANGE FAN

9 6928048

  • 6928048 - HOSE

10 6916976

  • 6916976 - MOTOR
  • HYD

11 6916977

  • 6916977 - Hydraulic motor (1 speed)

12 6916978

  • 6916978 - HYDRAULIC MOTOR

13 98348.6

  • 98348.6 - Support

14 98355.1

  • 98355.1 - Electro distributor

15 13669.7

  • 13669.7 - Screw

16 01696.4

  • 01696.4 - Washer

17 100345-06W

  • 100345-06W - NUT

18 6911028

  • 6911028 - HOSE

19 92995.0

  • 92995.0 - Hose

20 7229301

  • 7229301 - FITTING HYDRAULIC ELBOW

21 96759.6

  • 96759.6 - Hose

22 100345-34C

  • 100345-34C - NUT D20-1.1/16 JIC

23 100375-15S

  • 100375-15S - ADAPTER 1.1/16 JIC 3/4 JIC (20-12)

24 7229423

  • 7229423 - FITTING

25 6920192

  • 6920192 - HOSE

26 79160.8

  • 79160.8 - Screw
