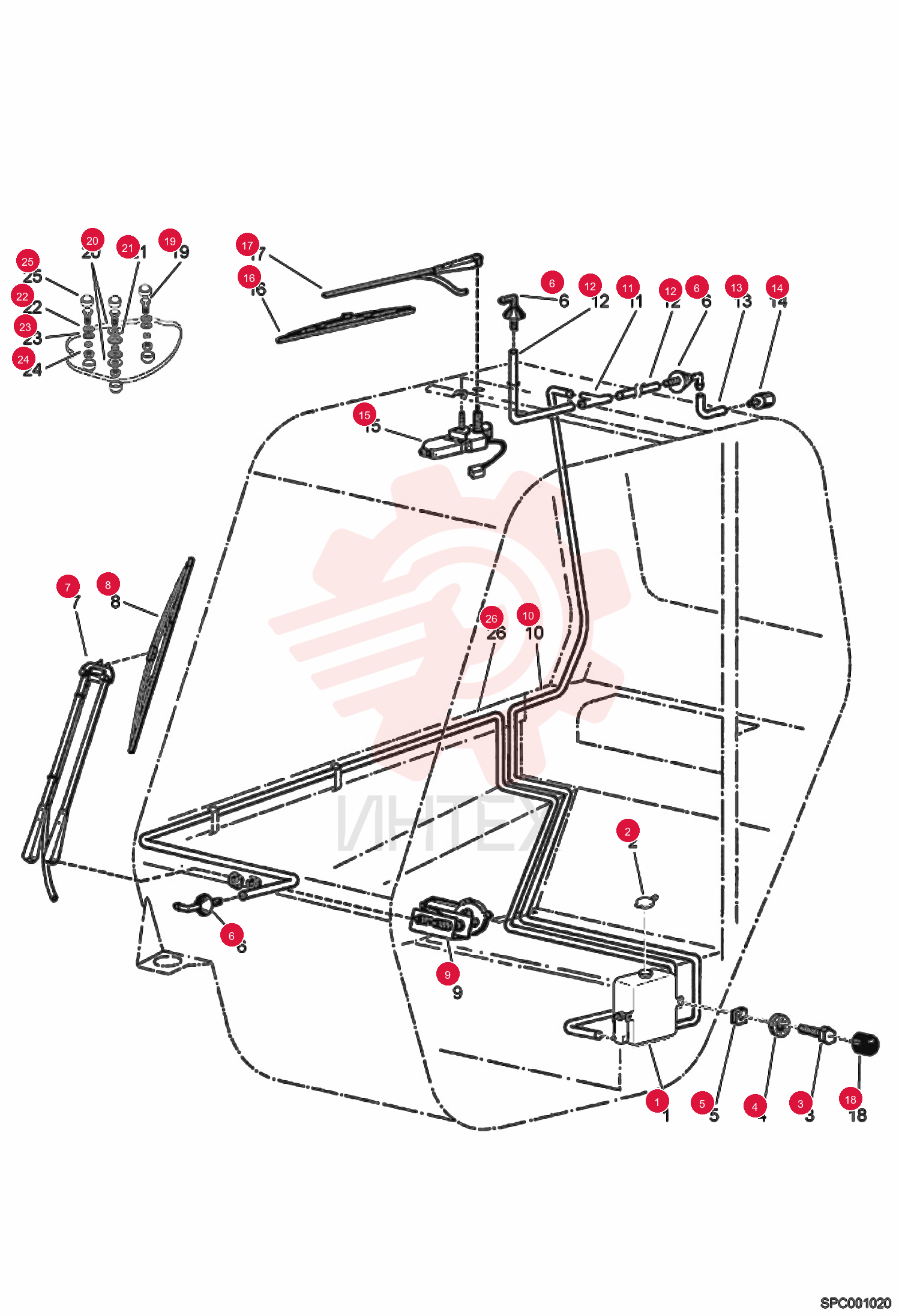

Windshield spray reservoir 97196.0 (1)

Windshield spray reservoir 97196.0 (1)

Windshield spray reservoir 97196.0 (1)

1 97196.0

  • 97196.0 - Windshield spray reservoir

2 6925355

  • 6925355 - CAP

3 6910505

  • 6910505 - SCREW

4 01717.8

  • 01717.8 - Washer

5 6909903

  • 6909903 - CLIPS

6 75926.6

  • 75926.6 - Adapter

7 75898.7

  • 75898.7 - Windshield wiper arm

8 75895.3

  • 75895.3 - Front Wiper Blade

9 6916061

  • 6916061 - MOTOR WIPER

10 97212.5

  • 97212.5 - Hose

11 63848.6

  • 63848.6 - T- union

12 6910982

  • 6910982 - HOSE
  • WINDSHIELD SPRAYER

13 6910983

  • 6910983 - HOSE
  • WINDSHIELD SPRAYER

14 97217.4

  • 97217.4 - Jet

15 6915535

  • 6915535 - WIPER MOTOR

16 7359250

  • 7359250 - BLADE WIPER

17 6911006

  • 6911006 - WINDSCREEN ARM

18 63332.1

  • 63332.1 - Cap

19 4CM820

  • 4CM820 - SCREW HEX HD 8.8

20 7235069

  • 7235069 - WASHER

21 6909964

  • 6909964 - WASHER
  • FIBER 9X30X2

22 000350-20Q

  • 000350-20Q - WASHER

23 6909963

  • 6909963 - WASHER
  • FIBER 13X22X2

24 4DM8

  • 4DM8 - NUT HEX

25 63333.9

  • 63333.9 - Nut cap

26 6910981

  • 6910981 - HOSE
  • WINDSHIELD SPRAYER
