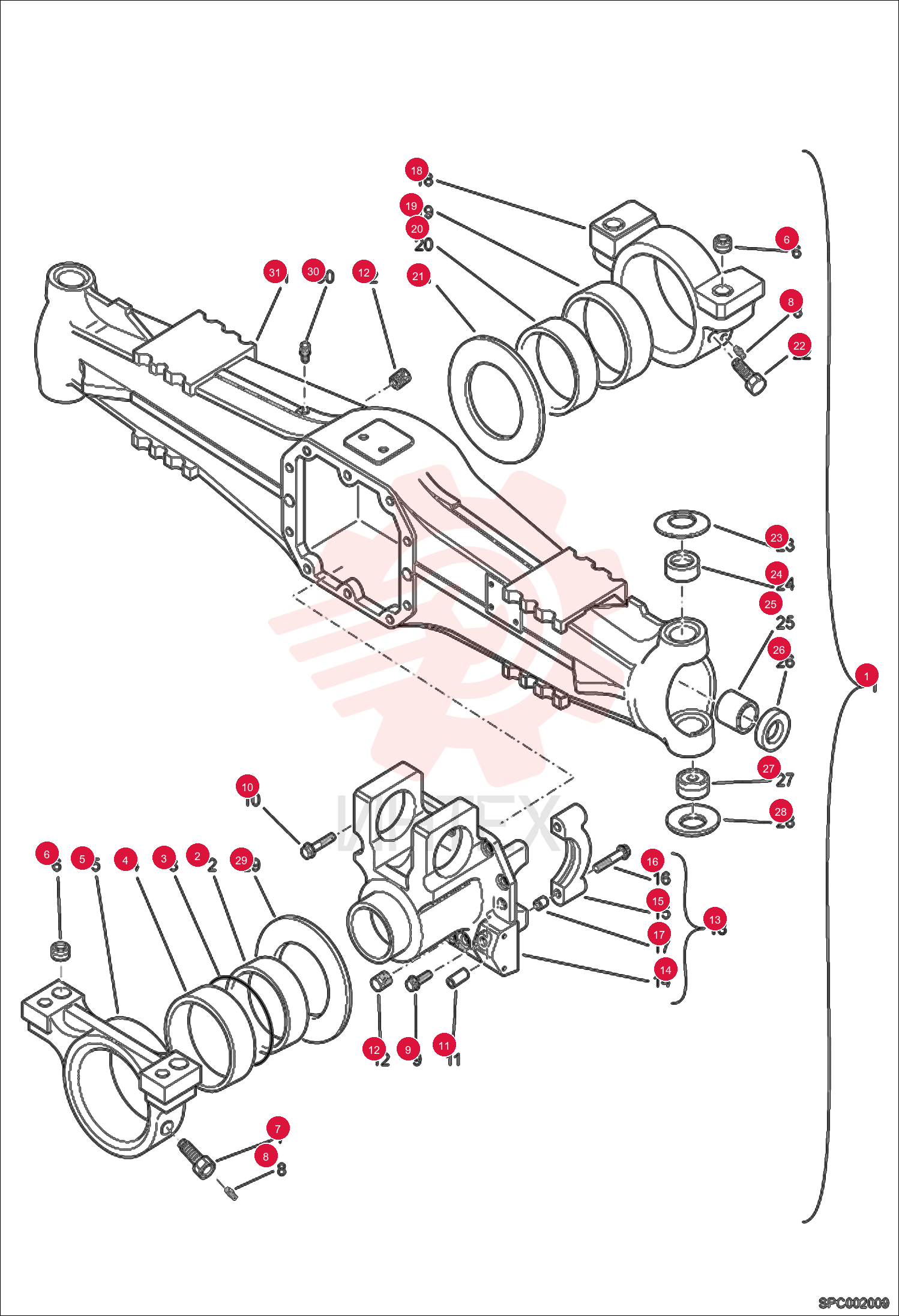

Rear axle assy 97762.9 (2)
1 97762.9
- 97762.9 - Rear axle assy
2 64827.9
- 64827.9 - Bushing
3 64829.5
- 64829.5 - O-ring
4 64828.7
- 64828.7 - Bushing
5 64830.3
- 64830.3 - Support
6 64824.6
- 64824.6 - Sleeve
7 64831.1
- 64831.1 - Screw
8 64823.8
- 64823.8 - Grease Nipple
9 100338-42A
- 100338-42A - SCREW
10 89885.8
- 89885.8 - Screw
11 100273-25R
- 100273-25R - PIN
12 100374-20P
- 100374-20P - PLUG
13 81544.9
- 81544.9 - Support
14 89959.1
- 89959.1 - Screw
15 101288-10B
- 101288-10B - BUSHING
16 75746.8
- 75746.8 - Support
17 75747.6
- 75747.6 - Bushing
18 75748.4
- 75748.4 - Bushing
19 75749.2
- 75749.2 - Washer
20 64822.0
- 64822.0 - Screw
21 66039.9
- 66039.9 - Washer
22 6910722
- 6910722 - SEAL BUSHING
23 100288-63N
- 100288-63N - BUSHING
24 98660.4
- 98660.4 - Bushing
25 66035.7
- 66035.7 - Bearing
26 66033.2
- 66033.2 - Washer
27 75739.3
- 75739.3 - Washer
28 100505-24H
- 100505-24H - BREATHER
29 97408.9
- 97408.9 - Body
