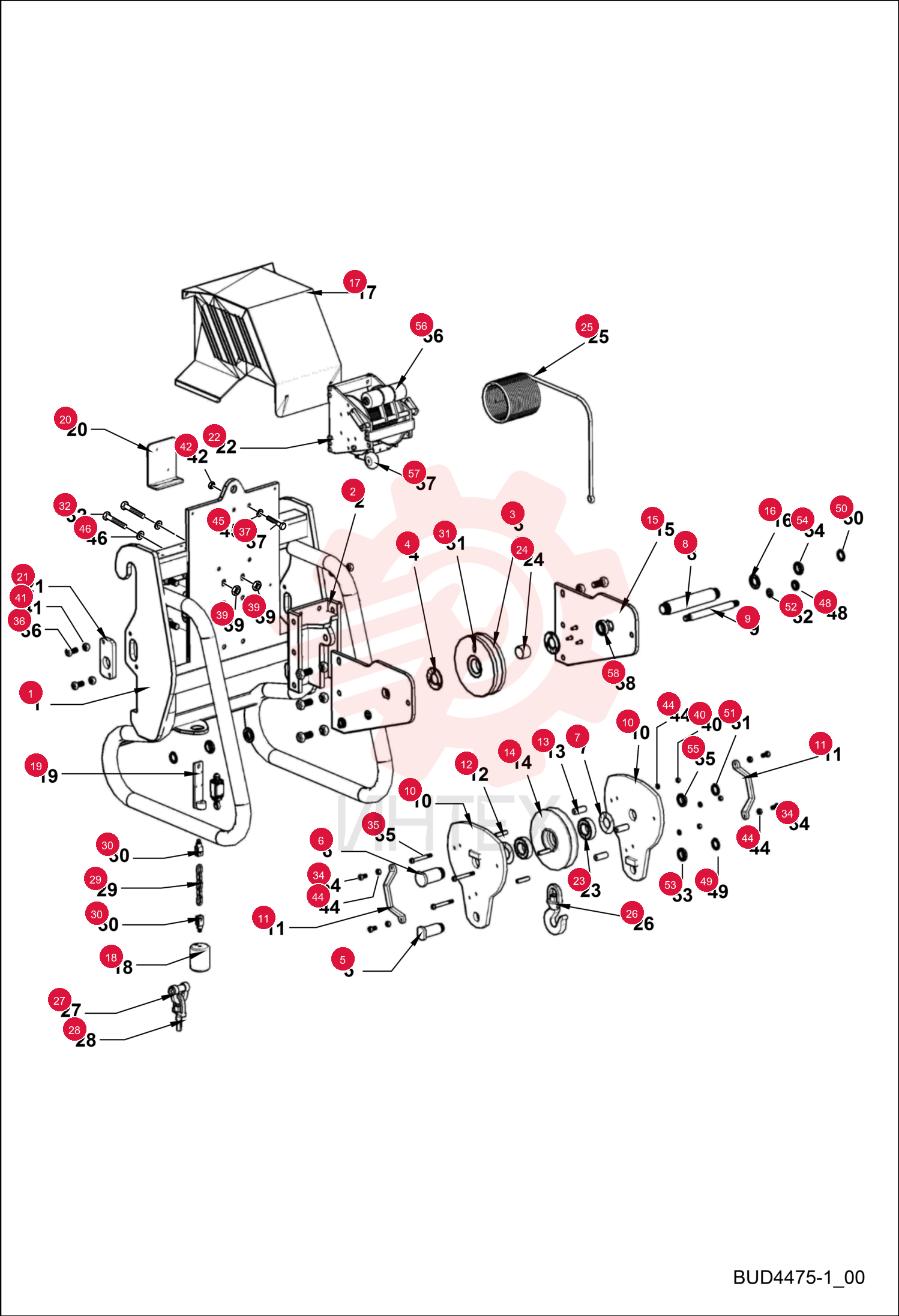

SUPPORT 7272336 (2)

SUPPORT 7272336 (2)

SUPPORT 7272336 (2)

1 7272336

  • 7272336 - SUPPORT

2 7272337

  • 7272337 - SUPPORT

3 7272338

  • 7272338 - PULLEY

4 7272339

  • 7272339 - FLANGE

5 7272340

  • 7272340 - PIN

6 7272341

  • 7272341 - PIN

7 7272342

  • 7272342 - WASHER

8 7272343

  • 7272343 - PIN

9 7272344

  • 7272344 - TIE ROD

10 7363478

  • 7363478 - BODY SIDE

11 7272347

  • 7272347 - HANDLE

12 7272348

  • 7272348 - LOOSE PULLEY

13 7272349

  • 7272349 - SPACER

14 7272350

  • 7272350 - PULLEY

15 7272351

  • 7272351 - SIDE

16 7272352

  • 7272352 - WASHER

17 7272353

  • 7272353 - COVER

18 7272354

  • 7272354 - COUNTERWEIGHT

19 7272324

  • 7272324 - PLATE

20 7272356

  • 7272356 - PLATE

21 7272327

  • 7272327 - REINFORCEMENT PLATE

22 7363479

  • 7363479 - WINCH

23 7272358

  • 7272358 - BEARING

24 7272359

  • 7272359 - BUSHING

25 7363480

  • 7363480 - ROPE

26 7272361

  • 7272361 - HOOK

27 7272362

  • 7272362 - HOOK BOLT

28 7272335

  • 7272335 - JOINT

29 7272364

  • 7272364 - CHAIN

30 7272332

  • 7272332 - FORK

31 7272329

  • 7272329 - GREASER

32 7363481

  • 7363481 - SCREW

33 7018086

  • 7018086 - SCREW

34 7014534

  • 7014534 - SCREW

35 7271532

  • 7271532 - SCREW

36 7018131

  • 7018131 - SCREW

37 7271534

  • 7271534 - SCREW

38 7271539

  • 7271539 - SCREW

39 7363482

  • 7363482 - NUT

40 7014561

  • 7014561 - NUT
  • SELF LOCKING

41 7018132

  • 7018132 - NUT

42 7018318

  • 7018318 - NUT

43 7363483

  • 7363483 - NUT

44 7018061

  • 7018061 - WASHER

45 7018328

  • 7018328 - WASHER

46 7019141

  • 7019141 - WASHER

47 7271556

  • 7271556 - WASHER

48 7271558

  • 7271558 - RING NUT

49 7014567

  • 7014567 - NUT
  • CAGED

50 7014568

  • 7014568 - NUT
  • RING

51 7019754

  • 7019754 - NUT
  • RING

52 7271691

  • 7271691 - SEEGER RING

53 7271692

  • 7271692 - SEEGER RING

54 7271693

  • 7271693 - SEEGER RING

55 7020137

  • 7020137 - RING
  • SNAP

56 7363484

  • 7363484 - SLEEVE

57 7363485

  • 7363485 - KIT SWITCH LIMIT

58 7363486

  • 7363486 - SHIM
