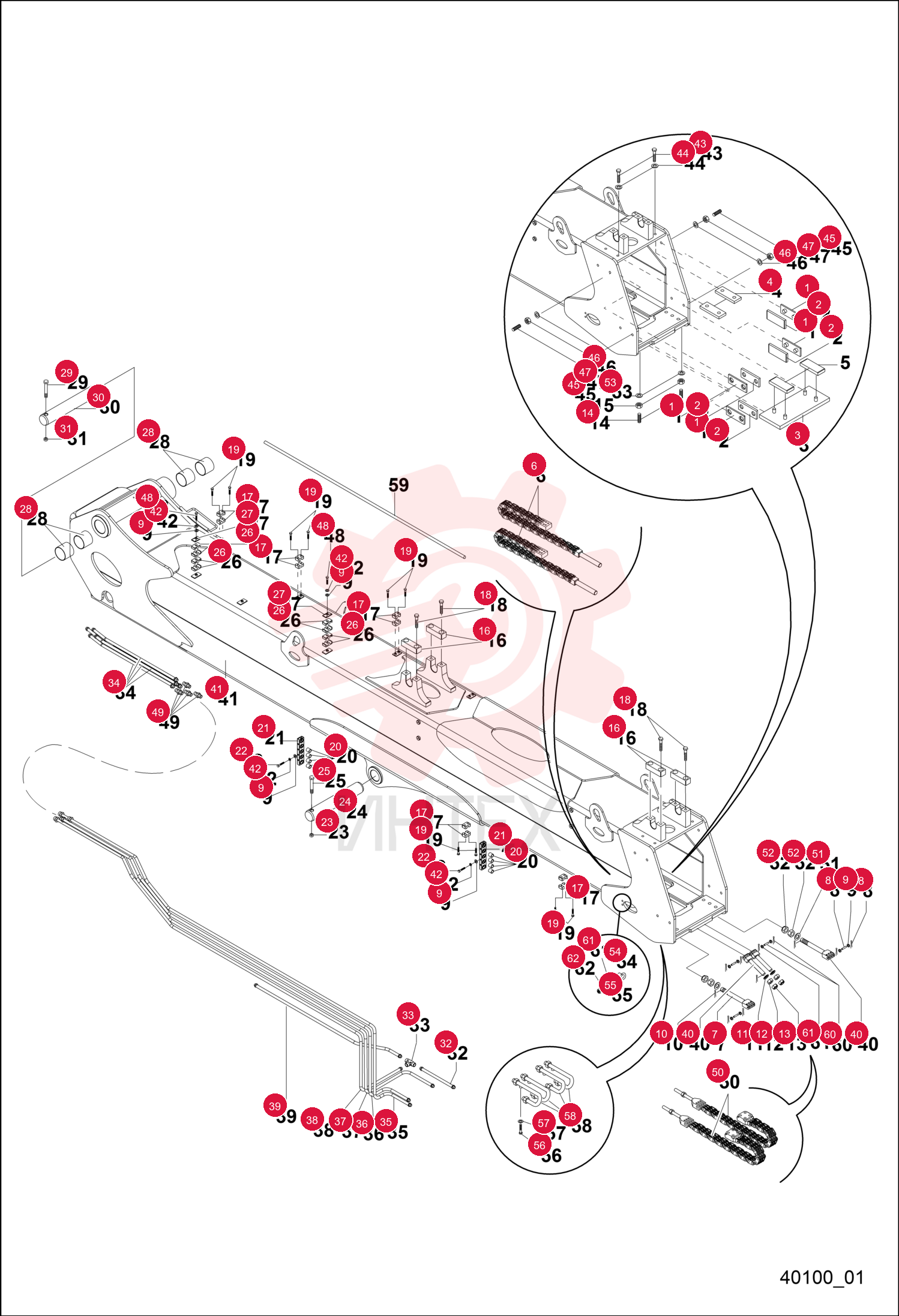

SUPPORT 7279306 (2)

SUPPORT 7279306 (2)

SUPPORT 7279306 (2)

1 7279306

  • 7279306 - SUPPORT

2 7020577

  • 7020577 - PAD
  • WEAR

3 7020588

  • 7020588 - PLATE

4 7020589

  • 7020589 - PAD
  • WEAR

5 7020585

  • 7020585 - PAD
  • WEAR

6 7014965

  • 7014965 - CHAIN

7 7021563

  • 7021563 - TENSIONER
  • CHAIN

8 7021565

  • 7021565 - PIN
  • LOCK

9 7018287

  • 7018287 - WASHER

10 7021572

  • 7021572 - PIN
  • COTTER

11 7020206

  • 7020206 - WASHER

12 7020582

  • 7020582 - NUT

13 7021449

  • 7021449 - NUT

14 7020581

  • 7020581 - PIN
  • DOWEL

15 7015045

  • 7015045 - PLATE
  • SAFETY

16 7021569

  • 7021569 - COLLAR

17 7020590

  • 7020590 - SCREW

18 7018324

  • 7018324 - SCREW

19 7014984

  • 7014984 - BUSHING

20 7014983

  • 7014983 - BRACKET

21 7019670

  • 7019670 - SCREW

22 7014559

  • 7014559 - NUT

23 7014906

  • 7014906 - PIN

24 7014539

  • 7014539 - SCREW

25 7014978

  • 7014978 - COLLAR

26 7014982

  • 7014982 - PLATE
  • SAFETY

27 7015006

  • 7015006 - BUSHING

28 7014541

  • 7014541 - SCREW

29 7014908

  • 7014908 - PIN

30 7014560

  • 7014560 - NUT

31 7014874

  • 7014874 - PIPE

32 7021419

  • 7021419 - FITTING
  • HYD TEE

33 7014875

  • 7014875 - PIPE

34 7014887

  • 7014887 - PIPE

35 7014885

  • 7014885 - PIPE

36 7014889

  • 7014889 - PIPE

37 7014884

  • 7014884 - PIPE

38 7014878

  • 7014878 - PIPE

39 7021562

  • 7021562 - TENSIONER
  • CHAIN

40 7014589

  • 7014589 - BOOM
  • FIXED

41 7019739

  • 7019739 - WASHER

42 7019682

  • 7019682 - SCREW

43 7020214

  • 7020214 - WASHER

44 7020579

  • 7020579 - PIN
  • DOWEL

45 7020580

  • 7020580 - WASHER

46 7019729

  • 7019729 - NUT

47 7021428

  • 7021428 - SCREW

48 7021417

  • 7021417 - FITTING
  • HYD

49 7014964

  • 7014964 - CHAIN

50 7020205

  • 7020205 - WASHER

51 7021450

  • 7021450 - NUT

52 7020583

  • 7020583 - WASHER

53 7014980

  • 7014980 - CLAMP

54 7014969

  • 7014969 - COLLAR

55 7019675

  • 7019675 - SCREW

56 7019741

  • 7019741 - WASHER

57 7014872

  • 7014872 - PIPE

58 7015190

  • 7015190 - PIPE

59 7021564

  • 7021564 - PIN
  • LOCK

60 7018061

  • 7018061 - WASHER

61 7014561

  • 7014561 - NUT
  • SELF LOCKING
