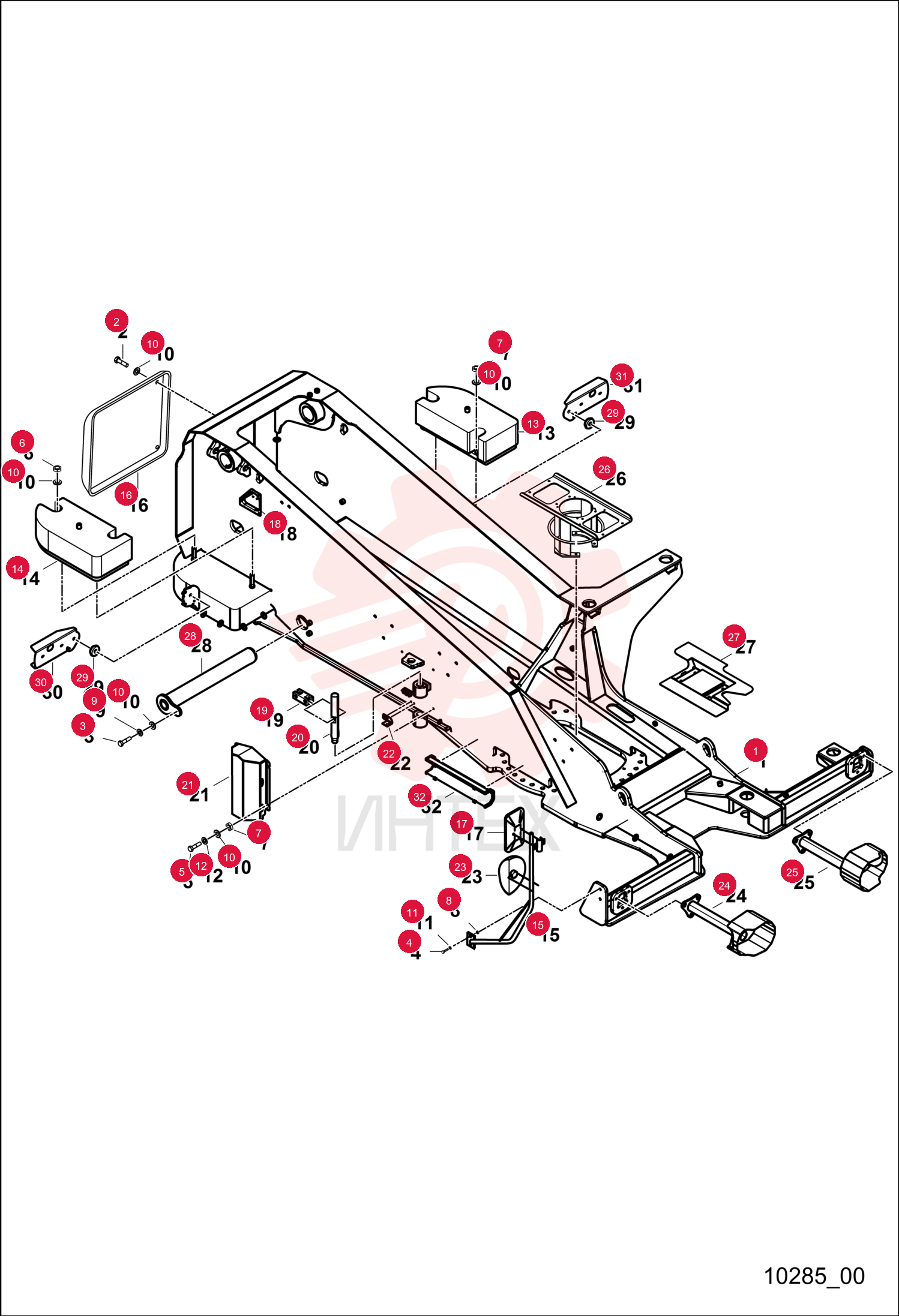

UPPER CHASSIS 7279228

UPPER CHASSIS 7279228

UPPER CHASSIS 7279228

1 7279228

  • 7279228 - UPPER CHASSIS

2 7019668

  • 7019668 - SCREW

3 7014535

  • 7014535 - SCREW

4 7019676

  • 7019676 - SCREW

5 7014555

  • 7014555 - SCREW

6 7014560

  • 7014560 - NUT

7 7014561

  • 7014561 - NUT
  • SELF LOCKING

8 7014562

  • 7014562 - NUT

9 7019739

  • 7019739 - WASHER

10 7018162

  • 7018162 - WASHER FLAT

11 7018287

  • 7018287 - WASHER

12 7014564

  • 7014564 - PUMP SERVO BRAKE

13 7279229

  • 7279229 - COUNTERWEIGHT

14 7279230

  • 7279230 - COUNTERWEIGHT

15 7019779

  • 7019779 - SUPPORT

16 7019783

  • 7019783 - COWL
  • REAR

17 7279231

  • 7279231 - REAR VIEW MIRROR

18 7279232

  • 7279232 - PLATE

19 7279233

  • 7279233 - FORMER

20 7279234

  • 7279234 - PIN

21 7279235

  • 7279235 - COVER

22 7279236

  • 7279236 - PLATE

23 7271592

  • 7271592 - REAR VIEW MIRROR

24 7279237

  • 7279237 - LIGHT SUPPORT

25 7279238

  • 7279238 - LIGHT SUPPORT

26 7279239

  • 7279239 - SUPPORT

27 7021461

  • 7021461 - HOUSING

28 7014907

  • 7014907 - PIN

29 7271648

  • 7271648 - ANTI-VIBRATION

30 7271714

  • 7271714 - LAMP BRACKET

31 7271713

  • 7271713 - LAMP BRACKET

32 7325017

  • 7325017 - BOOM FASTENER
