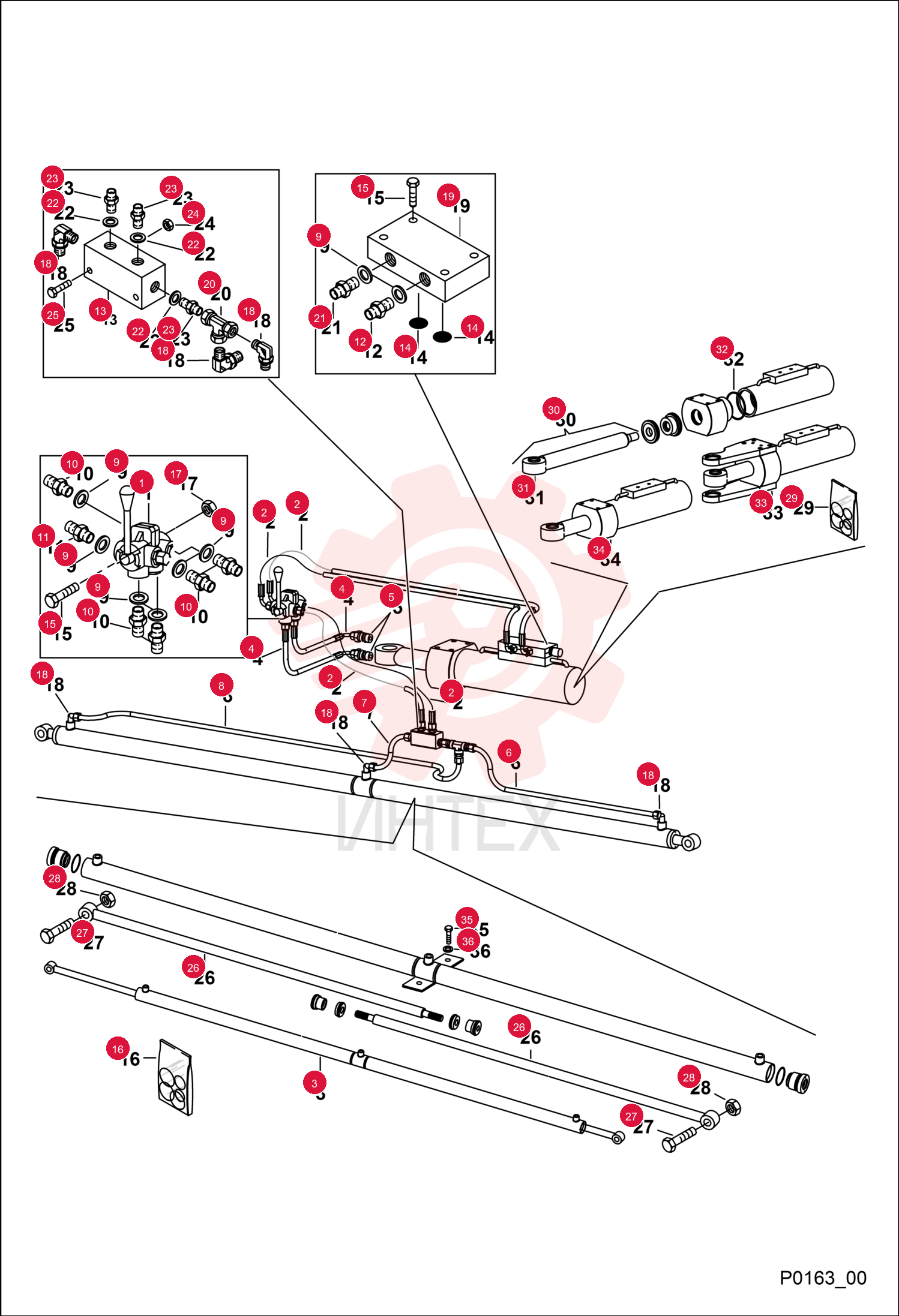

SWITCH 7275421 (4)

SWITCH 7275421 (4)

SWITCH 7275421 (4)

1 7275421

  • 7275421 - SWITCH

2 7018135

  • 7018135 - HOSE
  • HYD

3 7018071

  • 7018071 - CYLINDER ASSEMBLY

4 7018136

  • 7018136 - HOSE
  • HYD

5 7018137

  • 7018137 - COUPLER

6 7018150

  • 7018150 - TUBELINE

7 7018149

  • 7018149 - TUBELINE

8 7018148

  • 7018148 - TUBELINE

9 7018138

  • 7018138 - WASHER

10 7018139

  • 7018139 - FITTING

11 7018140

  • 7018140 - FITTING

12 7018141

  • 7018141 - FITTING

13 7028217

  • 7028217 - BLOCK HYDRAULIC

14 7018152

  • 7018152 - O-RING

15 7018142

  • 7018142 - BOLT

16 7018082

  • 7018082 - KIT
  • SEAL

17 7014561

  • 7014561 - NUT
  • SELF LOCKING

18 7018143

  • 7018143 - FITTING
  • ELBOW

19 7014703

  • 7014703 - VALVE
  • STABILIZER

20 7018146

  • 7018146 - FITTING
  • TEE

21 7018144

  • 7018144 - FITTING

22 7018145

  • 7018145 - WASHER
  • SEAL

23 7021488

  • 7021488 - FITTING
  • HYD

24 7018059

  • 7018059 - NUT

25 7018157

  • 7018157 - BOLT

26 7018075

  • 7018075 - ROD
  • CYLINDER

27 7018074

  • 7018074 - BOLT

28 7018078

  • 7018078 - NUT

29 7018106

  • 7018106 - KIT
  • SEAL

30 7018107

  • 7018107 - ROD

31 7018112

  • 7018112 - SEAL

32 7018116

  • 7018116 - CYLINDER
  • CPL

33 7018115

  • 7018115 - CYLINDER ASSEMBLY

34 7018129

  • 7018129 - SCREW

35 7018081

  • 7018081 - WASHER
