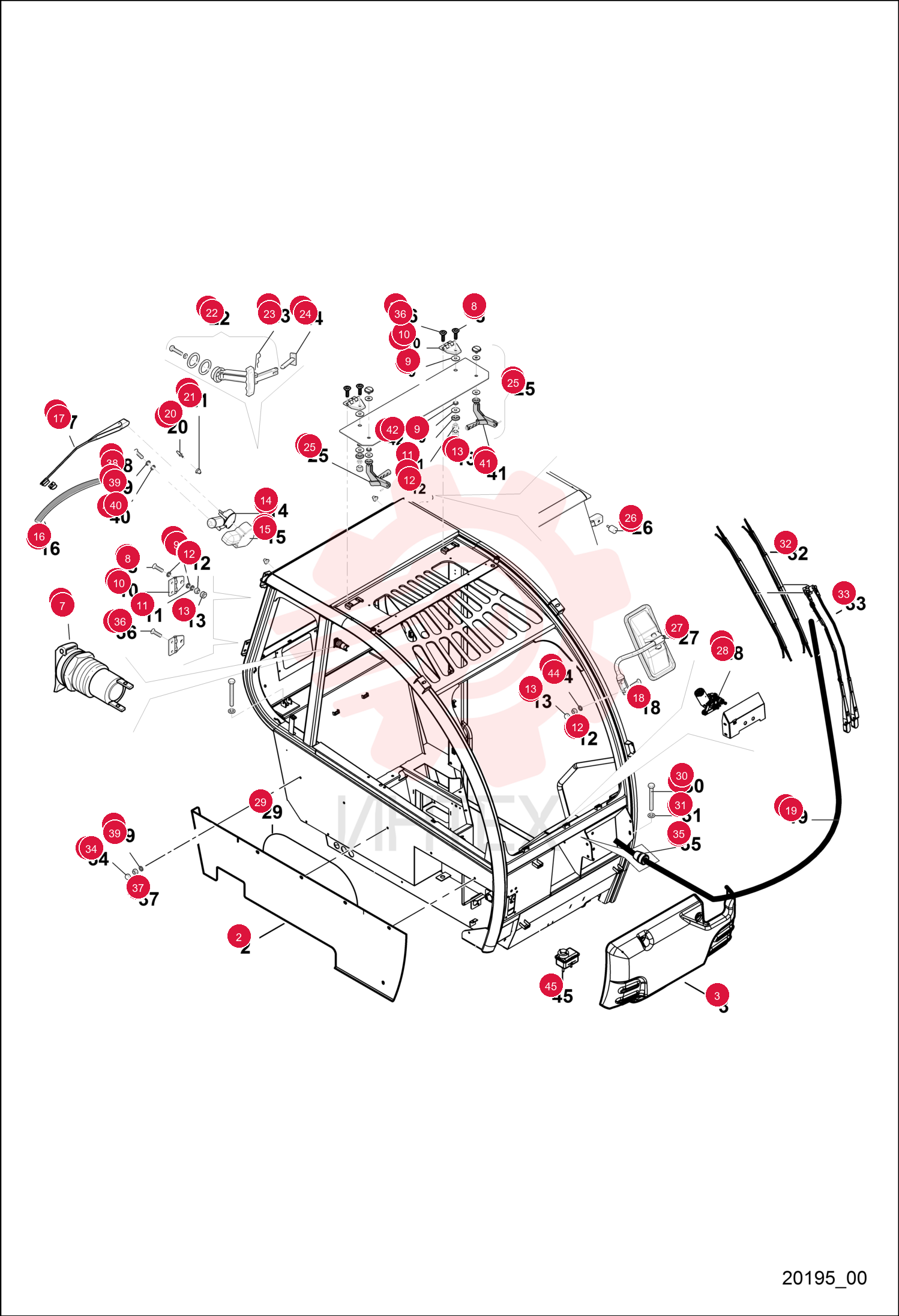

PLATE 7279253 (2)

PLATE 7279253 (2)

PLATE 7279253 (2)

1 7279253

  • 7279253 - PLATE

2 7272162

  • 7272162 - HOUSING

3 7014637

  • 7014637 - PLUG 12V

4 7018198

  • 7018198 - SCREW MACHINE

5 7020208

  • 7020208 - WASHER
  • RUBBER

6 7013751

  • 7013751 - HINGE WINDOW

7 7018162

  • 7018162 - WASHER FLAT

8 7014561

  • 7014561 - NUT
  • SELF LOCKING

9 7014909

  • 7014909 - CAP NUT

10 7013757

  • 7013757 - MOTOR
  • WINDSCREEN

11 7013787

  • 7013787 - HOUSING

12 7013761

  • 7013761 - BLADE WIPER

13 7013762

  • 7013762 - ARM WIPER

14 7019725

  • 7019725 - SCREW

15 7013969

  • 7013969 - TUBE

16 7013766

  • 7013766 - NOZZLE WIPER

17 7013799

  • 7013799 - CAP NUT

18 7013741

  • 7013741 - HANDLE

19 7014989

  • 7014989 - PIN
  • BLOCKING

20 7013968

  • 7013968 - BRACKET
  • BLOCKING

21 7013743

  • 7013743 - HANDLE

22 7013800

  • 7013800 - GUARD

23 7013756

  • 7013756 - MIRROR
  • REAR VIEW

24 7279255

  • 7279255 - WINDSCREEN MOTOR

25 7013858

  • 7013858 - FOAM

26 7014540

  • 7014540 - SCREW

27 7020206

  • 7020206 - WASHER

28 7272888

  • 7272888 - WIPER

29 7279257

  • 7279257 - WIPER ARM

30 7013803

  • 7013803 - NUT
  • COVER

31 7013765

  • 7013765 - GROMMET
  • RUBBER

32 7014556

  • 7014556 - SCREW MACHINE

33 7018059

  • 7018059 - NUT

34 7013886

  • 7013886 - SCREW MACHINE

35 7018133

  • 7018133 - WASHER FLAT

36 7013916

  • 7013916 - WASHER FLAT

37 7013742

  • 7013742 - HANDLE ASSEMBLY

38 7013798

  • 7013798 - SPACER

39 7018061

  • 7018061 - WASHER

40 7279258

  • 7279258 - BOWL
