Bobcat
/
Vibratory Plate Compactor
/

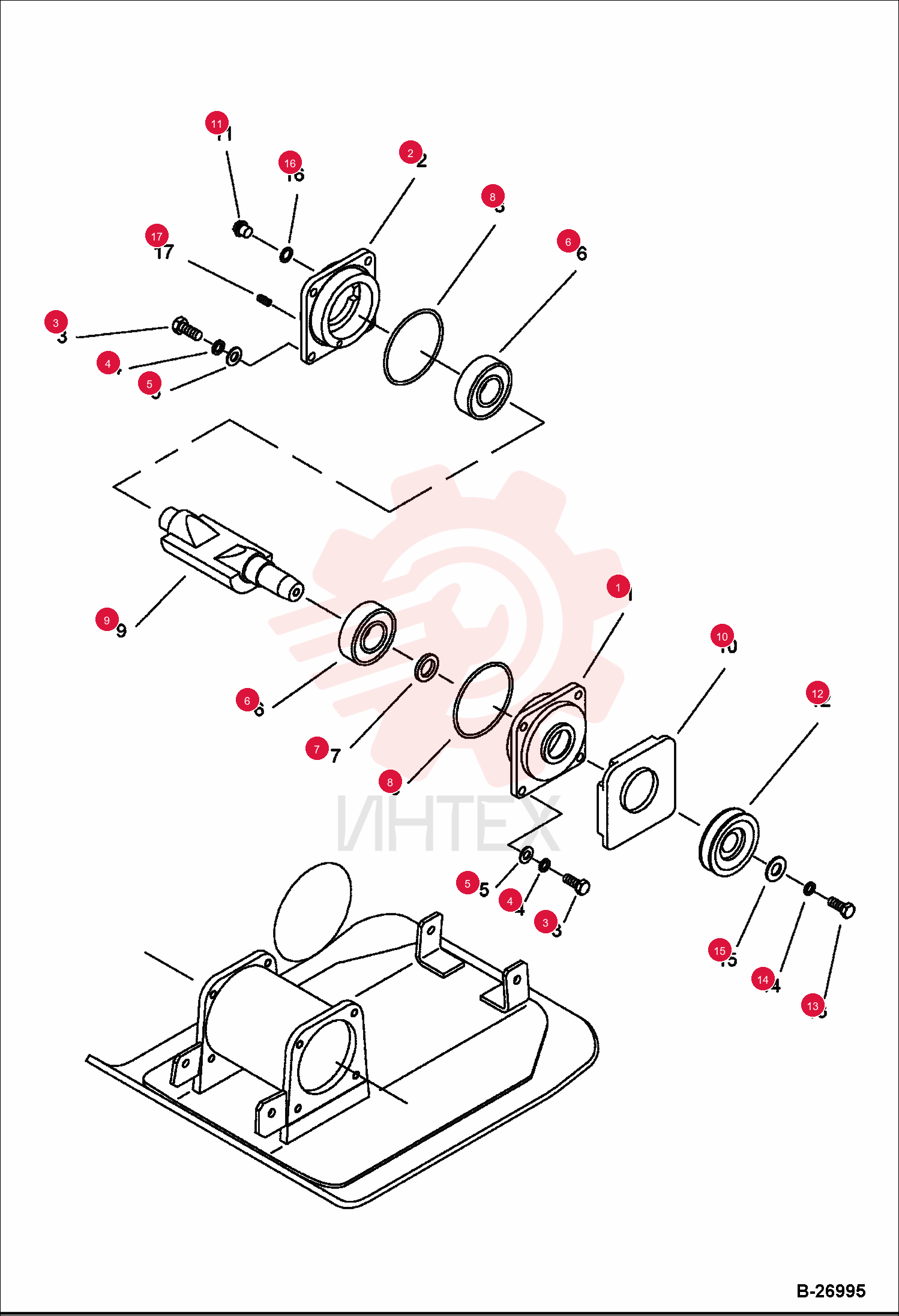

BEARING CASE IR22195051

BEARING CASE IR22195051

BEARING CASE IR22195051

1 IR22195051

  • IR22195051 - BEARING CASE

2 IR22195069

  • IR22195069 - BEARING CASE

3 IR59832287

  • IR59832287 - BOLT

4 IR59951632

  • IR59951632 - SPRING WASHE

5 IR59831842

  • IR59831842 - Washer

6 IR59831149

  • IR59831149 - BEARING
  • BALL

7 IR59831156

  • IR59831156 - SEAL
  • OIL

8 IR22195077

  • IR22195077 - O-RING

9 IR22195366

  • IR22195366 - Eccentric Shaft (BC22)

10 IR22195275

  • IR22195275 - Eccentric Shaft (BC19)

11 IR22195085

  • IR22195085 - ECCENTRIC SHAFT (BC15)

12 IR22195093

  • IR22195093 - Rubber Cover

13 IR59831123

  • IR59831123 - PLUG

14 IR58837709

  • IR58837709 - PULLEY

15 IR59952242

  • IR59952242 - BOLT

16 IR59951632

  • IR59951632 - SPRING WASHE

17 IR59236182

  • IR59236182 - WASHER

18 IR59831131

  • IR59831131 - PACKING

19 IR22195101

  • IR22195101 - Plug
