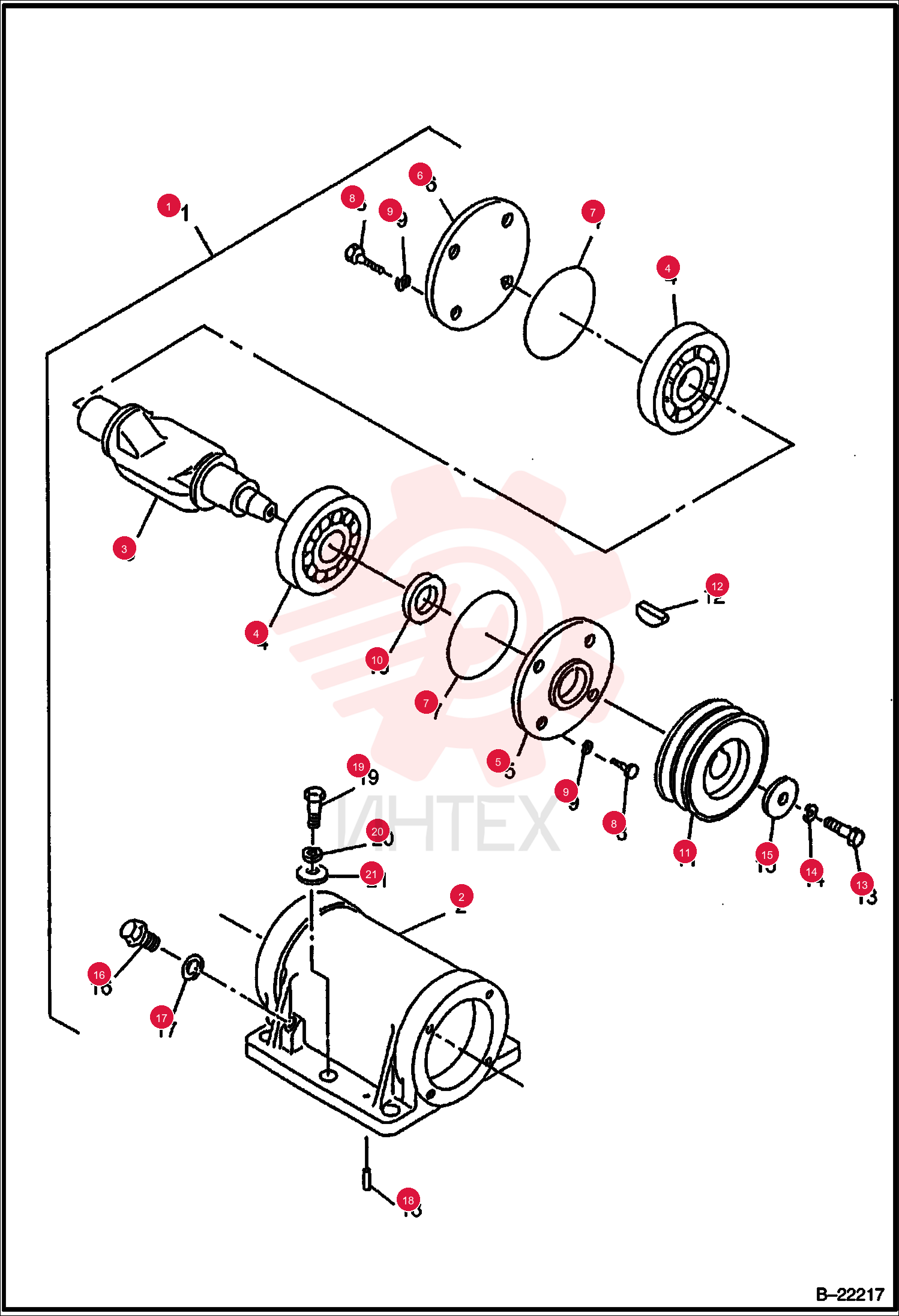

VIB UNIT ASY IR59831438

VIB UNIT ASY IR59831438

VIB UNIT ASY IR59831438

1 IR59831438

  • IR59831438 - VIB UNIT ASY
  • Ref. 2-21

2 IR59831420

  • IR59831420 - VIB SHAFT CS

3 IR59839118

  • IR59839118 - VIB SHAFT
  • eccentric

4 IR59839134

  • IR59839134 - BEARING
  • BALL

5 IR59831479

  • IR59831479 - O-RING

6 IR59952325

  • IR59952325 - BOLT

7 IR59831925

  • IR59831925 - SPR WASHER

8 IR59839142

  • IR59839142 - SEAL
  • OIL

9 IR59831461

  • IR59831461 - PULLEY

10 IR59843714

  • IR59843714 - WOODRUFF KEY

11 IR59832287

  • IR59832287 - BOLT

12 IR59951632

  • IR59951632 - SPRING WASHE
  • Was IR59510065

13 IR59843656

  • IR59843656 - WASHER

14 IR59831123

  • IR59831123 - PLUG

15 IR59831131

  • IR59831131 - PACKING

16 IR59831164

  • IR59831164 - SPRING PIN

17 IR96715768

  • IR96715768 - CAPSCREW
  • WAS IR59839019

18 IR59832618

  • IR59832618 - WASHER
  • SPRING

19 IR58837717

  • IR58837717 - WASHER
