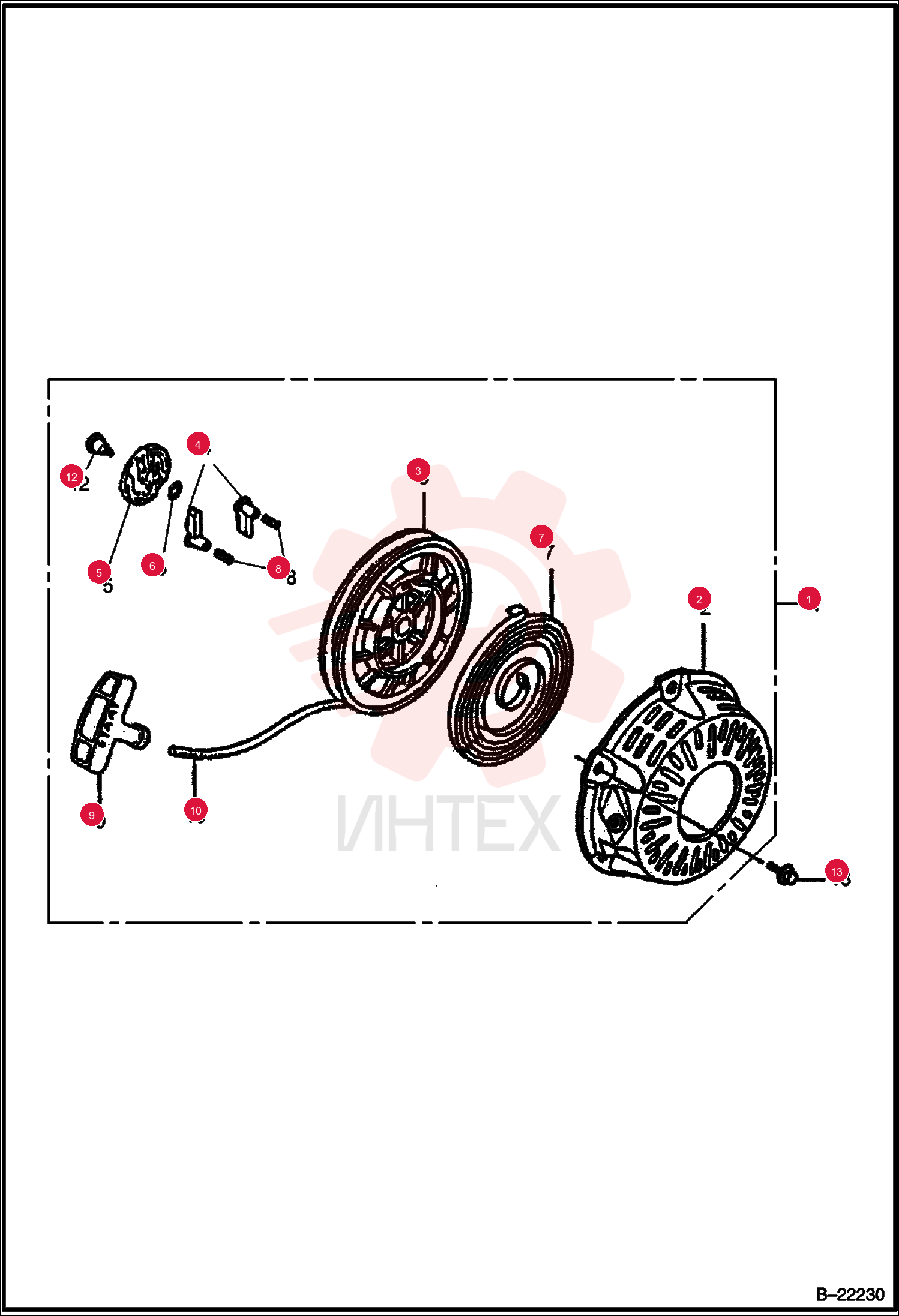

STARTER,RECOIL IR59243998 (2)

STARTER,RECOIL IR59243998 (2)

STARTER,RECOIL IR59243998 (2)

1 IR59243998

  • IR59243998 - STARTER
  • RECOIL
  • assy - Ref. 2-12

2 IR59244004

  • IR59244004 - CASE
  • STARTER

3 IR59244012

  • IR59244012 - REEL
  • STARTER

4 IR59244020

  • IR59244020 - RATCHET
  • STARTER
  • starter

5 IR59244038

  • IR59244038 - GUIDE
  • ratchet

6 IR59244046

  • IR59244046 - SPRING
  • FRICTION

7 IR59244053

  • IR59244053 - SPRING
  • STARTER

8 IR59244061

  • IR59244061 - SPRING
  • RETURN

9 IR59244079

  • IR59244079 - KNOB
  • STARTER SUPERSEDED

10 IR59244087

  • IR59244087 - ROPE
  • STARTER SUPERSEDED

11 IR59244095

  • IR59244095 - SCREW
  • SETTING

12 IR59244103

  • IR59244103 - BOLT
  • FLANGE
