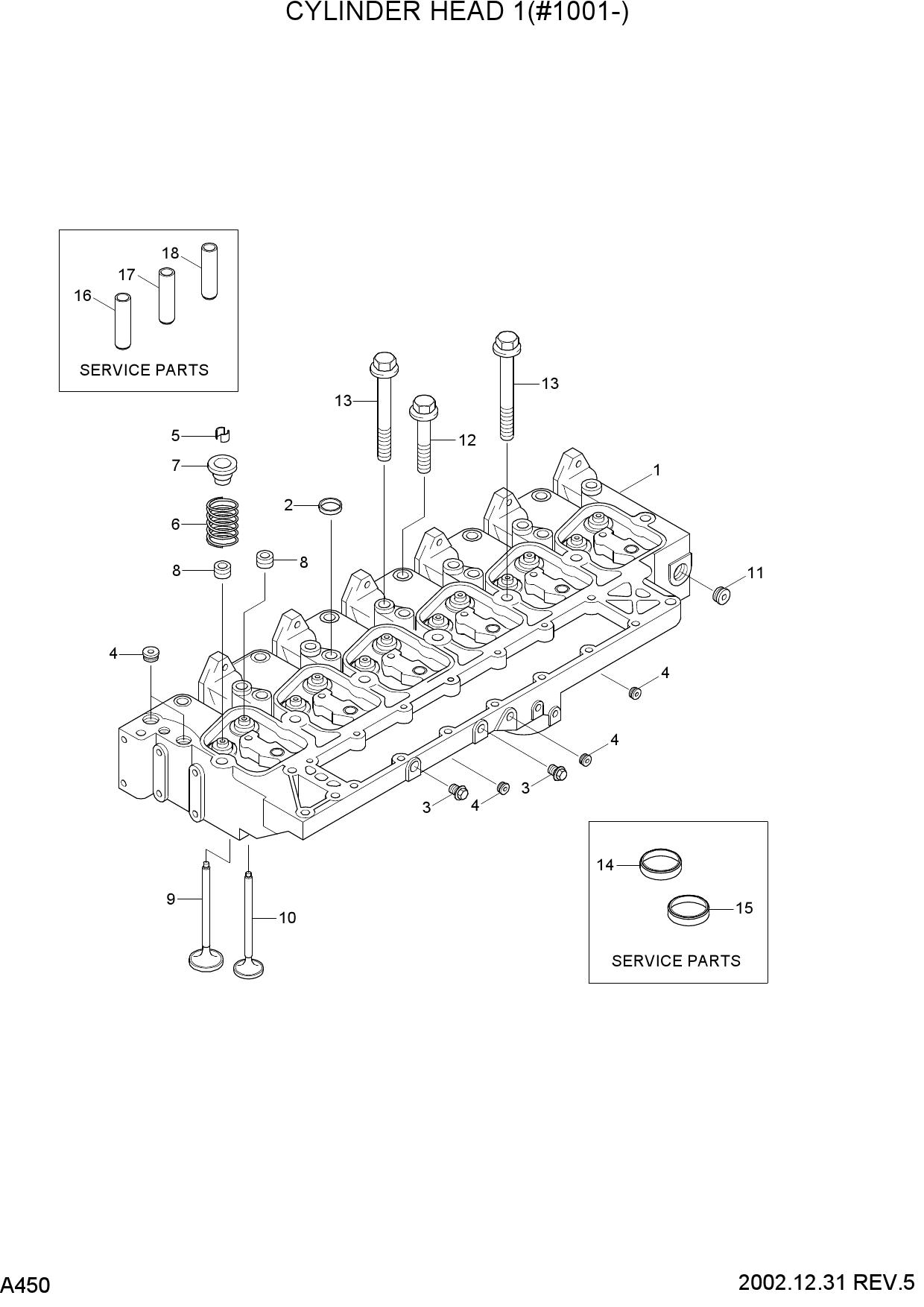

CYLINDER HEAD 1(#1001-)

CYLINDER HEAD 1(#1001-)

CYLINDER HEAD 1(#1001-)

1 3812092

  • 3812092 - PLUG-EXPANSION
  • Поз.: 2

2 3008468

  • 3008468 - PLUG-PIPE
  • Поз.: 4

3 3900250

  • 3900250 - COLLET-VALVE
  • Поз.: 5

4 3920867

  • 3920867 - VALVE-INTAKE
  • Поз.: 9

5 3900250

  • 3900250 - COLLET-VALVE
  • Поз.: 5

6 3920868

  • 3920868 - VALVE-EXHAUST
  • Поз.: 10

7 3932453

  • 3932453 - SPRING-VALVE
  • Поз.: 6

8 3935038

  • 3935038 - RETAINER
  • Поз.: 7

9 3921640

  • 3921640 - SEAL-VALVE STEM
  • Поз.: 8

10 3008469

  • 3008469 - PLUG-PIPE
  • Поз.: 11

11 3920779

  • 3920779 - SCREW
  • Поз.: 12

12 3920780

  • 3920780 - SCREW
  • Поз.: 13

13 3925176

  • 3925176 - INSERT-VALVE
  • EXHAUST
  • Поз.: 14

14 3925177

  • 3925177 - INSERT-VALVE
  • INTAKE
  • Поз.: 15

15 3904408

  • 3904408 - GUIDE-V/STEM
  • 60.5
  • Поз.: 16

16 3904409

  • 3904409 - GUIDE-V/STEM
  • 51.75
  • Поз.: 17

17 3906206

  • 3906206 - GUIDE-V/STEM
  • THIN WALL
  • Поз.: 18
