(140SR-3) - ACERA CRAWLER EXCAVATOR - ASN YH07-09001 (6/12-12/13)
/

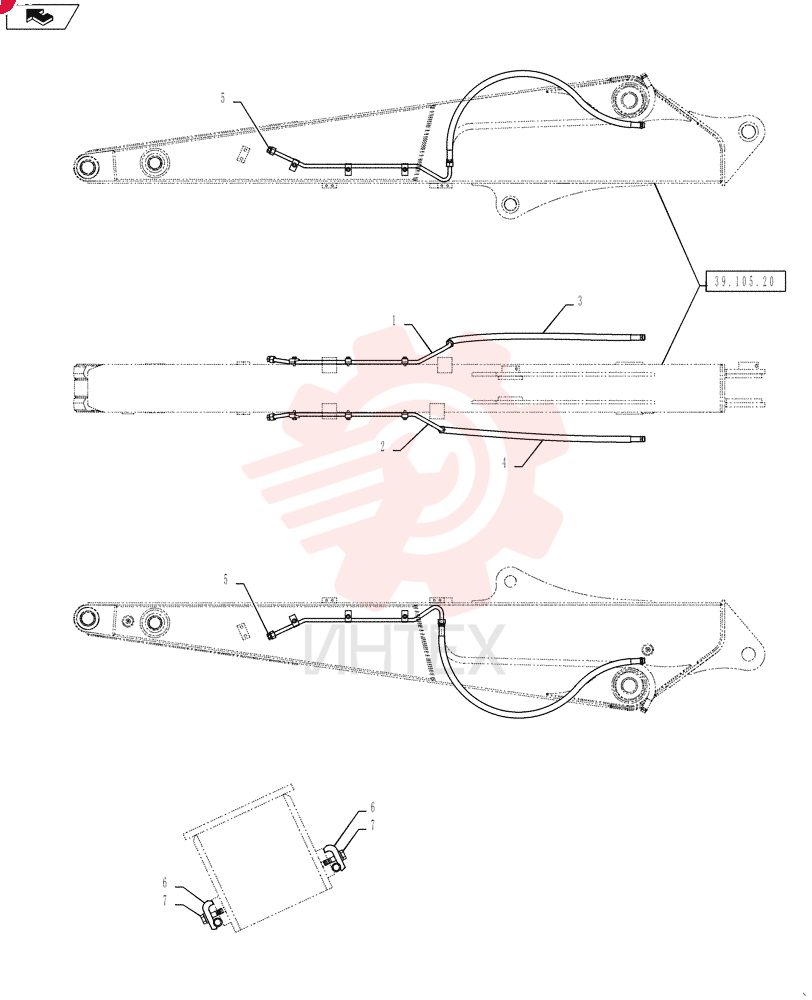

TUBE YY43H01327P1 (2)

TUBE YY43H01327P1 (2)

TUBE YY43H01327P1 (2)

1 YY43H01327P1

  • YY43H01327P1 - TUBE

2 YY43H01328P1

  • YY43H01328P1 - TUBE

3 2444R950D20

  • 2444R950D20 - HOSE
  • Tightening Torque 147 N.m (108.4 lbf.ft)
  • Right turn

4 2444R950D48

  • 2444R950D48 - FLEXIBLE HOSE
  • Tightening Torque 147 N.m (108.4 lbf.ft)
  • Left turn

5 ZA82P18000

  • ZA82P18000 - PLUG

6 ZC26M18011

  • ZC26M18011 - CLAMP

7 ZM73C10040

  • ZM73C10040 - BOLT
  • M10x40mm - Course Thread
  • Sems
