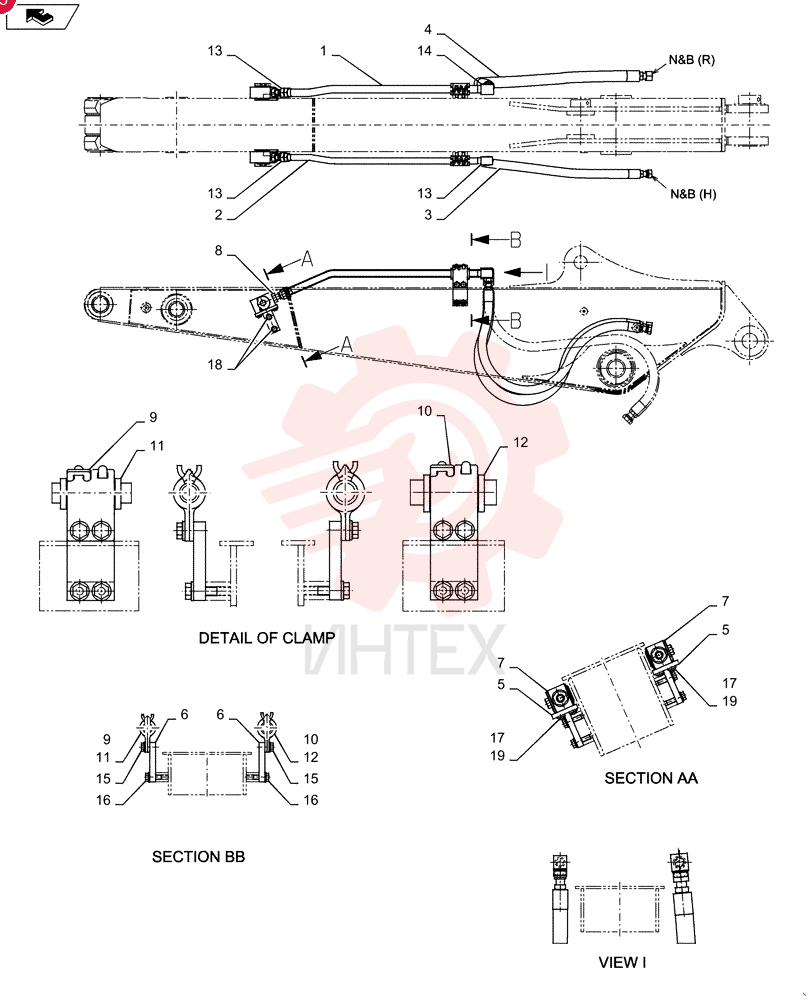

TUBE YY43H01329P1 (1)
1 YY43H01329P1
- YY43H01329P1 - TUBE
2 YY43H01330P1
- YY43H01330P1 - TUBE
3 ZX50H12130
- ZX50H12130 - HOSE
- N&B (R)
4 ZX50H16140
- ZX50H16140 - HOSE
- 25.4mm ID x 1400mm L
- N&B (H)
5 YW43H01044P1
- YW43H01044P1 - BRACKET
6 YY43H01444P1
- YY43H01444P1 - PLATE
7 24100P1006F2
- 24100P1006F2 - HYDRAULIC VALVE
- Stop
8 HG23H12012G1
- HG23H12012G1 - HYD CONNECTOR
9 YN42H02357P1
- YN42H02357P1 - CLAMP
- 37mm ID
- J Type
10 YN42H02363P1
- YN42H02363P1 - CLAMP
- 46mm ID
- J Type
11 YN42H02319P1
- YN42H02319P1 - BUSHING
- 27.2mm ID x 34mm OD x 83mm L
12 YN43H01524P1
- YN43H01524P1 - BUSHING
- 34mm ID x 53mm OD x 83mm L
13 ZD12A01800
- ZD12A01800 - O-RING
- 1.78mm Thk x 18.77mm ID
- Cl 6
14 ZD12A02100
- ZD12A02100 - O-RING
15 ZM73C12030
- ZM73C12030 - BOLT
- M12x30mm - Course Thread
- Sems
- Apply Loctite #242
16 ZM73C12035
- ZM73C12035 - BOLT
- M12x35mm - Course Thread
- Sems
- Apply Loctite #242
17 ZS18C08025
- ZS18C08025 - SCREW
- Hex
- M8 x 25mm
- Cap
- Apply Loctite #242
18 ZM73C12045
- ZM73C12045 - BOLT
- M12x45mm - Course Thread
- Sems
- Apply Loctite #242
19 YN43H01151P1
- YN43H01151P1 - WASHER
