(140SR-3) - ACERA CRAWLER EXCAVATOR - ASN YH07-09001 (6/12-12/13)
/

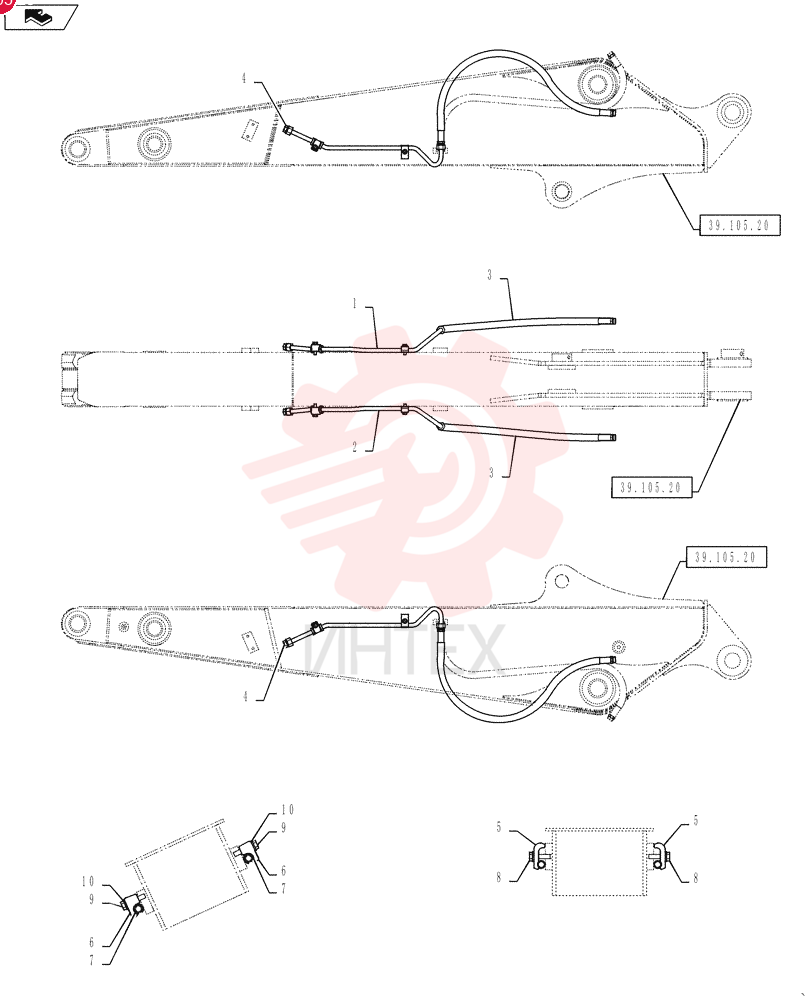

TUBE YY43H01500P1 (3)

TUBE YY43H01500P1 (3)

TUBE YY43H01500P1 (3)

1 YY43H01500P1

  • YY43H01500P1 - TUBE

2 YY43H01501P1

  • YY43H01501P1 - TUBE

3 2444R950D14

  • 2444R950D14 - HOSE
  • Tightening Torque 147 N.m (108.4 lbf.ft)

4 ZA82P18000

  • ZA82P18000 - PLUG

5 ZC26M18011

  • ZC26M18011 - CLAMP

6 YW43H01049P1

  • YW43H01049P1 - CLAMP

7 YY43H01502P1

  • YY43H01502P1 - BUSHING

8 ZM73C10040

  • ZM73C10040 - BOLT
  • M10x40mm - Course Thread
  • Sems
  • Apply Loctite #242

9 ZS18C10050

  • ZS18C10050 - SCREW
  • Hex
  • M10 x 50mm
  • Cap
  • Apply Loctite #242

10 ZW16H10000

  • ZW16H10000 - WASHER
