(140SR-3) - ACERA CRAWLER EXCAVATOR - ASN YH07-09001 (6/12-12/13)
/

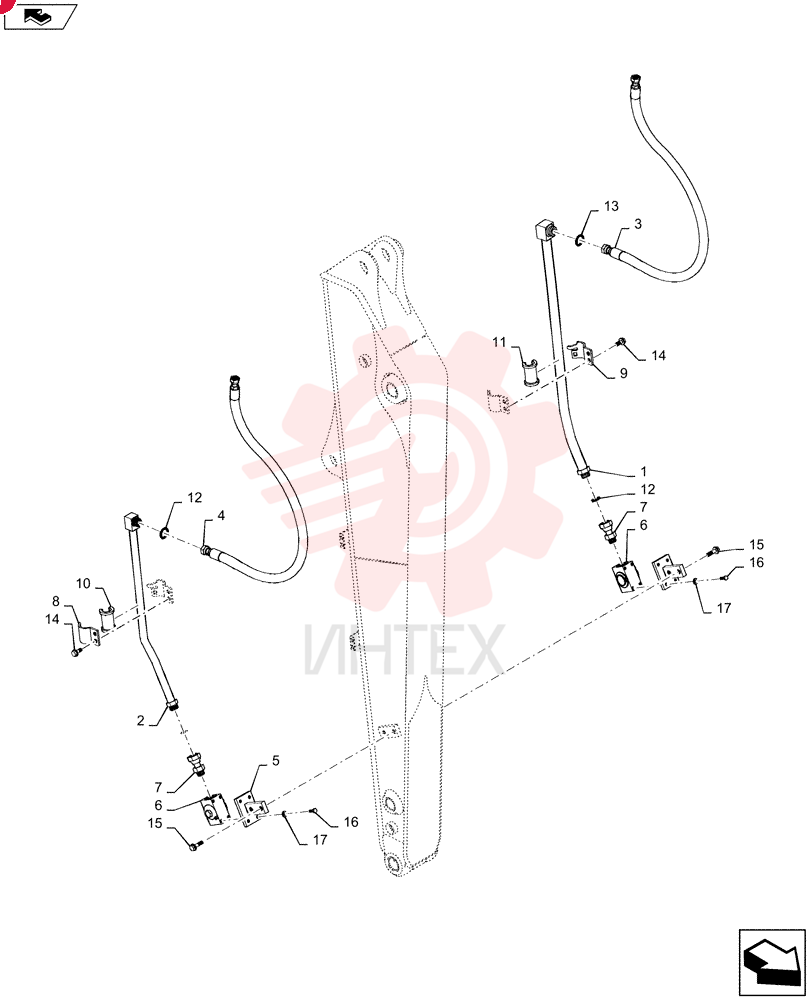

TUBE YY43H01342P1 (2)

TUBE YY43H01342P1 (2)

TUBE YY43H01342P1 (2)

1 YY43H01342P1

  • YY43H01342P1 - TUBE

2 YY43H01343P1

  • YY43H01343P1 - TUBE

3 ZX50H16165

  • ZX50H16165 - FLEXIBLE HOSE
  • L=1650mm

4 ZX50H12160

  • ZX50H12160 - HYDRAULIC HOSE
  • L=1600mm

5 YW43H01044P1

  • YW43H01044P1 - BRACKET

6 24100P1006F2

  • 24100P1006F2 - HYDRAULIC VALVE
  • Stop

7 HG23H12012G1

  • HG23H12012G1 - HYD CONNECTOR

8 YN42H02357P1

  • YN42H02357P1 - CLAMP
  • 37mm ID
  • J Type

9 YN42H02363P1

  • YN42H02363P1 - CLAMP
  • 46mm ID
  • J Type

10 YN42H02319P1

  • YN42H02319P1 - BUSHING
  • 27.2mm ID x 34mm OD x 83mm L

11 YN43H01524P1

  • YN43H01524P1 - BUSHING
  • 34mm ID x 53mm OD x 83mm L

12 ZD12A01800

  • ZD12A01800 - O-RING
  • 1.78mm Thk x 18.77mm ID
  • Cl 6

13 ZD12A02100

  • ZD12A02100 - O-RING

14 ZM73C12030

  • ZM73C12030 - BOLT
  • M12x30mm - Course Thread
  • Sems

15 ZM73C12045

  • ZM73C12045 - BOLT
  • M12x45mm - Course Thread
  • Sems

16 ZS18C08025

  • ZS18C08025 - SCREW
  • Hex
  • M8 x 25mm
  • Cap

17 YN43H01151P1

  • YN43H01151P1 - WASHER
