(140SR-3) - ACERA CRAWLER EXCAVATOR - ASN YH07-09001 (6/12-12/13)
/

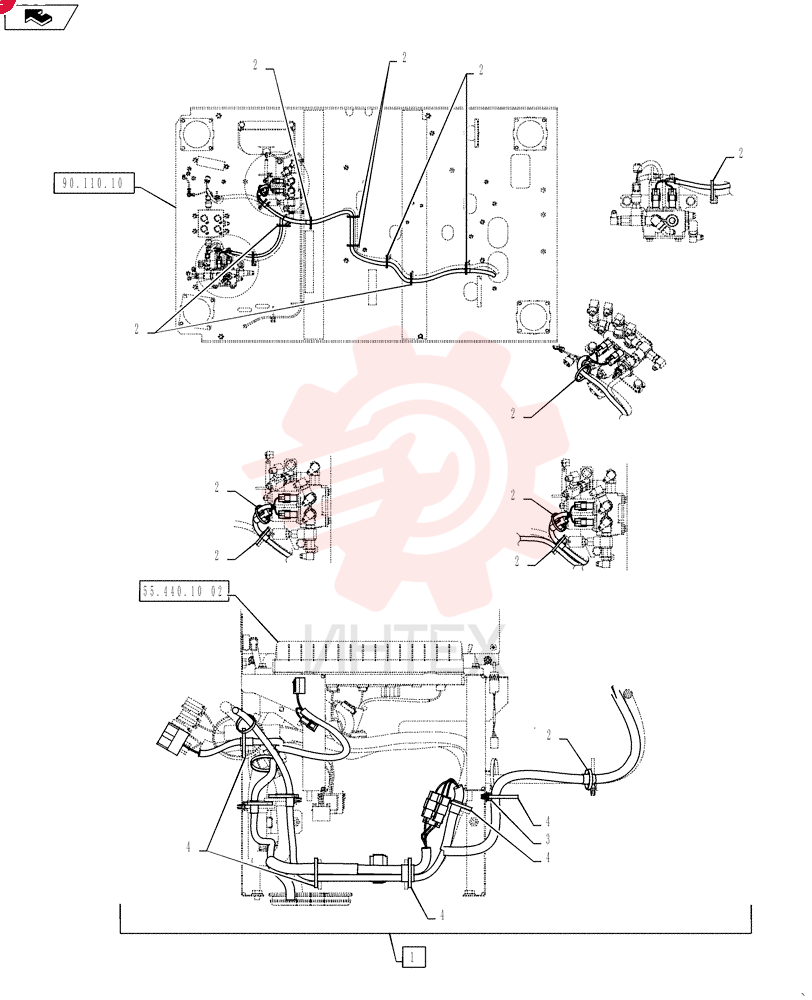

Upper, Incl 2 - 4 YY13E00138F1 (1)

Upper, Incl 2 - 4 YY13E00138F1 (1)

Upper, Incl 2 - 4 YY13E00138F1 (1)

1 YY13E00138F1

  • YY13E00138F1 - Upper
  • Incl 2 - 4

2 PY01P01043D3

  • PY01P01043D3 - CABLE TIE
  • 188mm L

3 YN13E01375P1

  • YN13E01375P1 - CLIP
  • M8 x 8.20mm Shank

4 PY01P01043D5

  • PY01P01043D5 - CABLE TIE
  • 301mm L
