(140SR-3) - ACERA CRAWLER EXCAVATOR - ASN YH07-09001 (6/12-12/13)
/

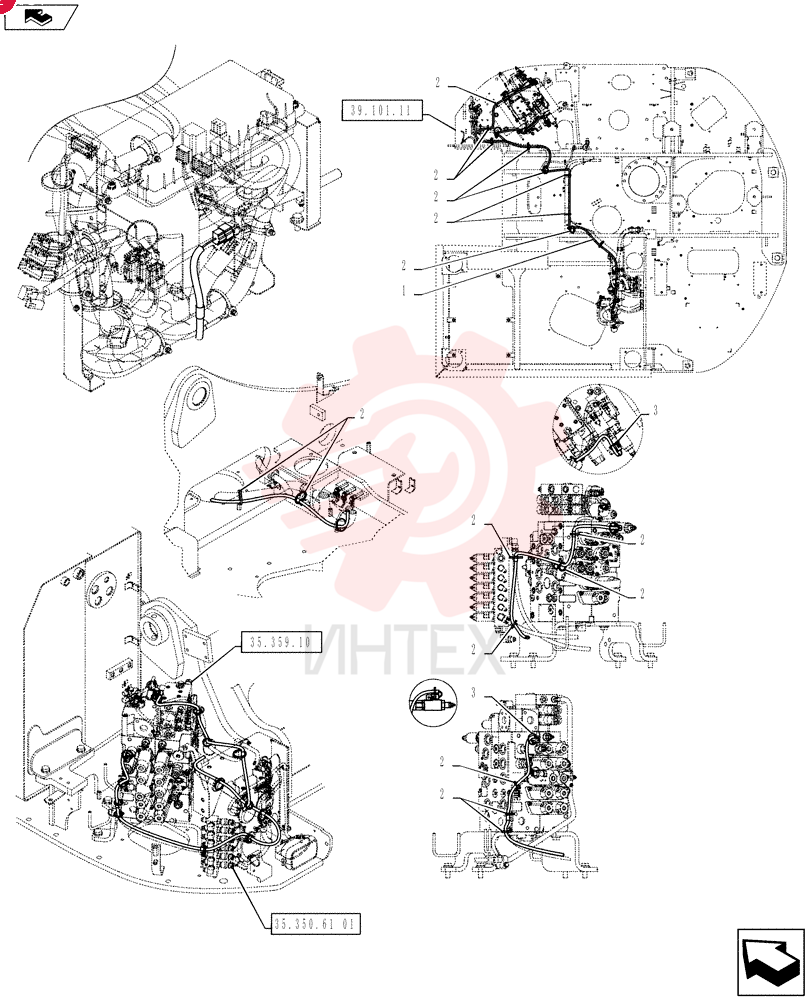

WIRE HARNESS YY13E01358P1 (2)

WIRE HARNESS YY13E01358P1 (2)

WIRE HARNESS YY13E01358P1 (2)

1 YY13E01358P1

  • YY13E01358P1 - WIRE HARNESS

2 PY01P01043D3

  • PY01P01043D3 - CABLE TIE
  • 188mm L

3 PY01P01043D4

  • PY01P01043D4 - CABLE TIE
  • 4.80mm W x 251mm L
