(140SR-3) - ACERA CRAWLER EXCAVATOR - ASN YH07-09001 (6/12-12/13)
/

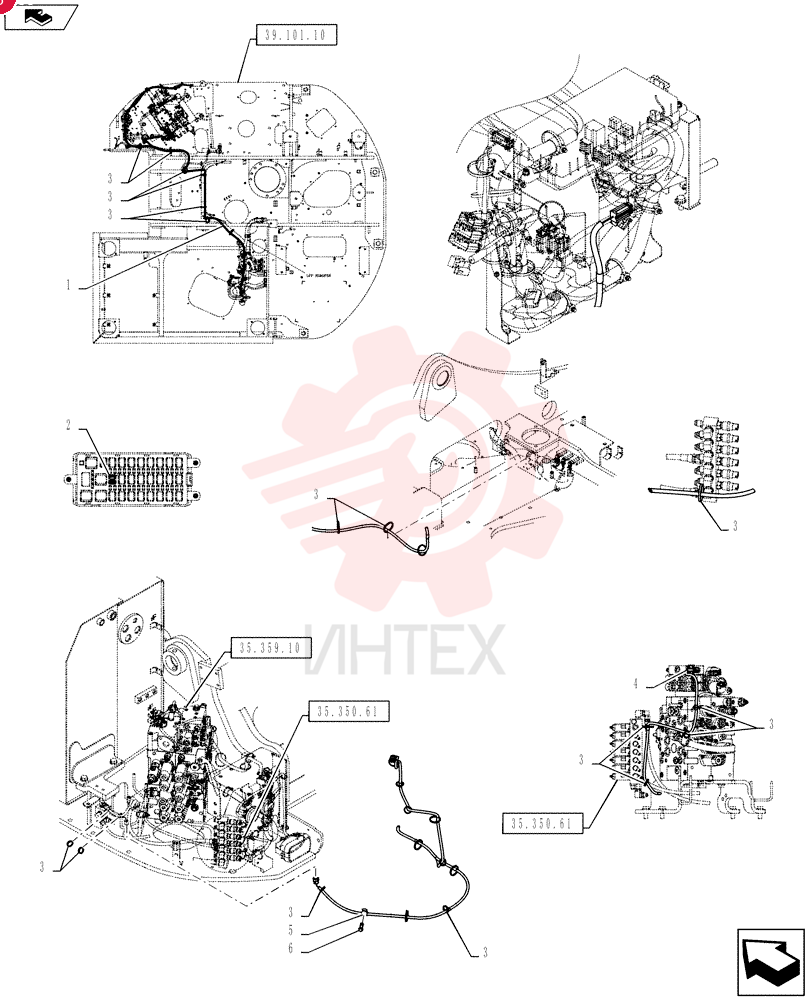

WIRE HARNESS YY13E01357P1 (3)

WIRE HARNESS YY13E01357P1 (3)

WIRE HARNESS YY13E01357P1 (3)

1 YY13E01357P1

  • YY13E01357P1 - WIRE HARNESS

2 YN24S00010P1

  • YN24S00010P1 - RELAY
  • (Used for Safety
  • Horn
  • Working Light
  • Travel Alarm
  • Cab Working Light
  • Auto Idle Stop
  • Eng Emerg Stop
  • Lever Lock
  • Alternator
  • Boom Light
  • Washer Motor
  • Wiper Motor)

3 PY01P01043D3

  • PY01P01043D3 - CABLE TIE
  • 188mm L

4 PY01P01043DA

  • PY01P01043DA - CABLE TIE
  • 2.50mm W x 205mm L

5 EW02E01015D4

  • EW02E01015D4 - CLIP

6 ZM73C08016

  • ZM73C08016 - BOLT
  • M8x16mm - Course Thread
  • Sems
