(140SR-3) - ACERA CRAWLER EXCAVATOR - ASN YH07-09001 (6/12-12/13)
/

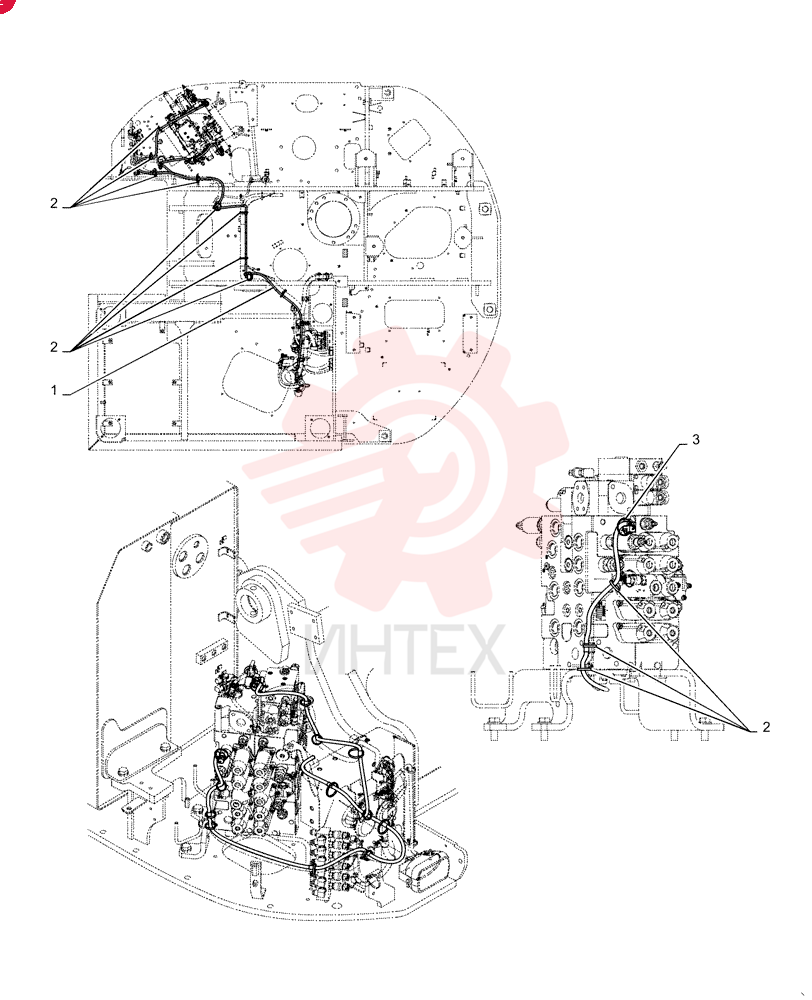

WIRE HARNESS YY13E01358P1 (1)

WIRE HARNESS YY13E01358P1 (1)

WIRE HARNESS YY13E01358P1 (1)

1 YY13E01358P1

  • YY13E01358P1 - WIRE HARNESS

2 PY01P01043D3

  • PY01P01043D3 - CABLE TIE
  • 188mm L

3 PY01P01043DA

  • PY01P01043DA - CABLE TIE
  • 2.50mm W x 205mm L
