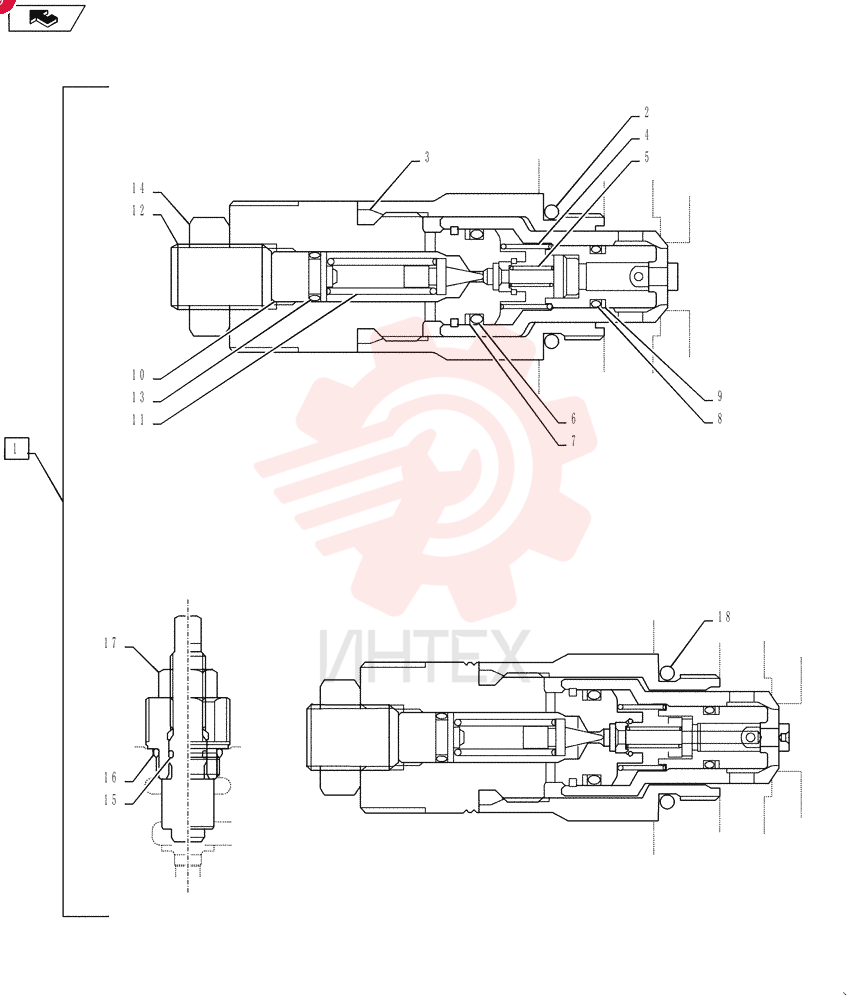

VALVE YN22V00002F1
1 YN22V00002F1
- YN22V00002F1 - VALVE
- Assembly
- Overload
- Incl 2 - 18
2 ZD12P02400
- ZD12P02400 - O-RING
3 ZD12P02240
- ZD12P02240 - O-RING
4 YN22V00001S521
- YN22V00001S521 - SPRING
5 YN22V00002S522
- YN22V00002S522 - SPRING
6 YN22V00001S561
- YN22V00001S561 - O-RING
7 YN22V00001S562
- YN22V00001S562 - BACK-UP RING
8 YN22V00002S563
- YN22V00002S563 - O-RING
9 YN22V00002S564
- YN22V00002S564 - RING
- Back Up
10 YN22V00002S612
- YN22V00002S612 - SPRING SEAT
11 2436R750S512
- 2436R750S512 - SPRING
12 YN22V00002S651
- YN22V00002S651 - ADJUSTMENT SCREW
13 ZD12P00800
- ZD12P00800 - O-RING
- 1.9mm Thk x 7.8mm ID
- 90 Duro
- ID 7.8MM x OD 9.7MM
14 YN22V00001S671
- YN22V00001S671 - LOCK NUT
15 ZD12P01000
- ZD12P01000 - O-RING
16 ZD12P02000
- ZD12P02000 - O-RING
- 2.4mm Thk x 19.8mm ID
- 90 Duro
17 ZN11C12010
- ZN11C12010 - NUT
18 ZD12P02400
- ZD12P02400 - O-RING
