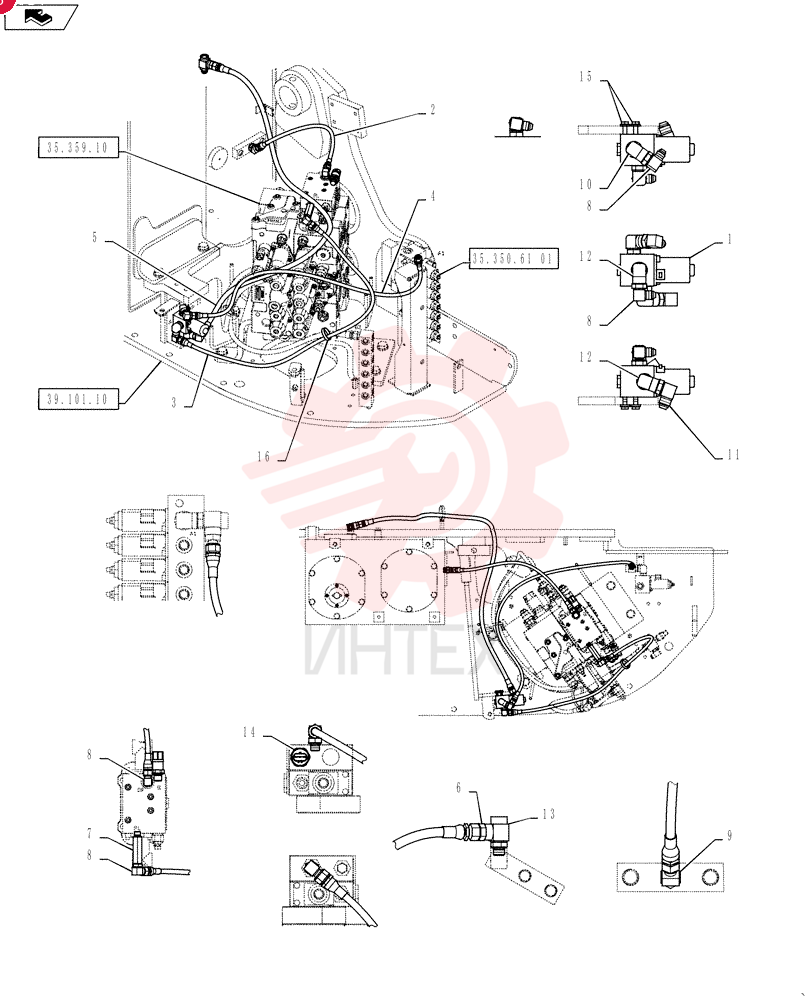

VALVE YN35V00010F2 (1)
1 YN35V00010F2
- YN35V00010F2 - VALVE
- Solenoid
2 2420R349D060
- 2420R349D060 - HOSE
- 6.35mm ID x 700mm L
- OP/V DR-TANK
3 2420R349D105
- 2420R349D105 - HOSE
- 1050.00 mm
- OP/ V PL-S/V A
4 2420R349D110
- 2420R349D110 - HOSE
- 1100.00 mm
- S/V A1-S/V P
5 2420R537D140
- 2420R537D140 - HOSE ASSY.
- 9.60mm ID x 1400mm L
- S/V T-Tank
6 ZH22X06000
- ZH22X06000 - HYD CONNECTOR
7 HH25R04004G3
- HH25R04004G3 - CONNECTION
8 ZH32X04000
- ZH32X04000 - 90 ELBOW
- Male
- 30 Degree Fl
- PF 1/4" x PF 1/4"
- O-Ring
- 90
9 ZH42X04006
- ZH42X04006 - 45 ELBOW
- Male
- 30 Degree Fl
- PF 1/4" x PF 3/8"
- O-Ring
10 PH62H01003P1
- PH62H01003P1 - ELBOW
11 2444Z2338
- 2444Z2338 - 90 ELBOW
- 90? -- (1/4" PFx3/8" PF)
- (Incls. O-Ring ZD12P01100)
12 2444Z2894
- 2444Z2894 - 90 ELBOW
13 HH55Q06006G1
- HH55Q06006G1 - TEE
14 YN52S00048P1
- YN52S00048P1 - SENSOR
- Over Load Alarm
- Pump P1 & P2
- Pressure (High Pressure) (Incls. O-Ring ZD12P01400)
15 ZM73C06020
- ZM73C06020 - BOLT
- M6x20mm - Course Thread
- Sems
16 PY01P01043D8
- PY01P01043D8 - CABLE TIE
- 102mm L
- Fastnens together with Block B3-C/V PAb
