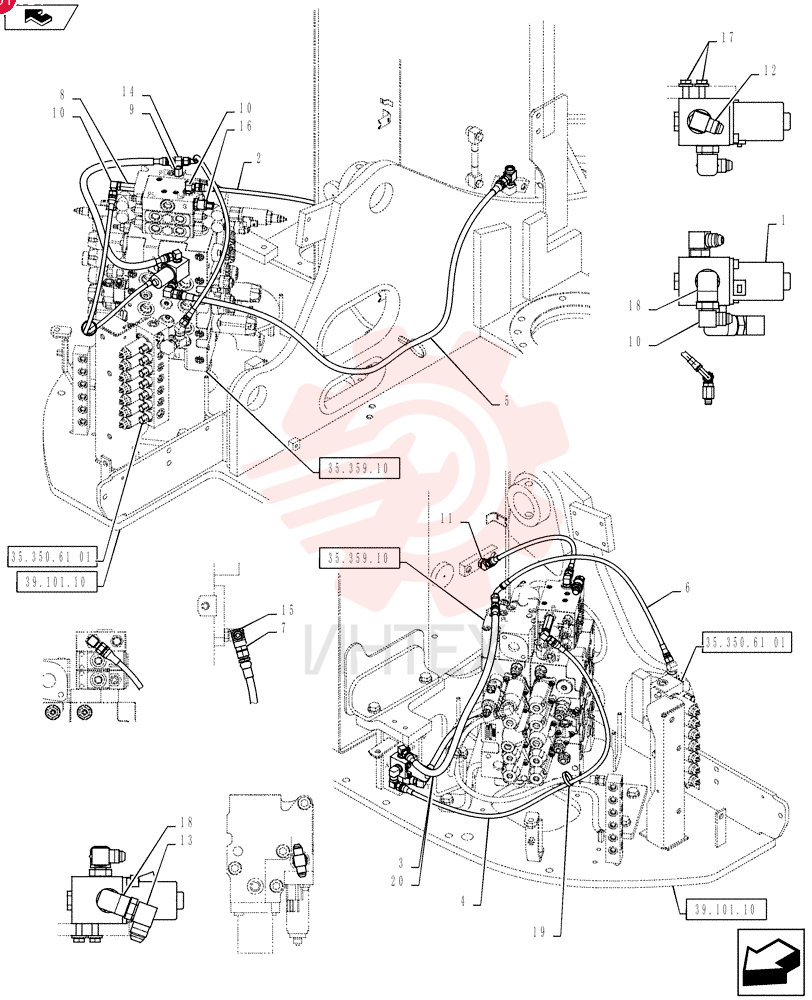

VALVE YN35V00010F2 (2)
1 YN35V00010F2
- YN35V00010F2 - VALVE
- Solenoid
2 2420R349D060
- 2420R349D060 - HOSE
- 6.35mm ID x 700mm L
- OP/V DR - TANK
3 2420R349D084
- 2420R349D084 - HYDRAULIC HOSE
- 6.35 mm ID x 840.00 mm
- SAE 100R7
- SEL/V PL - S/V P
4 2420R349D105
- 2420R349D105 - HOSE
- 1050.00 mm
- OP/V PL - S/V A
5 2420R537D140
- 2420R537D140 - HOSE ASSY.
- 9.60mm ID x 1400mm L
- S/V T - TANK
6 HX33L04066DY
- HX33L04066DY - HOSE ASSY.
- S/V A1 - SEL/V PL
7 ZH22X06000
- ZH22X06000 - HYD CONNECTOR
8 HH25R04004G3
- HH25R04004G3 - CONNECTION
9 HH25R04004G5
- HH25R04004G5 - HYD CONNECTOR
- w/filter (PF 1/4)(Incl O-Ring ZD12P01100)
10 ZH32X04000
- ZH32X04000 - 90 ELBOW
- Male
- 30 Degree Fl
- PF 1/4" x PF 1/4"
- O-Ring
11 ZH42X04006
- ZH42X04006 - 45 ELBOW
- Male
- 30 Degree Fl
- PF 1/4" x PF 3/8"
- O-Ring
12 HH35X04004G3
- HH35X04004G3 - 90 ELBOW
13 2444Z2338
- 2444Z2338 - 90 ELBOW
- 90? -- (1/4" PFx3/8" PF)
- (Incls. O-Ring ZD12P01100)
14 ZH52X04000
- ZH52X04000 - TEE
- 30 Degree Fl
- Male
- PF 1/4" x 1/4" x 1/4"
- O-Ring
15 HH55Q06006G1
- HH55Q06006G1 - TEE
16 YN52S00048P1
- YN52S00048P1 - SENSOR
- Over Load Alarm
- Pump P1 & P2
- Pressure (High Pressure) (Incls. O-Ring ZD12P01400)
17 ZM73C06020
- ZM73C06020 - BOLT
- M6x20mm - Course Thread
- Sems
18 2444Z2894
- 2444Z2894 - 90 ELBOW
19 PY01P01043D8
- PY01P01043D8 - CABLE TIE
- 102mm L
- Fastens Together With Block B3 - C/V PAb
20 PU13E01002DB
- PU13E01002DB - TUBE
