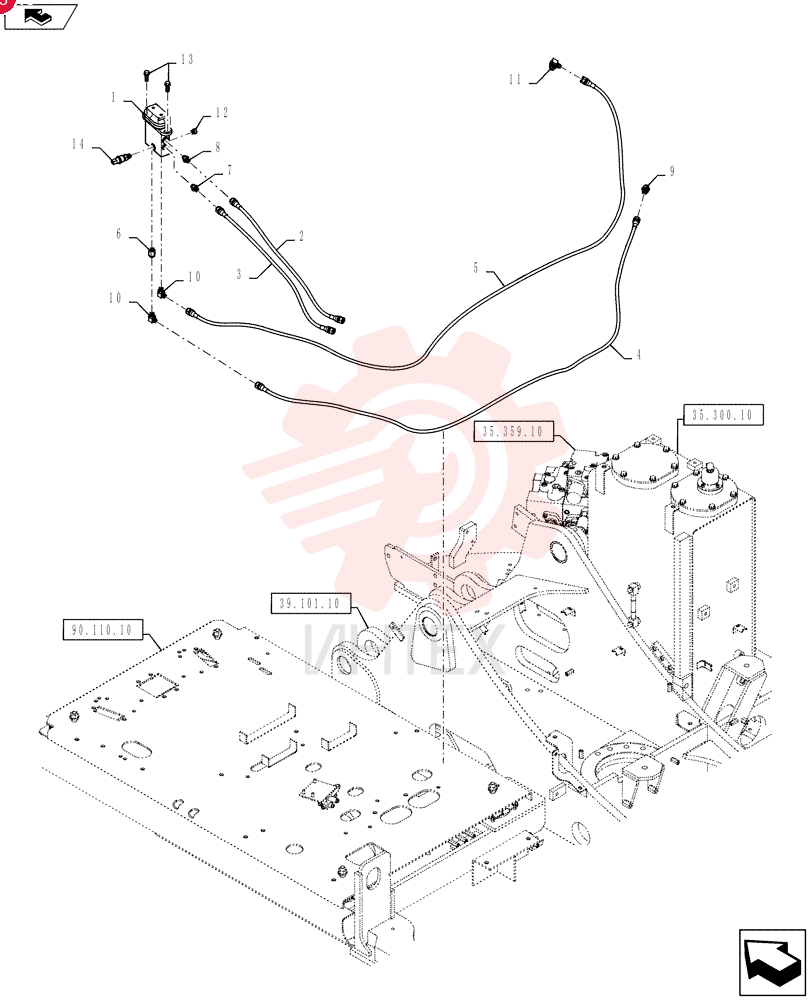

VALVE YN30V00080F1 (2)
1 YN30V00080F1
- YN30V00080F1 - VALVE
- Pilot
2 2420R349D080
- 2420R349D080 - HOSE
- 6.35mm ID x 800mm L
- P/V T-PT T
3 2420R349D084
- 2420R349D084 - HYDRAULIC HOSE
- 6.35 mm ID x 840.00 mm
- SAE 100R7
- P/V P-PT P
4 2420R349D230
- 2420R349D230 - HOSE ASSY.
- N&B P/V B-C/V PB0
5 2420R349D270
- 2420R349D270 - HOSE
- N&B P/V A- C/V PA0
6 2444Z2525
- 2444Z2525 - HYD CONNECTOR
7 HH25X04004G2
- HH25X04004G2 - HYD CONNECTOR
8 ZH22X04000
- ZH22X04000 - HYD CONNECTOR
- 1/4" NPT x 1/4" NPT
9 ZH22X04006
- ZH22X04006 - HYD CONNECTOR
10 ZH32X04000
- ZH32X04000 - 90 ELBOW
- Male
- 30 Degree Fl
- PF 1/4" x PF 1/4"
- O-Ring
- 90
11 ZH32X04006
- ZH32X04006 - 90 ELBOW
- Male
- 30 Degree Fl
- PF 1/4" x PF 3/8"
- O-Ring
12 ZE72X04000
- ZE72X04000 - PLUG
- (PF 1/4) (Incls. O-Ring ZD12P01100)
13 HM83C10030G1
- HM83C10030G1 - BOLT
- Sems
14 LC52S00019P1
- LC52S00019P1 - SENSOR
- Pressure (Low Pressure) (Incls. O-Ring ZD12P01100) (Used for Bucket Digging
- Bucket Dump
- Boom Up
- Boom Down
- Swing
- Arm In
- Arm Out
- Travel LH & RH
- P2 OPT)
