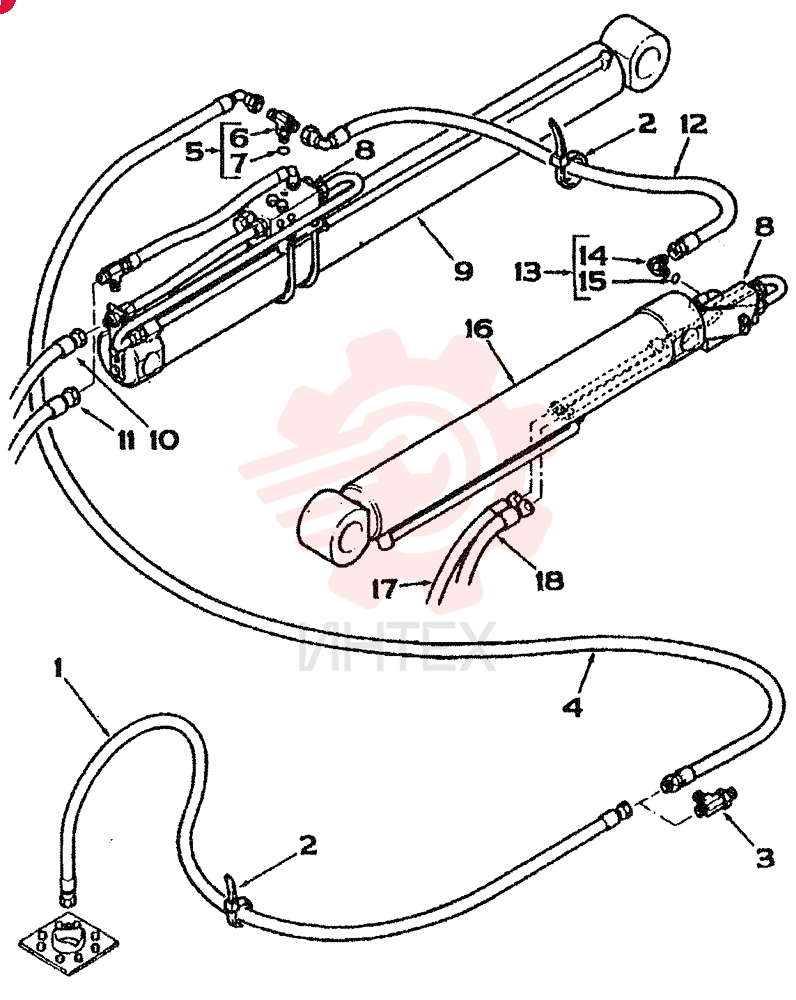

(700) - LOADER BACKHOE (4/99-12/00)
/
HOSE ASSY.

HOSE ASSY.

HOSE ASSY.

1 3516176M92

  • 3516176M92 - HOSE ASSY.
  • HOSE ASSY

2 1664405M1

  • 1664405M1 - CABLE
  • STRAP

3 371725X1

  • 371725X1 - TEE
  • PIECE (WITH HAMMER)

4 3522253M93

  • 3522253M93 - HOSE ASSY.
  • HOSE ASSY

5 358828X91

  • 358828X91 - TEE
  • PIECE (CONSISTS OF REF. 6 & 7)

6 NSS

  • NSS - NOT SOLD SEPARAT
  • TEEPIECE

7 835024M1

  • 835024M1 - O-RING
  • 0-RING

8 3522498M91

  • 3522498M91 - VALVE
  • (SEE PAGE 12-021)

9 NSS

  • NSS - NOT SOLD SEPARAT
  • CYLINDER (DIPPERSTICK CYLINDER) (SEE FIG 13-009)

10 NSS

  • NSS - NOT SOLD SEPARAT
  • HOSE ASSY (SEE FIG 12-015
  • REF. 4)

11 NSS

  • NSS - NOT SOLD SEPARAT
  • HOSE ASSY (SEE FIG 12-015
  • REF. 11)

12 3522252M92

  • 3522252M92 - HOSE
  • ASSY

13 357197X91

  • 357197X91 - ELBOW
  • (CONSISTS OF REF. 14 & 15)

14 NSS

  • NSS - NOT SOLD SEPARAT
  • ELBOW

15 831422M1

  • 831422M1 - GASKET
  • O-RING

16 NSS

  • NSS - NOT SOLD SEPARAT
  • CYLINDER (BOOM CYLINDER) (SEE FIG 13-008)

17 NSS

  • NSS - NOT SOLD SEPARAT
  • HOSE ASSY (SEE FIG 12-015
  • REF. 29)

18 NSS

  • NSS - NOT SOLD SEPARAT
  • HOSE ASSY (SEE PAGE
  • REF. 19)
