(700) - LOADER BACKHOE (4/99-12/00)
/

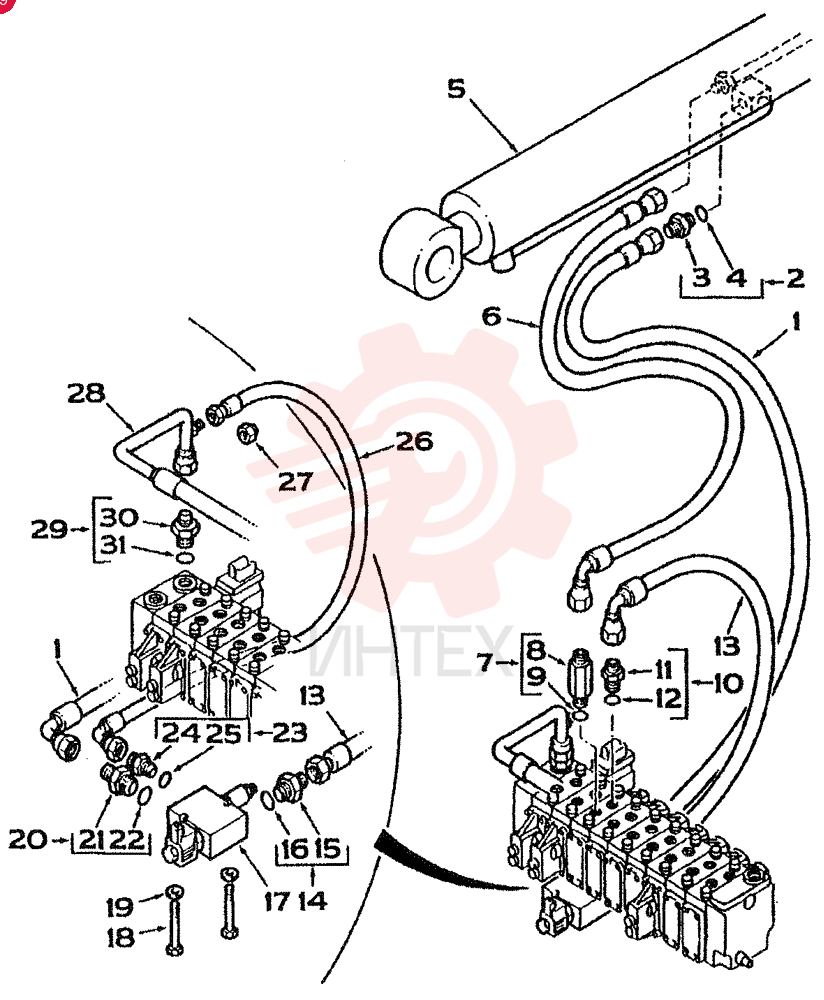

HOSE ASSY.

HOSE ASSY.

HOSE ASSY.

1 3517358M92

  • 3517358M92 - HOSE ASSY.

2 358743X91

  • 358743X91 - CONNECTOR
  • ELEC
  • CONNECTOR (CONSISTS OF REF 3
  • 4)

3 NSS

  • NSS - NOT SOLD SEPARAT
  • CONNECTOR

4 831497M1

  • 831497M1 - O-RING

5 NSS

  • NSS - NOT SOLD SEPARAT
  • CYLINDER (BOOM CYLINDER) (SEE REF 12-012)

6 3517356M92

  • 3517356M92 - HOSE ASSY.
  • HOSE ASSY

7 3522091M91

  • 3522091M91 - CONNECTOR
  • ELEC
  • CONNECTOR (CONSISTS OF REF 8
  • 9)

8 NSS

  • NSS - NOT SOLD SEPARAT
  • CONNECTOR

9 835024M1

  • 835024M1 - O-RING

10 835013M91

  • 835013M91 - UNION
  • CONNECTOR (CONSISTS OF REF 11
  • 12)

11 NSS

  • NSS - NOT SOLD SEPARAT
  • CONNECTOR

12 1882958M1

  • 1882958M1 - O-RING

13 3517290M91

  • 3517290M91 - HOSE ASSY.
  • HOSE ASSY

14 365715X91

  • 365715X91 - ADAPTER
  • CONNECTOR (CONSISTS OF REF 15
  • 16)

15 NSS

  • NSS - NOT SOLD SEPARAT
  • CONNECTOR

16 631674M1

  • 631674M1 - O-RING

17 3517309M91

  • 3517309M91 - VALVE
  • (SEE FIG 12-029)

18 390246X1

  • 390246X1 - BOLT
  • (M8X70)

19 390972X1

  • 390972X1 - WASHER
  • (CONSISTS OF REF 21
  • 22)

20 365715X91

  • 365715X91 - ADAPTER
  • CONNECTOR (CONSISTS OF REF 21
  • 22)

21 NSS

  • NSS - NOT SOLD SEPARAT
  • CONNECTOR

22 631674M1

  • 631674M1 - O-RING

23 358743X91

  • 358743X91 - CONNECTOR
  • ELEC
  • CONNECTOR (CONSISTS OF REF 24
  • 25)

24 NSS

  • NSS - NOT SOLD SEPARAT
  • CONNECTOR

25 831497M1

  • 831497M1 - O-RING

26 3517289M91

  • 3517289M91 - HOSE ASSY.

27 356580X1

  • 356580X1 - CAP

28 3517389M92

  • 3517389M92 - HOSE ASSY.

29 3521564M91

  • 3521564M91 - CONNECTOR
  • ELEC
  • CONNECTOR (CONSISTS OF REF 30)

30 NSS

  • NSS - NOT SOLD SEPARAT
  • CONNECTOR

31 631674M1

  • 631674M1 - O-RING
